7

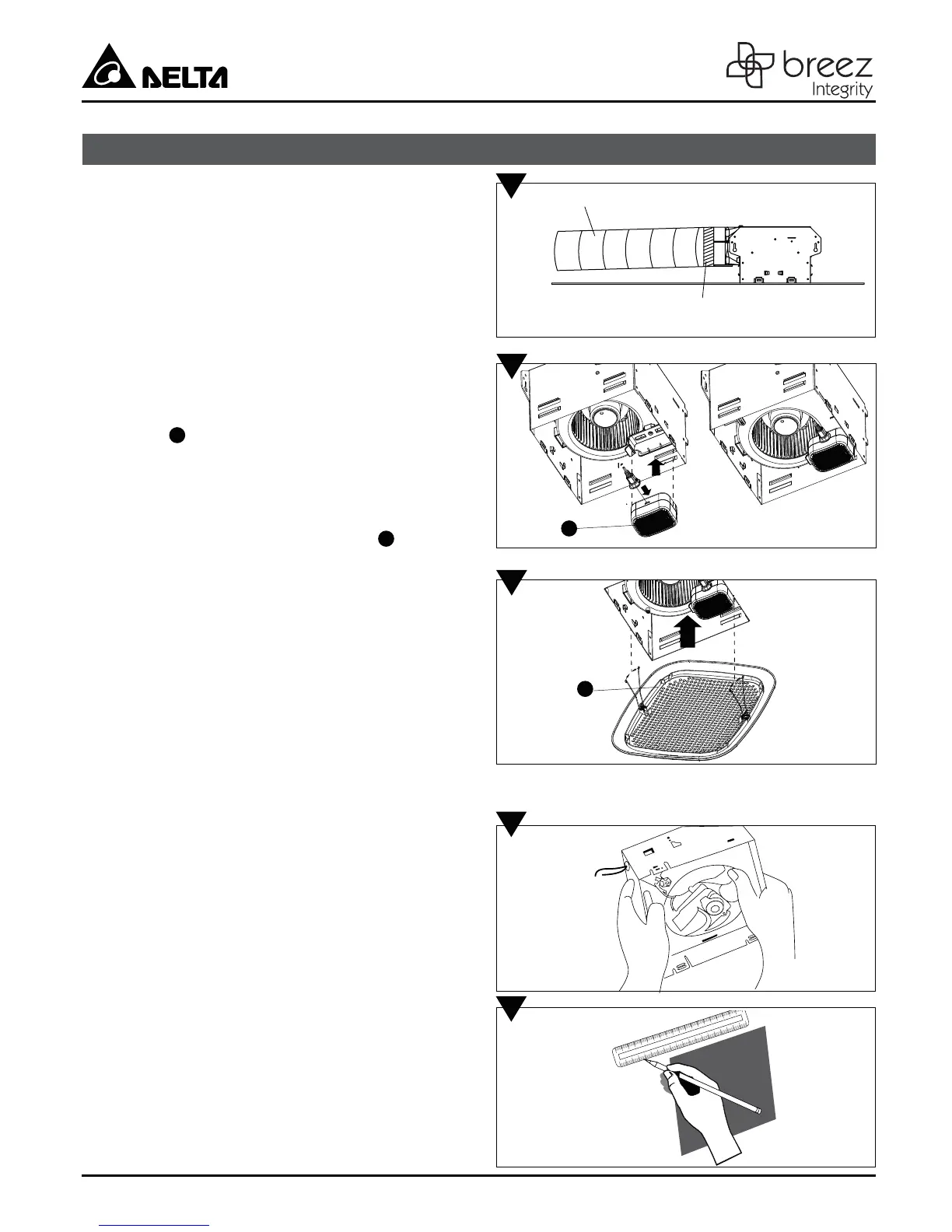

ASSEMBLY INSTRUCTIONS
6
1
2
6. Install a circular 4 in. duct (not included) and
secure it with duct tape or clamps
(neither included).
Finish ceiling work. The ceiling hole should be
aligned with the edge of the fan housing.
7. Plug the Micro USB connector into the speaker
assembly , and secure the speaker assembly
to the holder on the fan unit.
8. Pinch the mounting springs on the grille ,
and insert them into the narrow rectangular slots
inside the fan. Push the grille up toward the
ceiling.
Turn on electricity at the breaker box after
finishing installation.
Turn off power source. Review all safety precautions.
1. Remove existing fan.
2. Measure the opening to ensure it is large enough
to accommodate the new fan body
(7
1/2 in. x 7 1/4 in.).
EXISTING CONSTRUCTION
BEFORE INSTALLATION
8
4 in. duct
Ceiling
Duct tape
or clamp
Note: 7 1/4 inch side of opening should be flush with
the joist.
4
2
7
4
2
Model:
ITG70BT
