Delta ITG70BT - Page 9

9

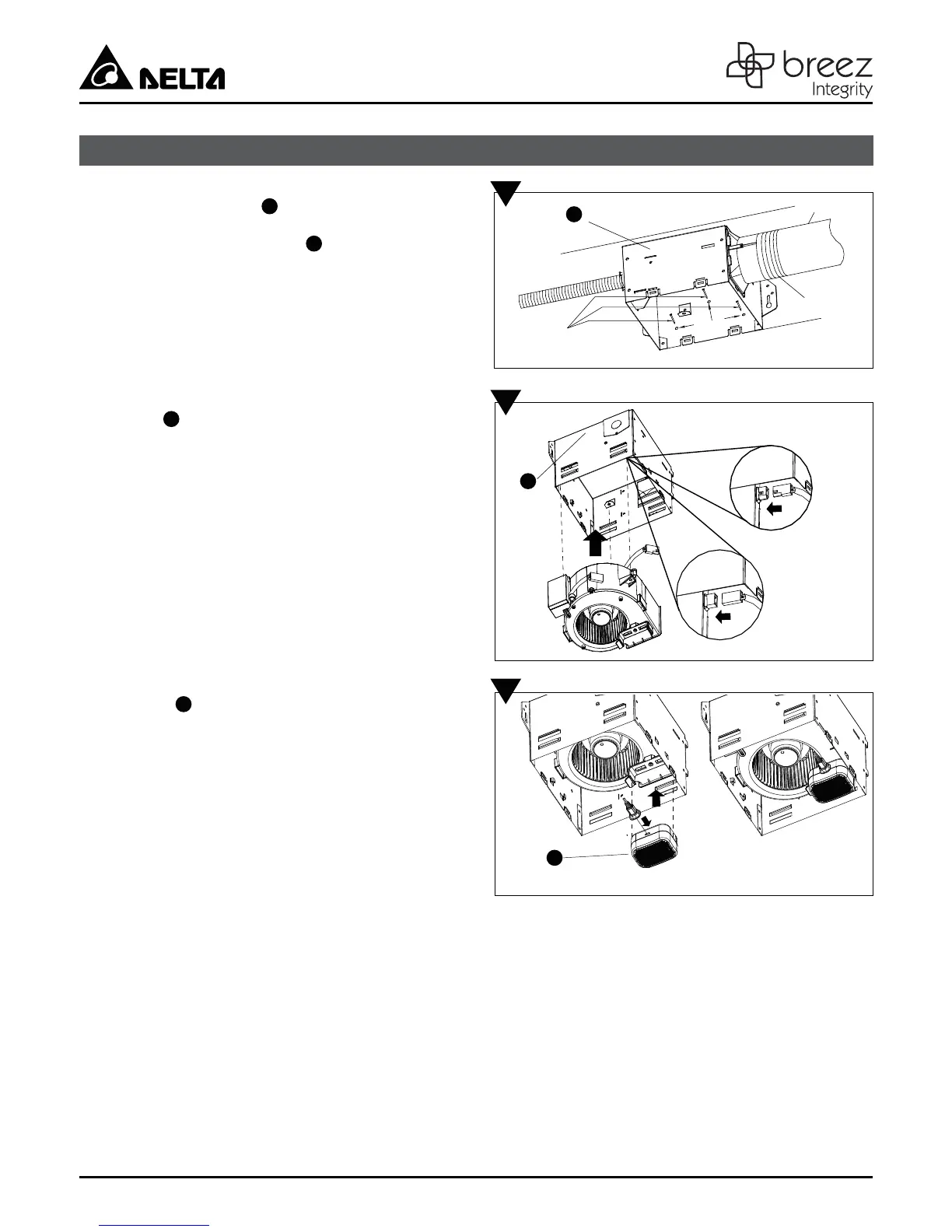

ASSEMBLY INSTRUCTIONS
9.
9
10
11
Joist or wall stud
4 inch duct
Tape
Nail
10.
11.
Mount the fan housing to the joist or stud
using nails (not included) where indicated by
arrows inside the fan housing .
Plug the fan assembly back into the fan
housing .Reattach the fan assembly using the
thress screws removed in step 5.
Plug the Micro USB connector into the speaker
assembly , and secure the speaker assembly
to the holder on the fan unit.
1
1
1
1
1
4
4
SPEAKER CONNECTOR
FAN CONNECTOR
Model: ITG70BT
