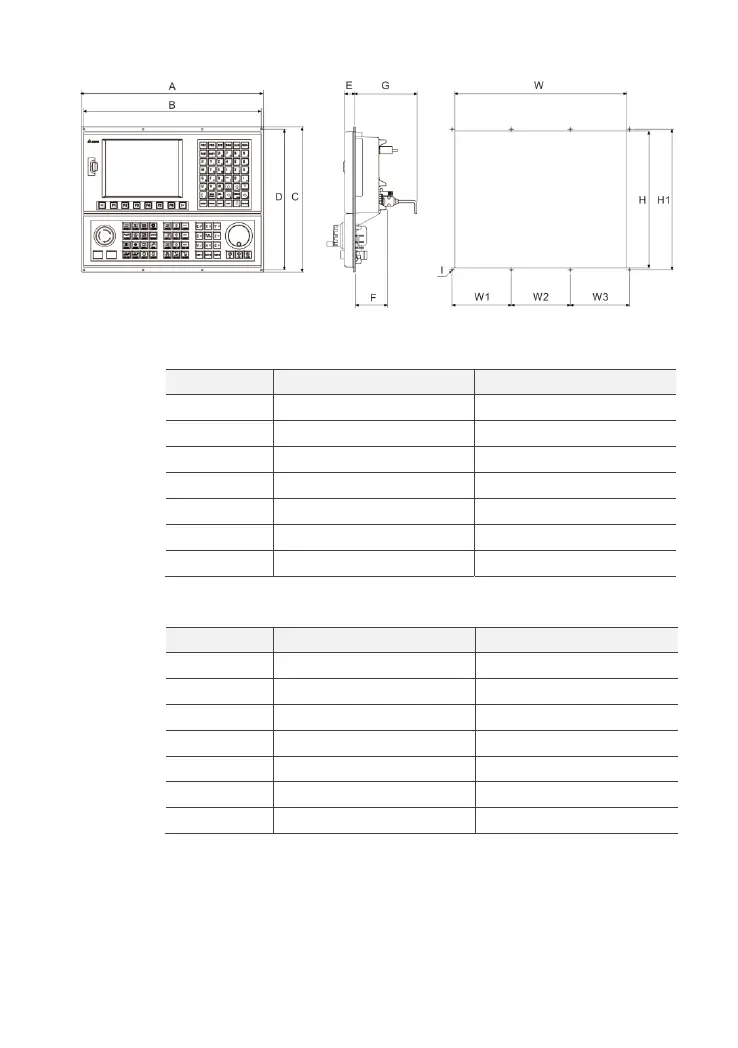

Table of Cut-out/ Appearance Dimensions
Model NC200A-LI-A_ NC200P-LI-A_
A 400 mm 400 mm
B 390 mm 390 mm
C 320 mm 320 mm
D 310 mm 310 mm
E 22 mm 22 mm
F 70 mm 70 mm
G 130 mm(min) 130 mm(min)
Table of Cut-out/ Appearance Dimensions
Model NC200A-LI-A_ NC200P-LI-A_
H
302 ± 0.3 mm 302 ± 0.3 mm
H1 310 mm 310 mm
W
378 ± 0.3 mm 378 ± 0.3 mm
W1 130 mm 130 mm
W2 130 mm 130 mm
W3 130 mm 130 mm
I
Φ4 mm Φ4 mm
