7.2.3 Inverter ID Setting
1. Turn on DC power and wait for the LCD display, then press “Select” button until “
Inverter ID: XX" is shown in the LCD.
2. Press and hold both buttons (“Enter” first, then “Select”) entering setting ID screen,
then release both buttons and set ID by pressing “Select” button, then press “Enter”
button if the ID is correct (ID = 1 ~ 254).
3. Inverter ID is changed and saved.
7.3 LCD flowchart
Pressing any button will enter main menu (Figure 7-3), “Output Energy (today)” is the first
option on the main menu with several other items below as seen in section 7.3.1 ~ 7.3.7.
Setting ID
ID = 254 ?
Setting ID
Exit ?
Setting ID
ID = 1 ?
Setting ID
ID = XX + 1 ?
SEL
SEL
SEL
SEL
(SEL and ENT are pressedsimultaneously
> 3 sec)
Setting ID
ID = XX ?
Setting ID
ID = XX + 1 ?
XX is current ID
ENT
ENT
SEL
SEL
(SEL is pressed >
2 sec)
yes
Setting ID
ID = XX + 10 ?
no
ENT
SEL
Inverter
ID : XX
Inverter
ID : XX

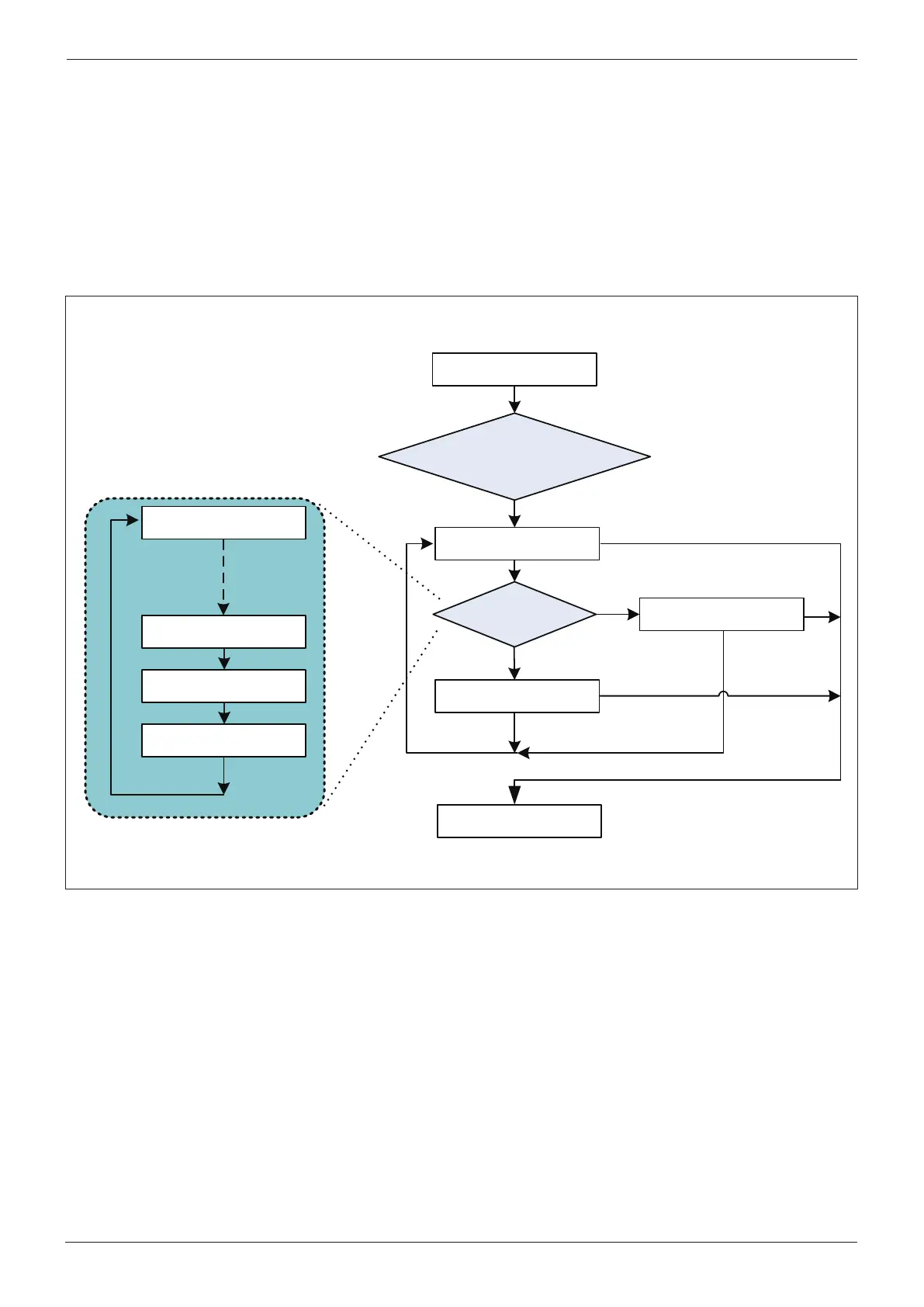

Figure 7-2: Inverter ID Setting
