CAUTION！Machine and equipment damage may occur.
• Make sure to choose proper size for AC cable.

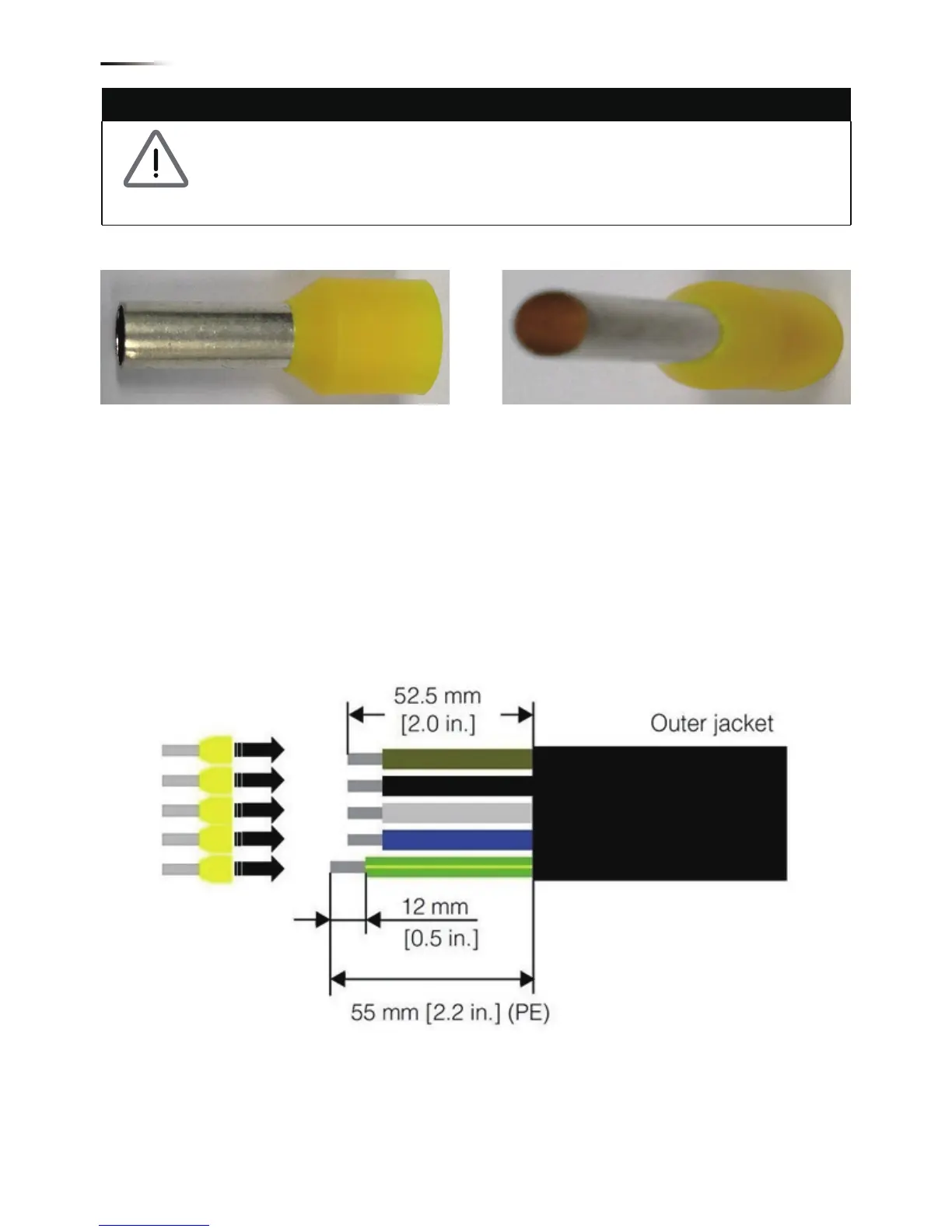

Please choose the terminals as shown in figure 4-2 for wires crimping.
• Failed to follow these instructions may cause AC plug damage.
Figure 4-2 Terminal for wire crimping
Figure 4-3 Striping the wires
Follow the steps below to strip the wires before assembling the AC plug as
shown in Figure 4-3:
• Remove 55 mm (2.2 inch) of AC cable outer jacket.
• Trim the L1, L2, L3, and N wire to 52.5 mm (2.0 inch).
• Strip 12 mm (0.5 inch) of insulation from all wires ends.
• Crimp terminals for all wires.
16
Wiring
