Delta RPI M6A Installation Guide

17
Installation guide for solar inverters RPI M6A M8A M10A EU V5 EN 2022-08-15

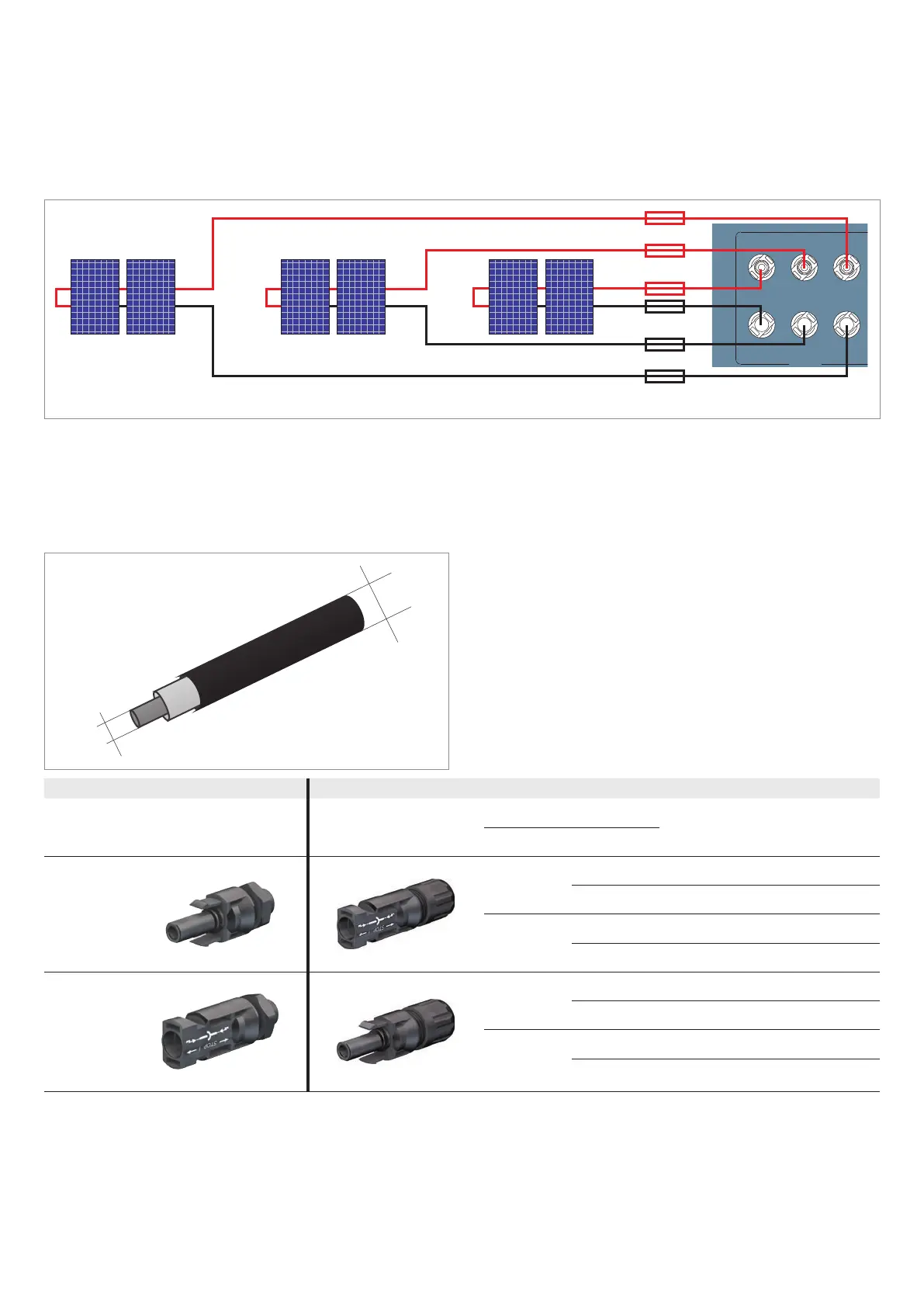

Protective devices
When selecting the necessary protective devices (e.g.
fuses) take into account the Maximum reverse current of
the solar modules.
DC INPUT
DC 1
+
–
+
–
+
–
+
–
1
DC plugs and DC cables
The DC plugs for all DC connections are supplied with the
inverter.
If you want to order more or need a di󰀨erent size, see the
information in the following table.
a
b
DC connections on the inverter DC plugs for DC cables
a b
Multi-contact
mm
2
mm
DC–
^
1,5 / 2,5
3-6 32.0010P0001-UR
1)
5.5-9 32.0012P0001-UR
4/6
3-6 32.0014P0001-UR
5.5-9 32.0016P0001-UR
2)
DC+
1,5 / 2,5
3-6 32.0011P0001-UR
1)
5.5-9 32.0013P0001-UR
4/6
3-6 32.0015P0001-UR
5.5-9 32.0017P0001-UR
2)
1) Included in the scope of delivery of the M6A / M8A
2) Included in the scope of delivery of the M10A
