6

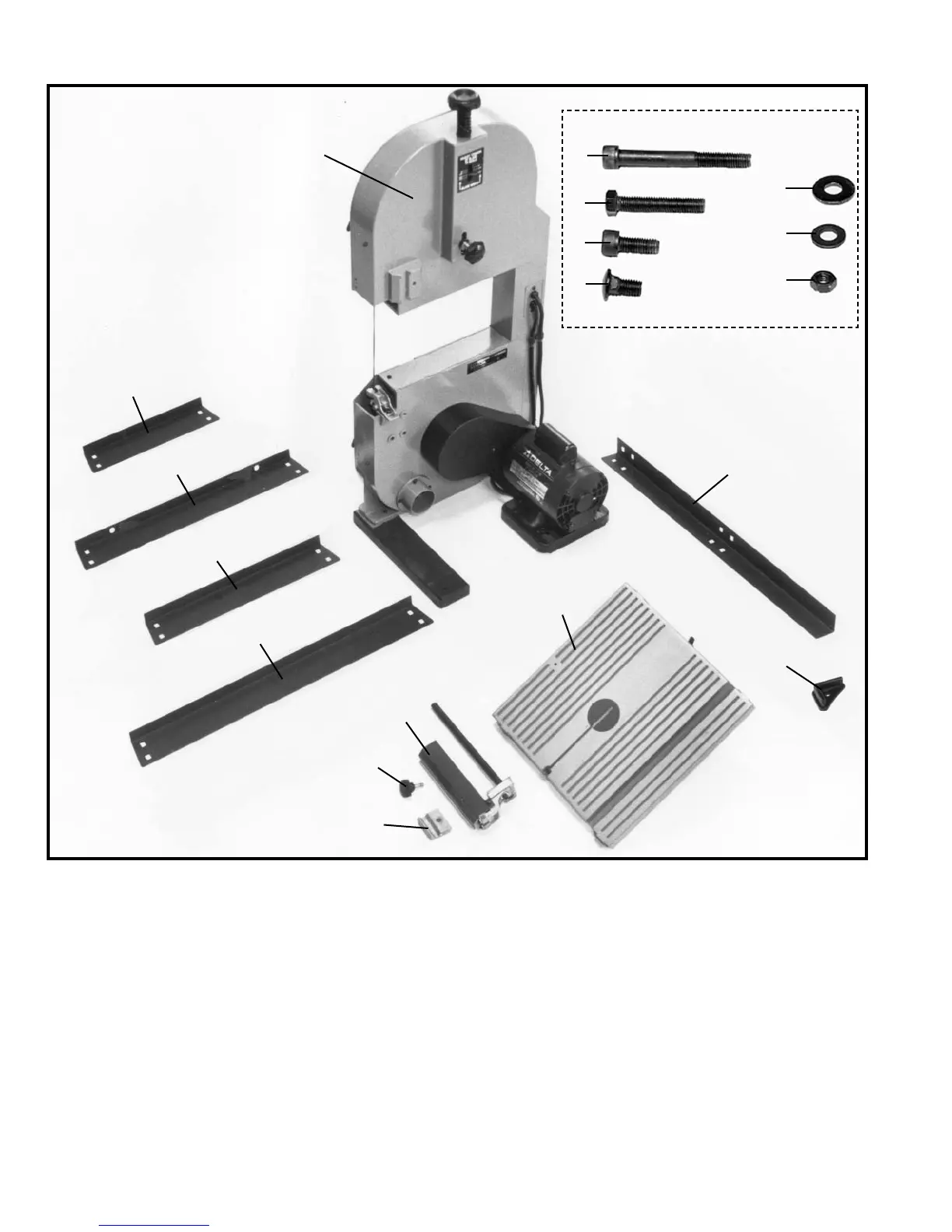

BAND SAW PARTS
Fig. 2
1
2
3
4
5
6
7
8
9
10
1. Band Saw
2. 12¾" Upper Brace (2)
3. 21½" Upper Brace (2)
4. 17" Lower Brace (2)
5. 25¾" Lower Brace (2)
6. 26¼" Leg (4)
7. Blade Guide Assembly
8. Blade Guide Assembly Lock Knob
9. Blade Guide Assembly Lock Plate
10. Table Assembly
11. Plastic Foot (4)
12. M8x1.25x70mm Hex Socket Head Screw (1)
13. M8x1.25x45mm Hex Head Screw (4)
14. M8x1.25x20mm Hex Socket Head Screw (2)
15. M8x1.25x16mm Carriage Head Screw (32)
16. 3/8" Flat Washer (32)
17. M8.4 Flat Washer (9)
18. M8x1.25 Hex Nut (34)
11
12
13
14
15
16
17
18
