7
ASSEMBLY
WARNING: FOR YOUR OWN SAFETY, DO NOT CONNECT THE MACHINE TO THE POWER SOURCE UNTIL THE
MACHINE IS COMPLETELY ASSEMBLED AND YOU READ AND UNDERSTAND THE ENTIRE INSTRUCTION
MANUAL.

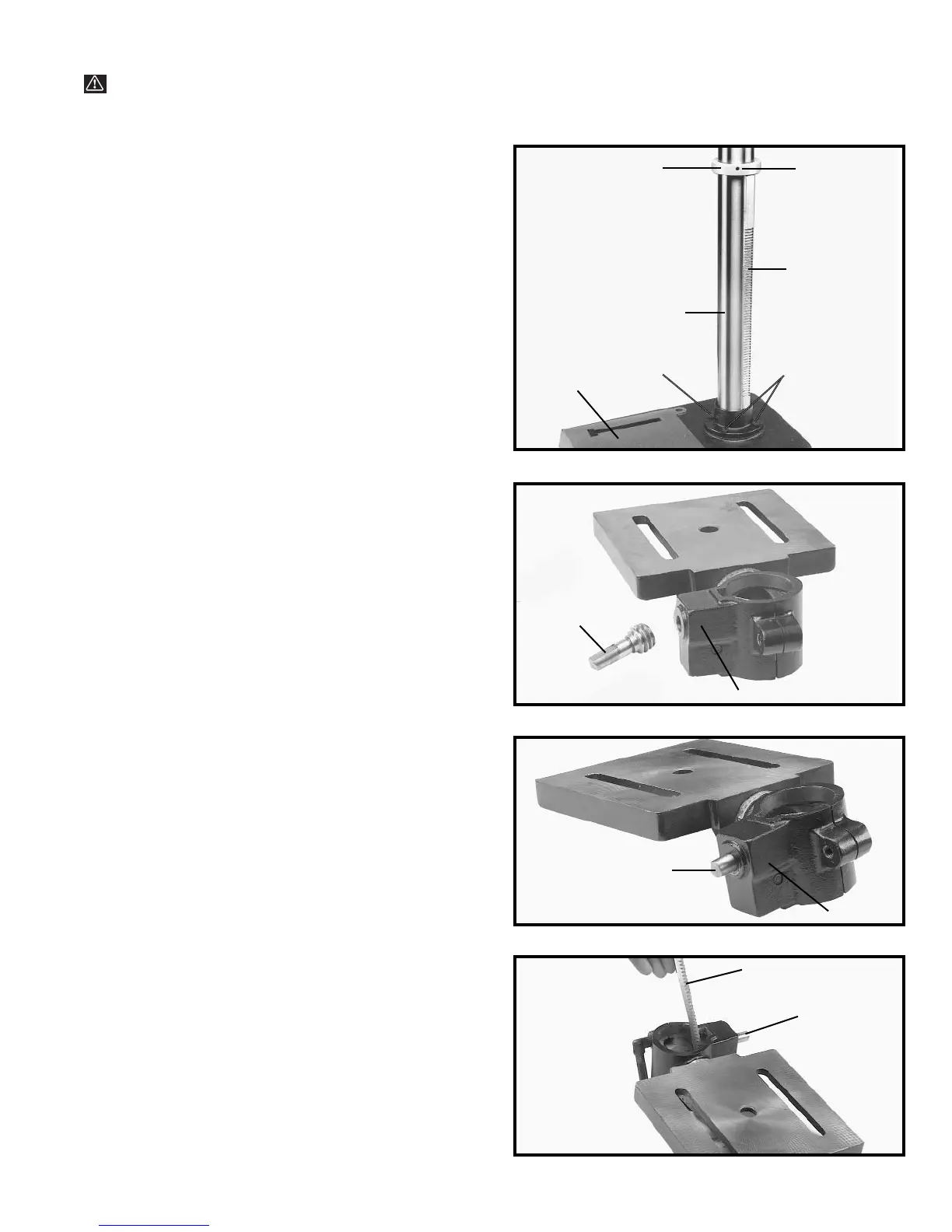

1. Assemble the column (A) Fig. 3, to the base (B) using
the four screws, three of which are shown at (C). Loosen
set screw (D) and remove ring (E) and raising rack (F).
Fig. 3
Fig. 4
Fig. 5
G
H
H
G
Fig. 6
F
G
2. Make certain worm gear (G) Figs. 4 and 5, is in place
in table bracket (H) as shown.
3. Insert raising rack (F) Fig. 6, which was removed in
STEP 1, into groove in table bracket making sure teeth
of worm gear (G) located inside table bracket are
engaged with teeth of raising rack (F).
E
D
F
A
B
C
C
