Delta TP04G-AL2 - Panel Installation Guide

- 4 -

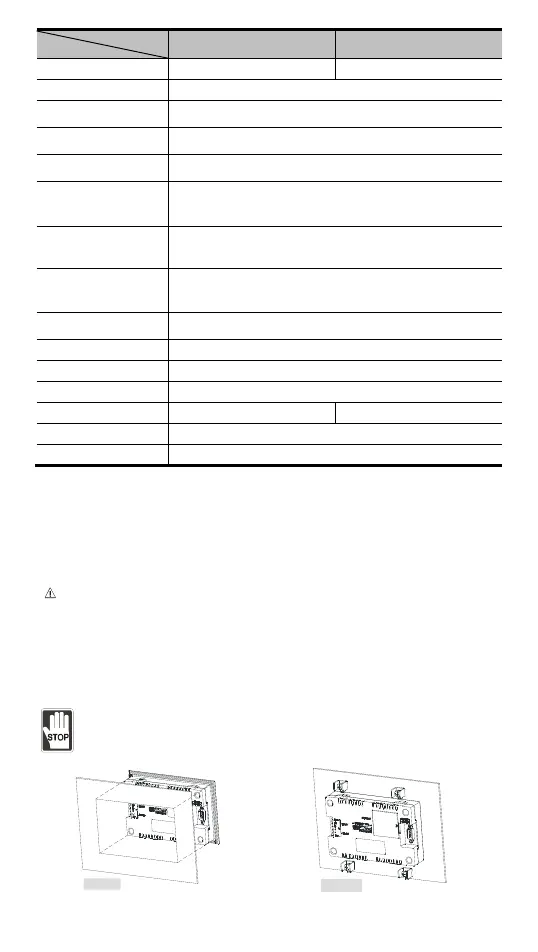

Model
Spec.
TP04G-AL TP04G-AL2
RAM of system 10K Byte 16K Byte
External input power 24V (1.7W Max.)
Waterproof class of front
panel
IP66 / NEMA4X / UL Type4X indoor use only
Operating temperature
for hardware
0°C ~ 50°C; 20% - 90% RH (non-condensing)
Storage temperature for
hardware
-20°C ~ 60°C
Vibration
IEC61131-2, IEC 68-2-6 (TEST Fc)
5Hz≦f＜8.4Hz Continuous: 3.5mm
8.4Hz≦f≦150Hz Continuous: 1.0g
Shock
IEC61131-2, IEC 68-2-27 (TEST Ea)
15g peak, 11ms duration, half-sine, three shocks in each direction
per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Radiated emission
CISPR11, Class A
Frequency: 30~230MHz, Limits: 40dB uV/m;
Frequency: 230MHz~1GHz, Limits: 47dB uV/m
Radiated
electromagnetic field
EN61000-4-3, Frequency: 80~2000MHz, Limits: 10V/m
Electrostatic discharge EN61000-4-2, Air Discharge: 8KV, Contact Discharge: 4KV
Fast transient burst EN61000-4-4, Power Line: 1KV, Communication I/O: 500V
Altitude 0~2000 meters
Weight 268g 270g
Dimensions 163.6×108.6×37mm (Width(W) × Height(H) × Deep(D))
Cooling method Natural air cooling
 Installation
For normal installation, please insert TP04G-AL/AL2 to the opening hole on the panel
then tighten the screws. If firmer mounting is required, please use the mounting fixed
supports and screws in the accessory package which is packed together with
TP04G-AL/AL2. Insert the hooks of fixed supports into the fixing holes on the back then
tighten the screws. Please refer to figure 6 and figure 7 below for this installation.
( The screw torque should be 4.75 (kg-cm). DO NOT exceed this specification when
tightening screws, otherwise TP04G-AL/AL2 may be damaged. If the fixed supports
are not installed well, Delta will not guarantee the waterproof rating.)
Notes: Only the front panel is guaranteed by ingress protection rating. The control
panel itself must comply with the testing conditions required by the applied ingress
protection rating.
Do not install and mount TP04G-AL/AL2 in the following environment:
 A location subjected to Airborne dust, metallic particles, oily smoke, corrosive
or flammable gases and liquids.
 A location where temperature and humidity factors exceed the specifications.
 A location where vibration and shock factors exceed the specifications.
Figure6
Figure7
