Delta TP70P User Manual

Chapter 2 Writing Programs

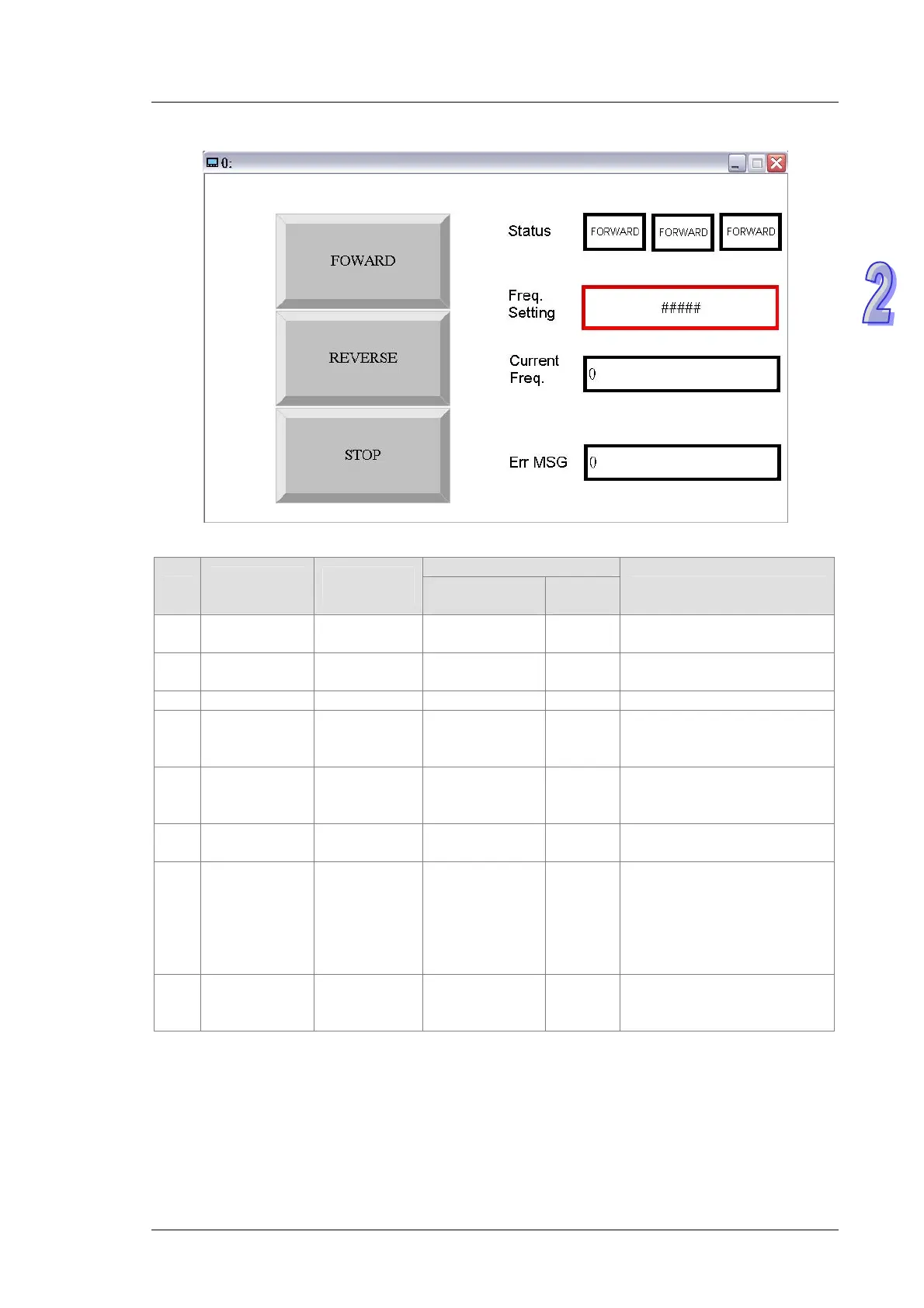

The users can complete the page shown below in the way described above.
Setting the parameters of objects:
Related device
Item
Object
description
Button/Objec
t type
Communication
method
Device
address
Other settings
1
Forward
rotation control
Push On/Off
Internal PLC M0 -
2
Backward
roation control
Push On/Off
Internal PLC M1 -
3 Stop control
Momentary
Internal PLC M2 -
4
Forward
rotation
indicator
Multi-State
Bitmap/Lable
Internal PLC Y0
Background color (1/0):
Green/White
5
Backward
rotation
indicator
Multi-State
Bitmap/Lable
Internal PLC Y1
Background color (1/0):
Yellow/White
6 Stop indicator
Multi-State
Bitmap/Lable
Internal PLC M3
Background color (1/0):
Red/White
7
Rotational
speed input
Numeric
Input
COM3, station
address 1
$2001
In the
Value Setting
section:
Integer Number
: 3
Decimal Number
: 2
In the
Limit Setting
section:
Max Value
: 600
Min Value
: 15
8
Current
rotational
speed
Numeric/ASC
II Dispaly
COM3, station
address 1
$2102 -
2-13
