Delta VFD-A Series - Appendix C: Dimensions; VFD Series Dimensions

70
APPENDIX
C
Dimensions

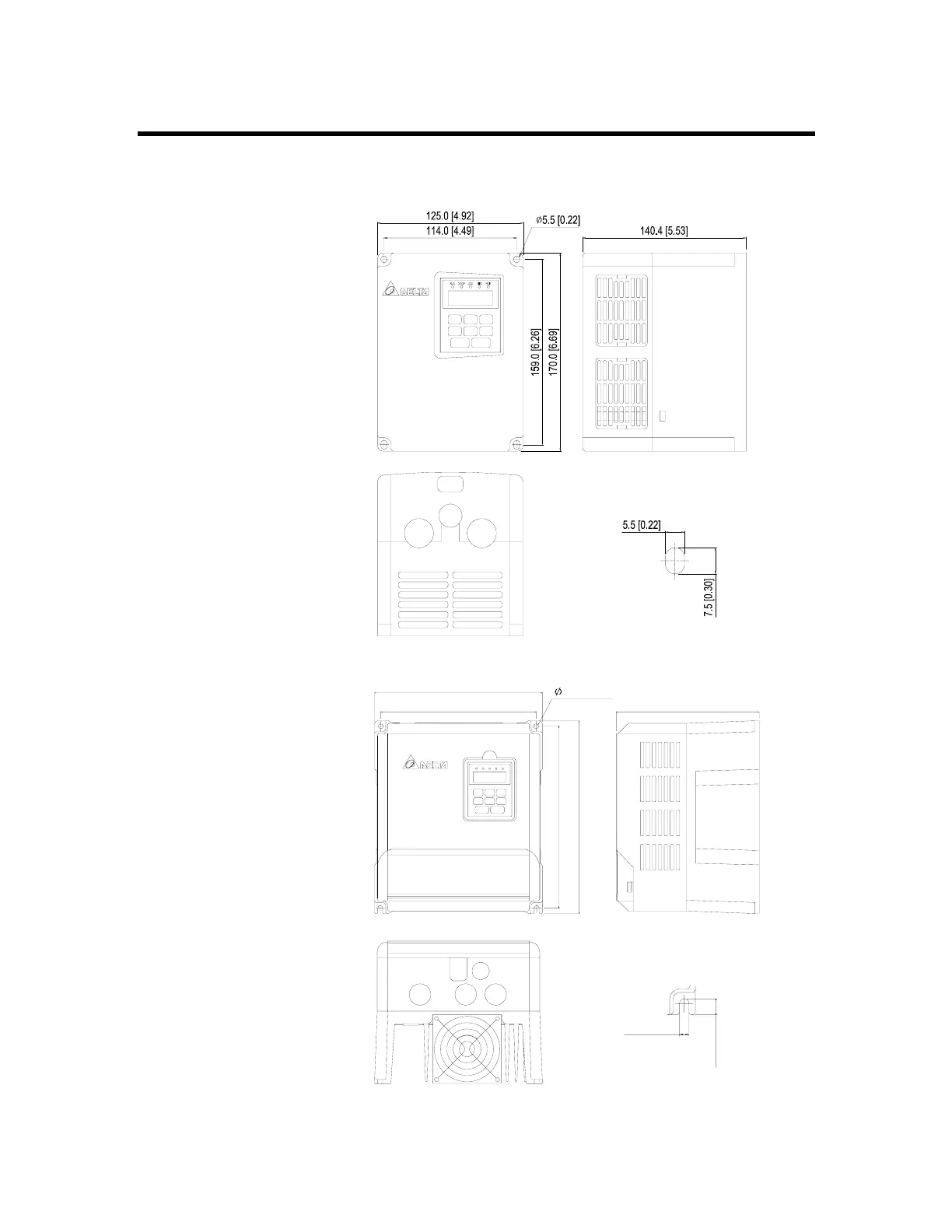

181.5 [7.15]
196.0 [7.72]
213.0 [8.39] 226.0 [8.90]
5.5 [0.22]
167.0 [6.57]
5.5 [0.22]
9.3 [0.36]
VFD007A21A/H
VFD007A23A/H
VFD007A43A/H
VFD015A21A/H
VFD015A23A/H
VFD015A43B/H
Unit: mm
VFD015A43A
VFD022A21A/H
VFD022A23A/H
VFD022A43A
VFD037A23A/H
VFD037A43A/H
Unit: mm [inches]
