Chapter 2 Installation and Wiring_VFD-B Series
2-32
Revision 10/2005, BE13, SW V4.08

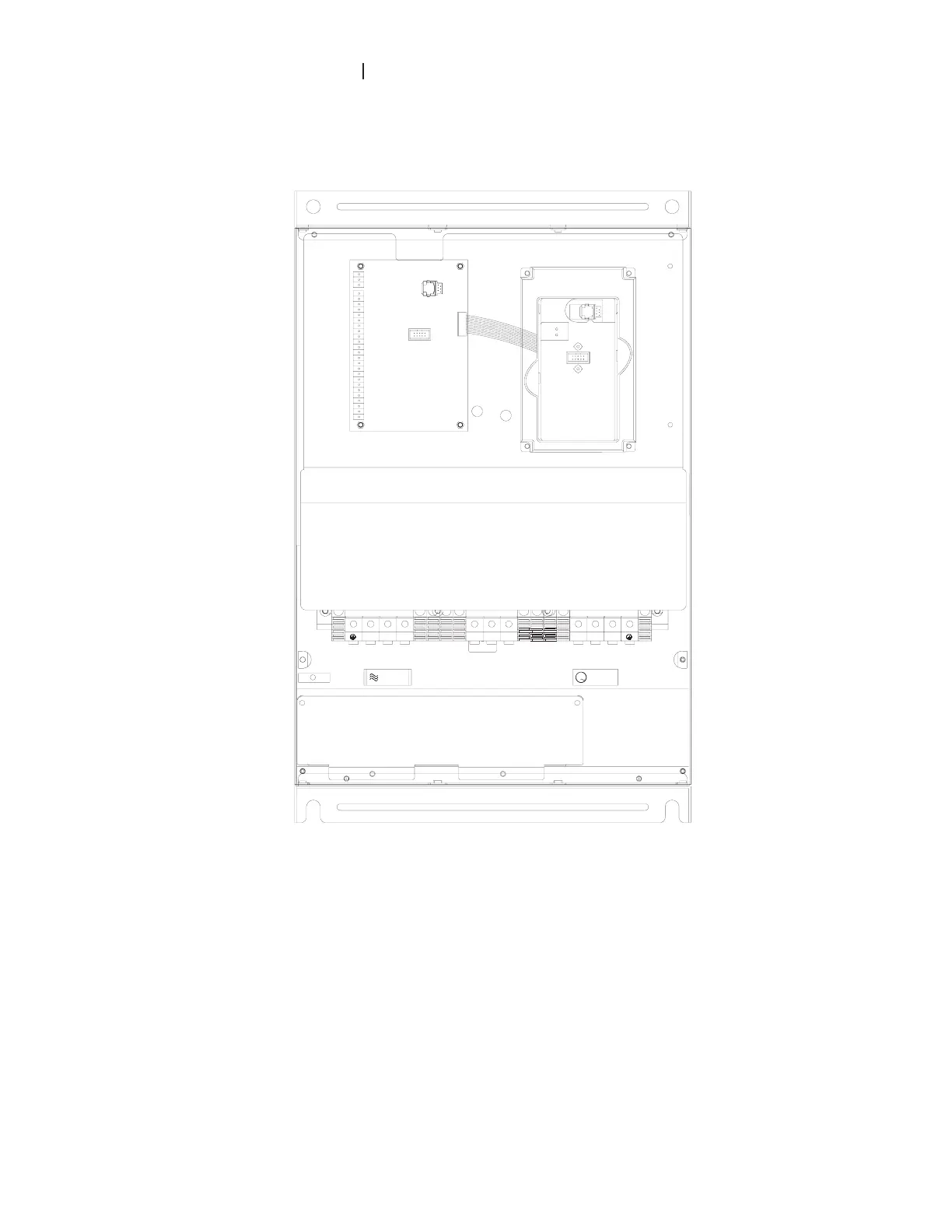

40 HP to 60 HP (30 to 45kW) 460V (VFD300B43A, VFD370B43A, VFD450B43A)
40 HP to 60 HP (30 to 45kW) 575V (VFD300B53A, VFD370B53A, VFD450B53A)
R/L1
+1
+2
-
S/L2 T/L3 U/T1 V/T2 2/T3
POWER
IM
MOTOR
3
CHARGE
POWER
ALARM
Control Terminal
Torque: 4Kgf-cm (3 in-lbf)
Wire: 12-24 AWG (3.3-0.2 mm
2
)
Power Terminal
Torque: 58.7kgf-cm (50.9 in-lbf) max.
Wire Gauge: 2-4AWG (33.6-21.2 mm
2
)
Wire Type: Stranded copper only, 75qC
To Next Page
