Chapter 2 Installation and Wiring_VFD-B Series
Revision 10/2005, BE13, SW V4.08 2-27

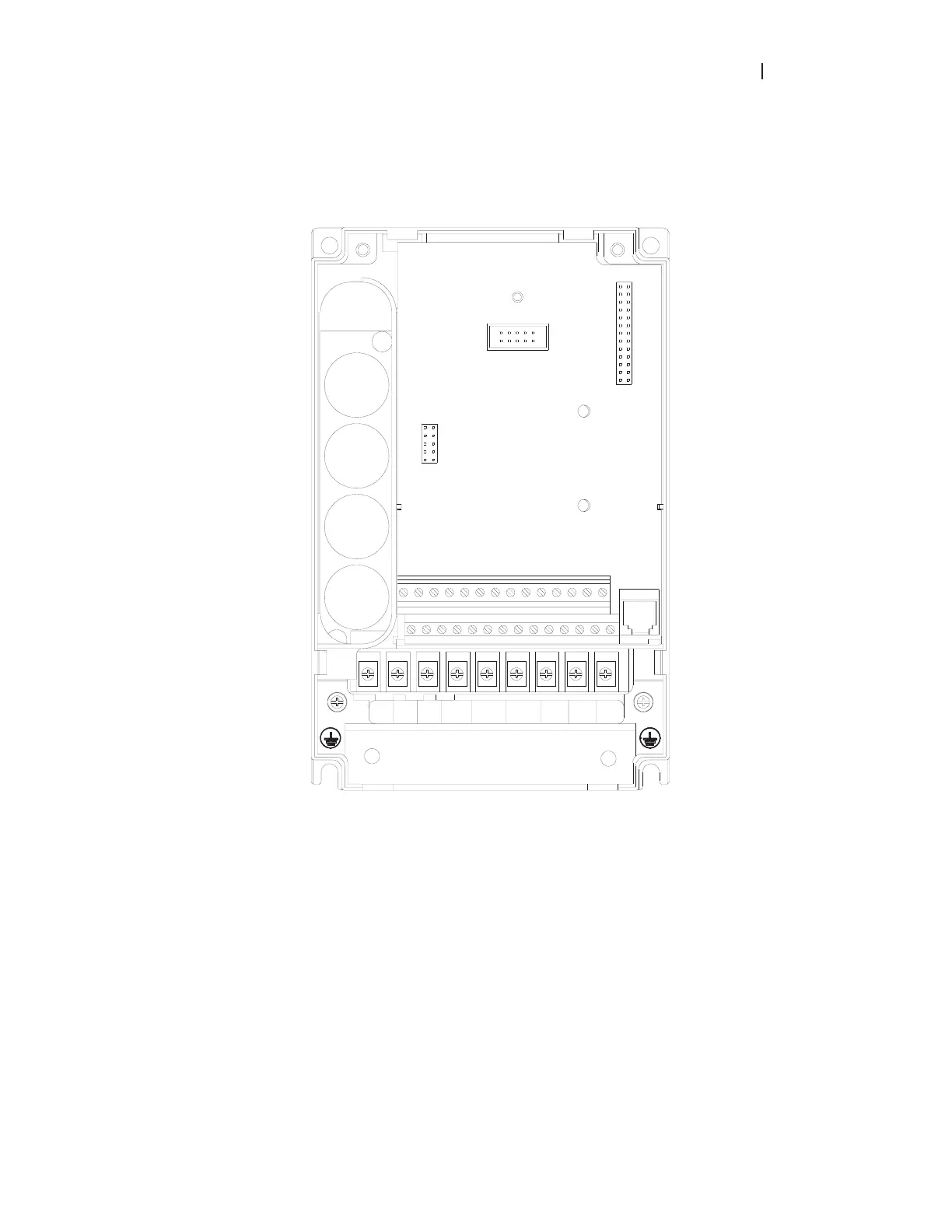

2.4.5 Main Circuit Terminals
1HP to 3HP (0.75 to 2.2kW)
VFD007B21A/23A/43A/53A, VFD015B21A/21B//23A/23B/43A/53A, VFD022B23B/43B/53A
L1
/
T
S
/
/
U
V
W
/
/
/
T3
T2
T1
+2
/
B1
R
L2
L3
+1 B2
Control Terminal
Torque: 4Kgf-cm (3 in-lbf)
Wire: 12-24 AWG (3.3-0.2 mm
2
)
Power Terminal
Torque: 18 kgf-cm (15.6 in-lbf)
Wire Gauge: 10-18 AWG (5.3-0.8 mm
2
) stranded wire, 12-18 AWG (3.3-0.8 mm
2
) solid wire
Wire Type: Copper only, 75qC
To Next Page
