Chapter 7 Optional AccessoriesCP2000
7-122

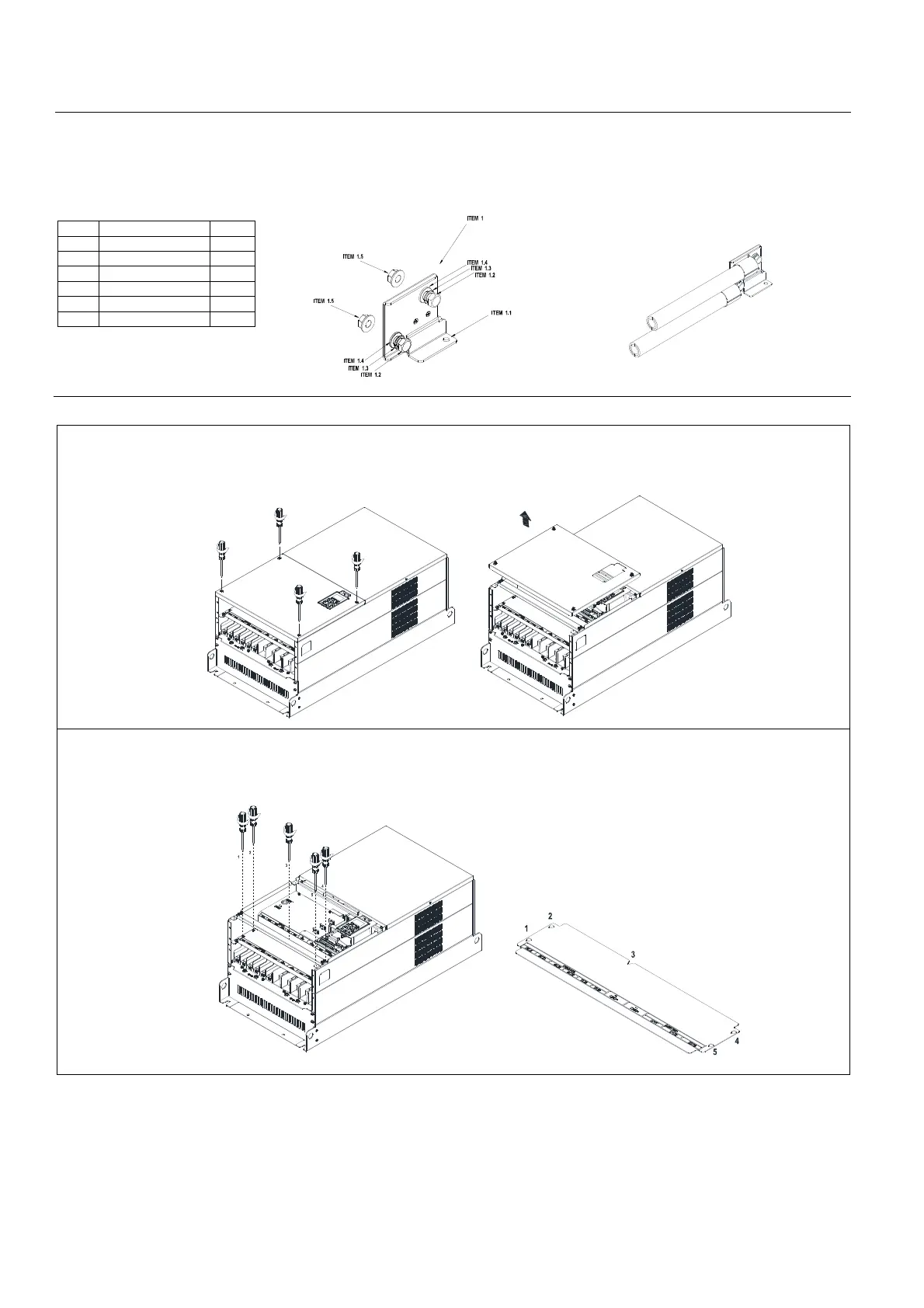

7-11 Power Terminal Kit
『MKC-PTCG』 (Applicable for Frame G models-VFDXXXCPXXA)
Applicable model
VFD2200CP43A-00/-21; VFD2800CP43A-00/-21; VFD2500CP63A-00/-21; VFD3150CP63A-00/-21
(The MKC-PTCG is optional for the above models, after installation, the 12 pulse will be 6 pulse.)
Accessories
Item Description Q’ty
1 Copper Assy. 3
1.1 Copper 3
1.2 Screw M12*25L 6
1.3 Spring 6
1.4 Washer 6
1.5 Nuts 6
Diagram of power terminal connection
M12 Torque: 408 kg-cm / [354.1 lb-in] / [39.98 Nm]
『MKC-PTCG』Installation
1. Loosen the 4 screws on the cover, as shown in the following figure. Screw Torque: 12–15 kg-cm / [10.4–13
lb-in] / [1.2–1.5 Nm]
2. Remove the 5 screws from the FR4 board, as shown in the following figure. (The FR4 board is not needed
after the installation of the power terminal kit). Screw Torque: 12–15 kg-cm / [10.4–13 lb-in] / [1.2–1.5 Nm]
FR4 Board
To Next Page
