8-9 CMC-EIP01 -- Communication card, EtherNet/IP
8-9-1 Features
1. Supports Ethernet/IP and Modbus TCP protocol
2. User-defined corresponding parameters (EIP V1.06 and above)
3. Simple firewall function for IP Filter
4. MDI/MDI-X auto-detect
5. Baud rate: 10/100 Mbps auto-detect mail alarm
8-9-2 Product Profile

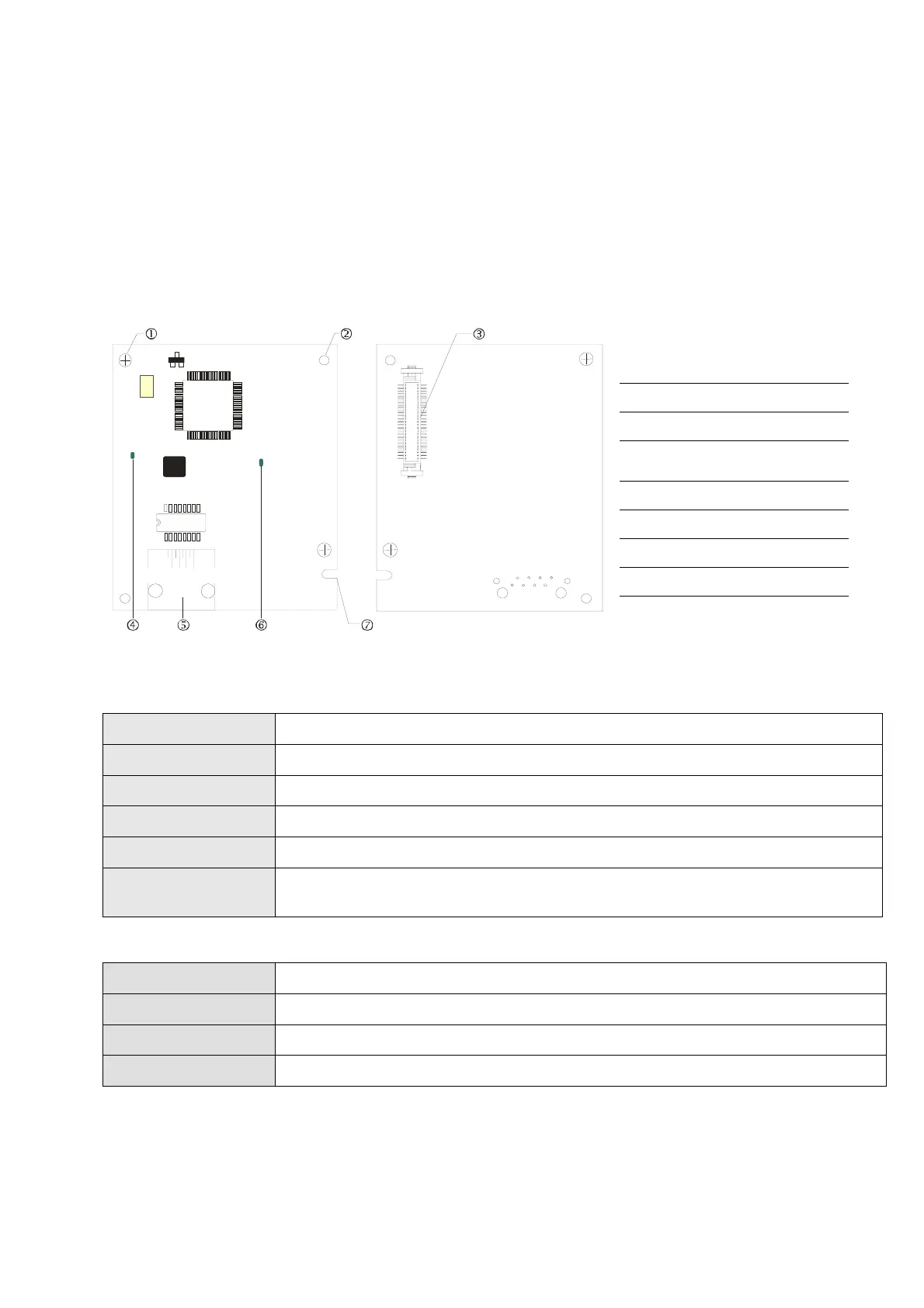

[Figure1]
1. Screw fixing hole
2. Positioning hole
3. AC motor drive connection
port
4. LINK indicator
5. RJ45 connection port
6. POWER indicator
7. Fool-proof groove
8-9-3 Specifications
Network Interface
Interface RJ45 with Auto MDI/MDIX
Number of ports 1 Port
Transmission method
IEEE 802.3, IEEE 802.3u
Transmission cable
Category 5e shielding 100M
Transmission speed 10/100 Mbps Auto-Detect
Network protocol ICMP, IP, TCP, UDP, DHCP, BOOTP, SMTP, EtherNet/IP, Modbus TCP
Electrical Specification
Weight 25 g
Insulation voltage 500 V
DC
Power consumption
0.8 W
Power supply voltage
5 V
DC
