Chapter 10 Digital KeypadCP2000
10-22
Other display

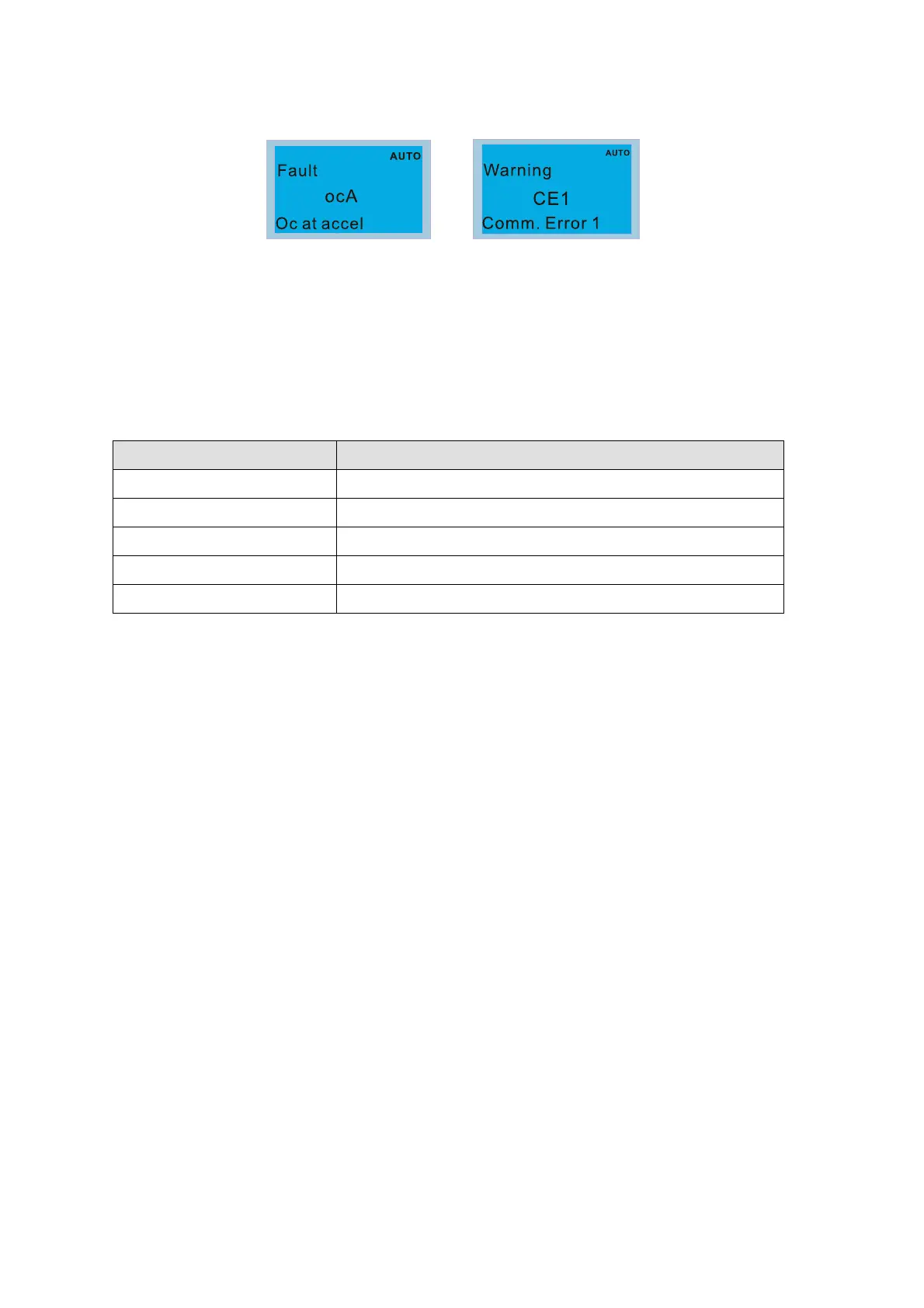

When a fault occurs, the menu displays:
1. Press
STOP / RESET button to reset the fault code. If the drive has still no response, contact local distributor or
return to the factory. To view the fault DC bus voltage, output current and output voltage, press “MENU”“Fault
Record”.
2. After resetting, if the screen returns to main page and shows no fault after pressing ESC, the fault is cleared.
3. When fault or warning message appears, backlight LED will blink until the fault or the warning is cleared.
Optional accessory: RJ45 Extension Lead for Digital Keypad
Part No. Description
CBC-K3FT RJ45 extension lead, 3 feet (approximately 0.9 m)
CBC-K5FT RJ45 extension lead, 5 feet (approximately 1.5 m)
CBC-K7FT RJ45 extension lead, 7 feet (approximately 2.1 m)
CBC-K10FT RJ45 extension lead, 10 feet (approximately 3 m)
CBC-K16FT RJ45 extension lead, 16 feet (approximately 4.9 m)
Note: When you need to buy communication cables, buy non-shielded, 24 AWG, 4 twisted pair, 100 ohms
communication cables.
