Chapter 3 UnpackingCP2000
3-25
3-2 The Lifting Hook

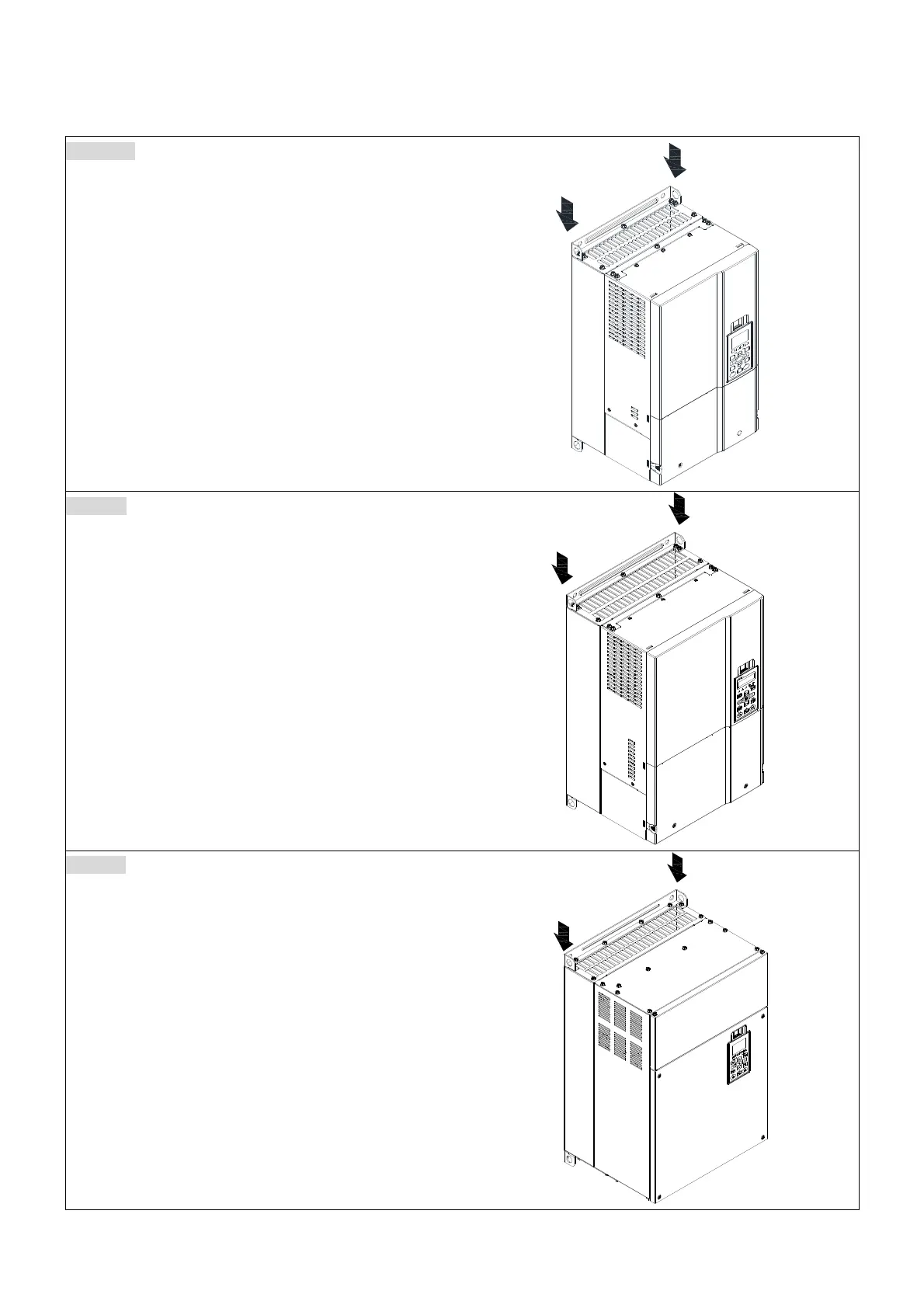

The arrows indicate the location of the lifting holes of frame D to H, as shown in figure below:
Frame D0
Applicable models:
VFD450CP43S-00; VFD550CP43S-00;
VFD450CP43S-21; VFD550CP43S-21
D0
Frame D
Applicable models:
VFD370CP23A-00; VFD450CP23A-00;
VFD750CP43B-00; VFD900CP43A-00;
VFD450CP63A-00; VFD550CP63A-00;
VFD370CP23A-21; VFD450CP23A-21;
VFD750CP43B-21; VFD900CP43A-21;
VFD450CP63A-21; VFD550CP63A-21
D
Frame E
Applicable models:
VFD550CP23A-00; VFD750CP23A-00;
VFD900CP23A-00; VFD1100CP43A-00;
VFD1320CP43B-00; VFD750CP63A-00;
VFD900CP63A-00; VFD1100CP63A-00;
VFD1320CP63A-00; VFD550CP23A-21;
VFD750CP23A-21; VFD900CP23A-21;
VFD1100CP43A-21; VFD1320CP43B-21;
VFD750CP63A-21; VFD900CP63A-21;
VFD1100CP63A-21; VFD1320CP63A-21
E
D0
D
E
Figure 3-78
Figure 3-79
Figure 3-80
