Chapter 5 Main Circuit TerminalsCP2000
5-5

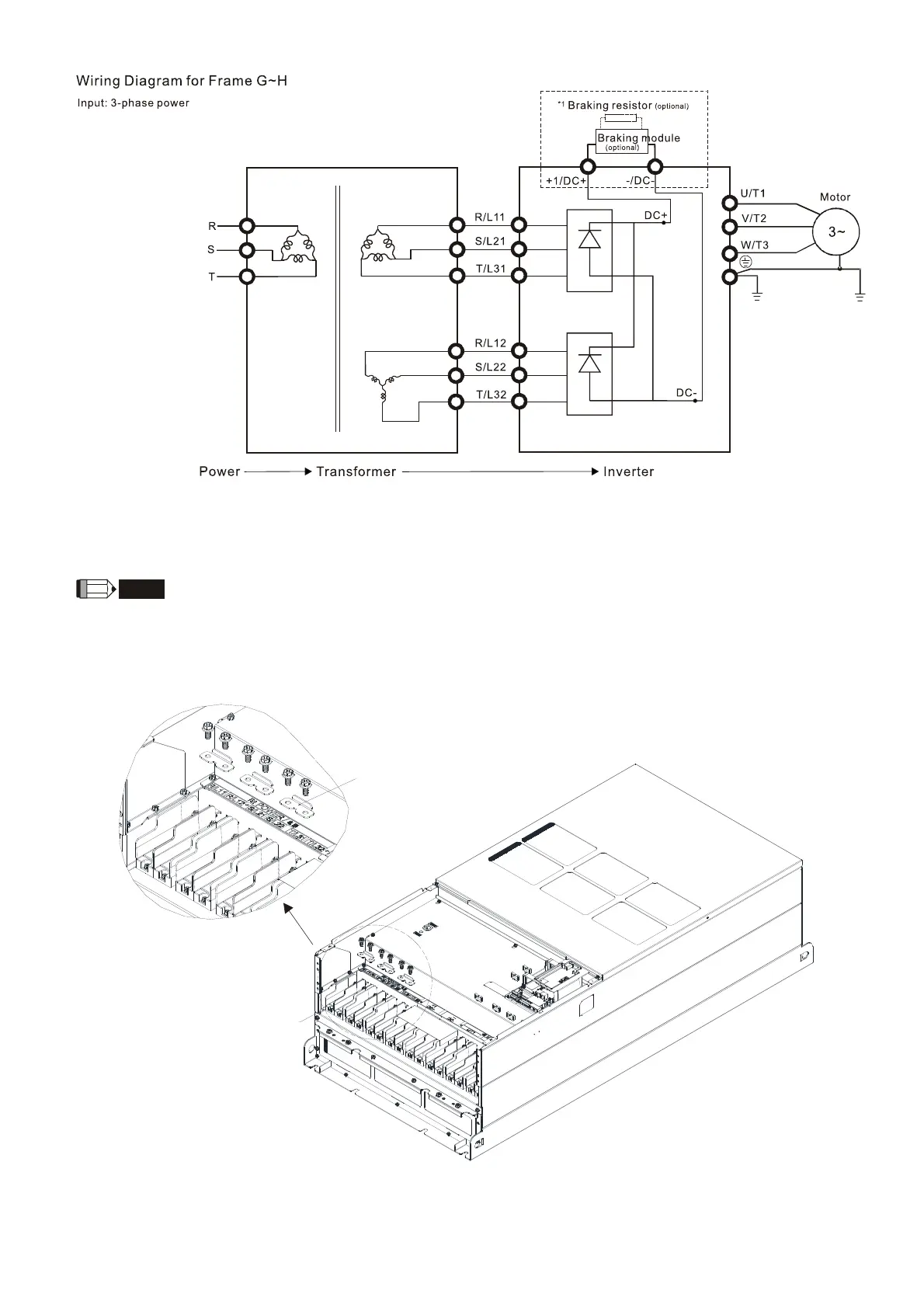

Figure 5-7
*1 Please refer to Section 7-1 for brake units and resistors selection
Note: When wiring for 12 Pulse Input, please strictly follow above wiring diagram.
NOTE
If the wiring between motor drive and motor is over 75 meters, please refer to Section 7-4 Specifications of limits
for motor cable length.
Please remove short circuit plate of Frame G and H if 12 pulse is implemented. Before implementing 12 pulse,
consult Delta for more detail.
Figure 5-8
Fasten the screw after the copper is removed.
Screw torque: 100–110 kg-cm / [86.8–95.5 lb-in.] / [9.8–10.8 Nm]
Detail A
See
Detail A
To Next Page
