Chapter 6 Control TerminalsC2000 Plus
6-7
Frame H
Applicable models: VFD2800C43A-00; VFD2800C43C-21; VFD3150C43A-00; VFD3150C43C-21;
VFD3550C43A-00; VFD3550C43C-21; VFD4000C43A-00; VFD4000C43C-21;
VFD4000C63B-00; VFD4500C43A-00; VFD4500C43C-21; VFD4500C63B-00;
VFD5000C43A-00; VFD5000C43C-21; VFD5600C43A-00; VFD5600C43C-21;
VFD5600C63B-00; VFD6300C63B-00
Screw torque: 14–16 kg-cm / (12.15–13.89 lb-in.) / (1.4–1.6 Nm)

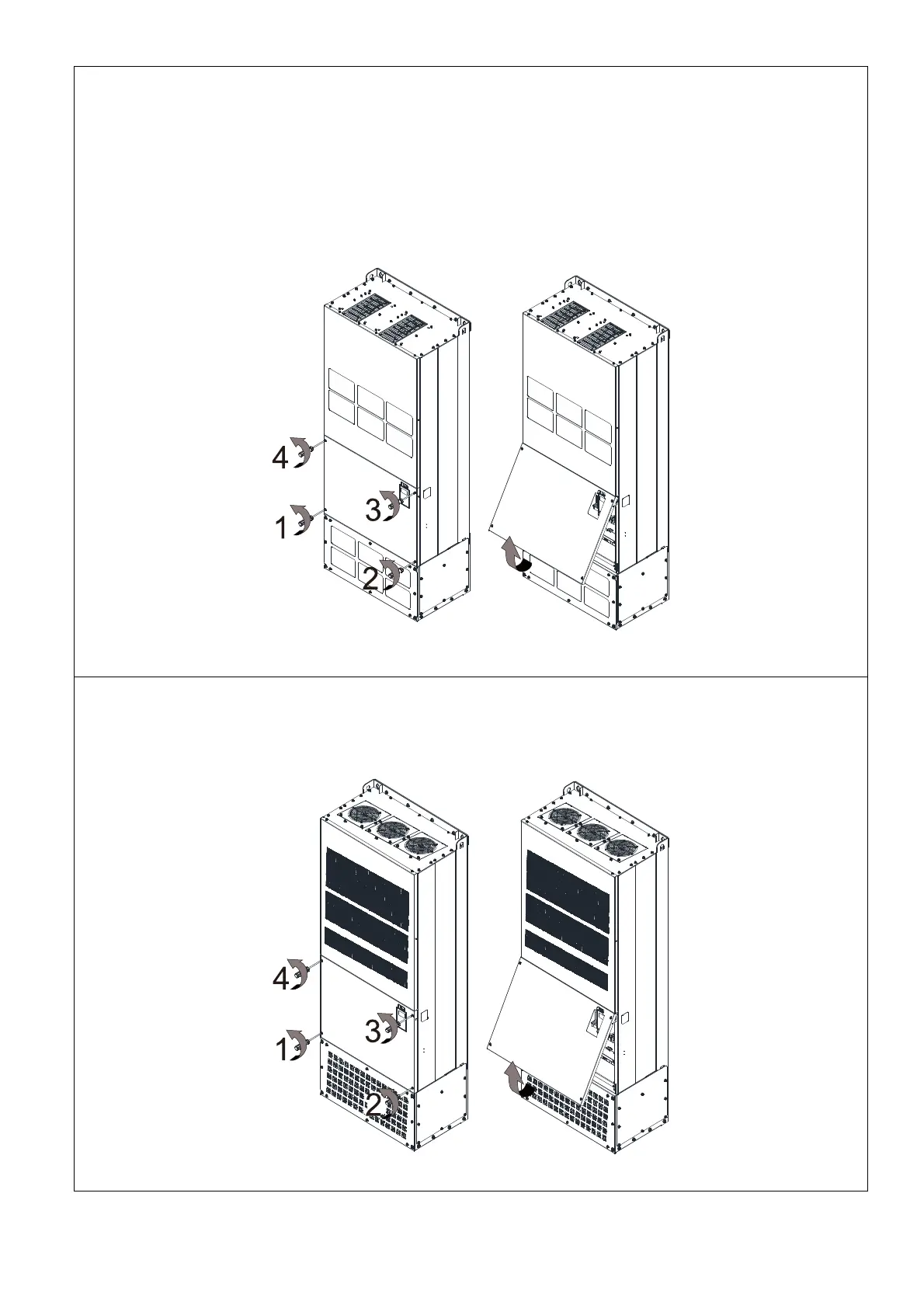

To remove the cover, lift it slightly and pull outward.
Figure 6-12
690V Frame H3
Applicable models: VFD4000C63B-21; VFD4500C63B-21; VFD5600C63B-21; VFD6300C63B-21
Screw torque: 14–16 kg-cm (12.15–13.89 lb-in.) (1.37–1.57 Nm)
To remove the cover, lift it slightly and pull outward.
Figure 6-13
