Chapter 3 UnpackingC2000 Plus
3-2
The AC motor drive should be kept in the shipping carton or crate before installation. In order to retain
the warranty coverage, the AC motor drive should be stored properly when it is not to be used for an
extended period of time.
3-1 Unpacking
Follow these steps to unpack the AC motor drive:
Frame E
Unpacking 1
(VFDXXXCXXA-00, VFDXXXC63B-00)
Unpacking 2
(VFDXXXCXXA-21, VFDXXXC63B-21)

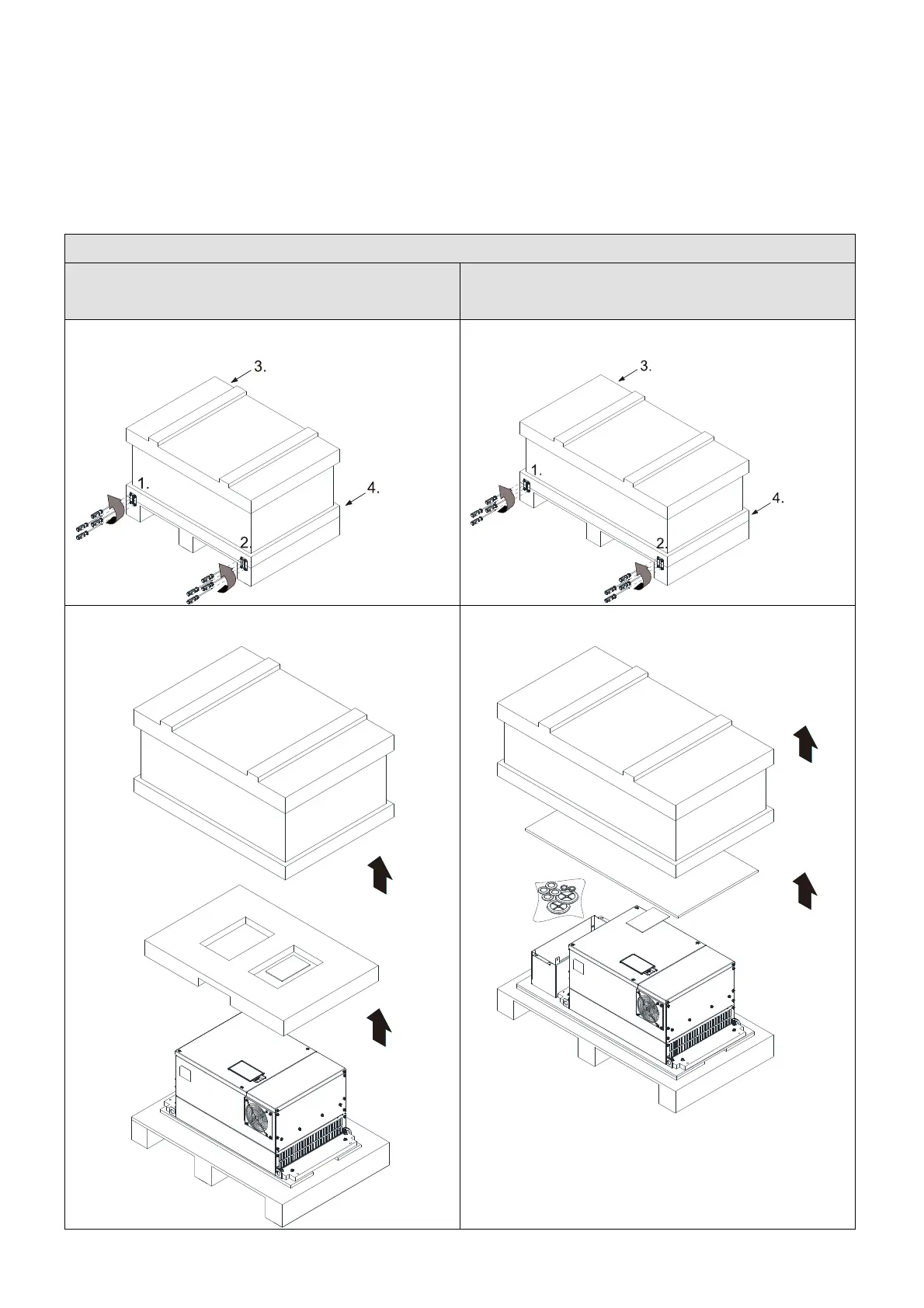

Loosen the 16 screws at the four corners of the
crate, and then remove the iron plates.
Loosen the 16 screws at the four corners of the
crate, and then remove the iron plates.
Remove the top cover, take out the EPEs and the
manual.
Remove the top cover, take out the EPEs, rubber
and the manual.
Figure 3-6
Figure 3-2
Figure 3-1 Figure 3-5
To Next Page
