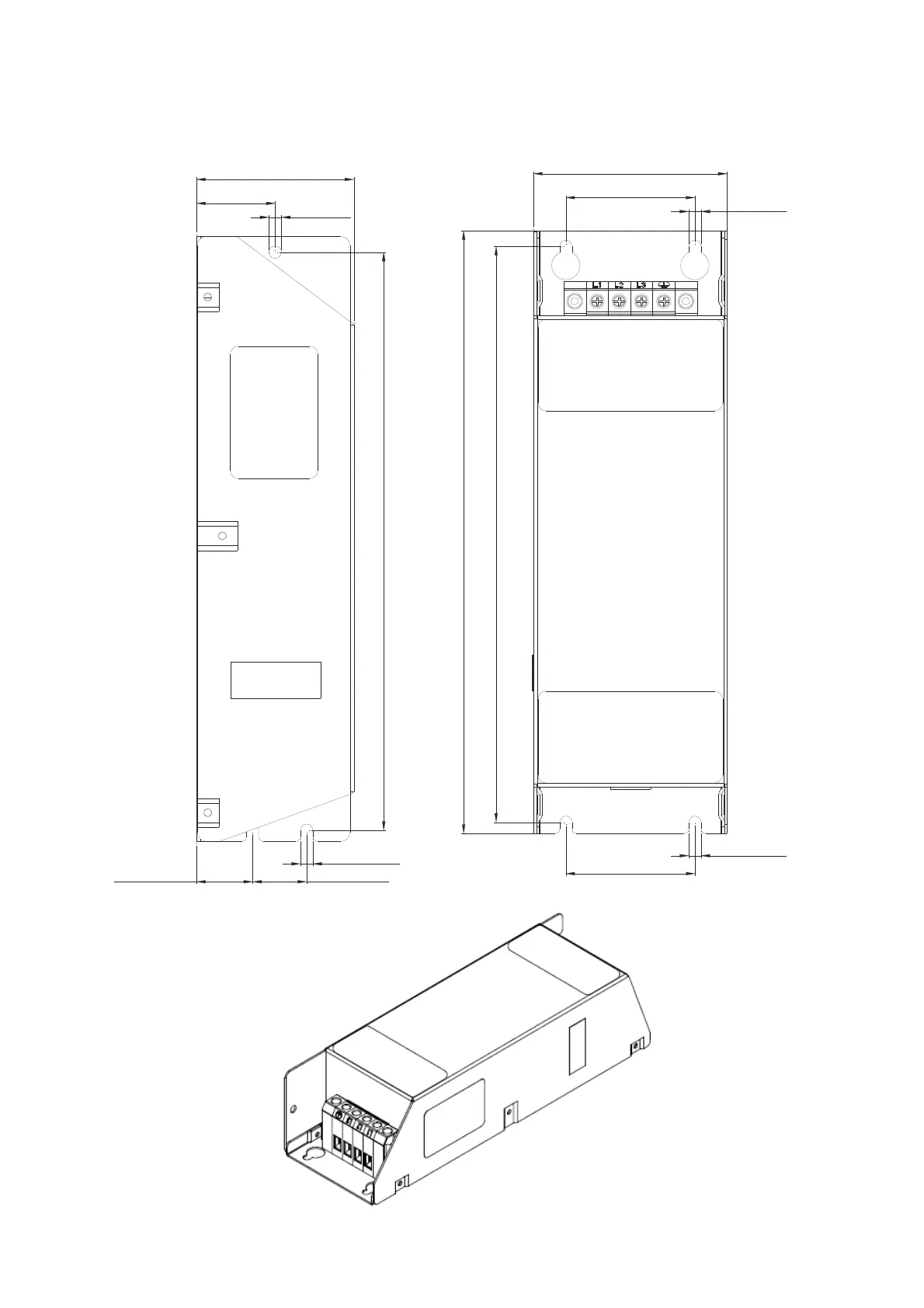

EMC Filter Dimension
Model name: EMF021A23A, EMF014A43A
258.0 [10.16]
25.0 [0.98] 24.0 [0.94]
70.0 [2.76]
5.5 [0.22]
35.0 [1.38]
5.5 [0.22]
5.5 [0.22]
5.5 [0.22]
58.0 [2.28]
258.0 [10.16]
270.0 [10.63]
58.0 [2.28]
87.0 [3.43]
Figure 7-53
