Chapter 7 Optional AccessoriesC2000 Plus
7-103
4. Install the conduit box by tightening all the screws shown in the following figure.
M5 Screw torque: 24–26 kg-cm / (20.8–22.6 Ib-in.) / (2.4–2.5 Nm)
M8 Screw torque: 100–120 kg-cm / (86.7–104.1 Ib-in.) / (9.8–11.8 Nm)

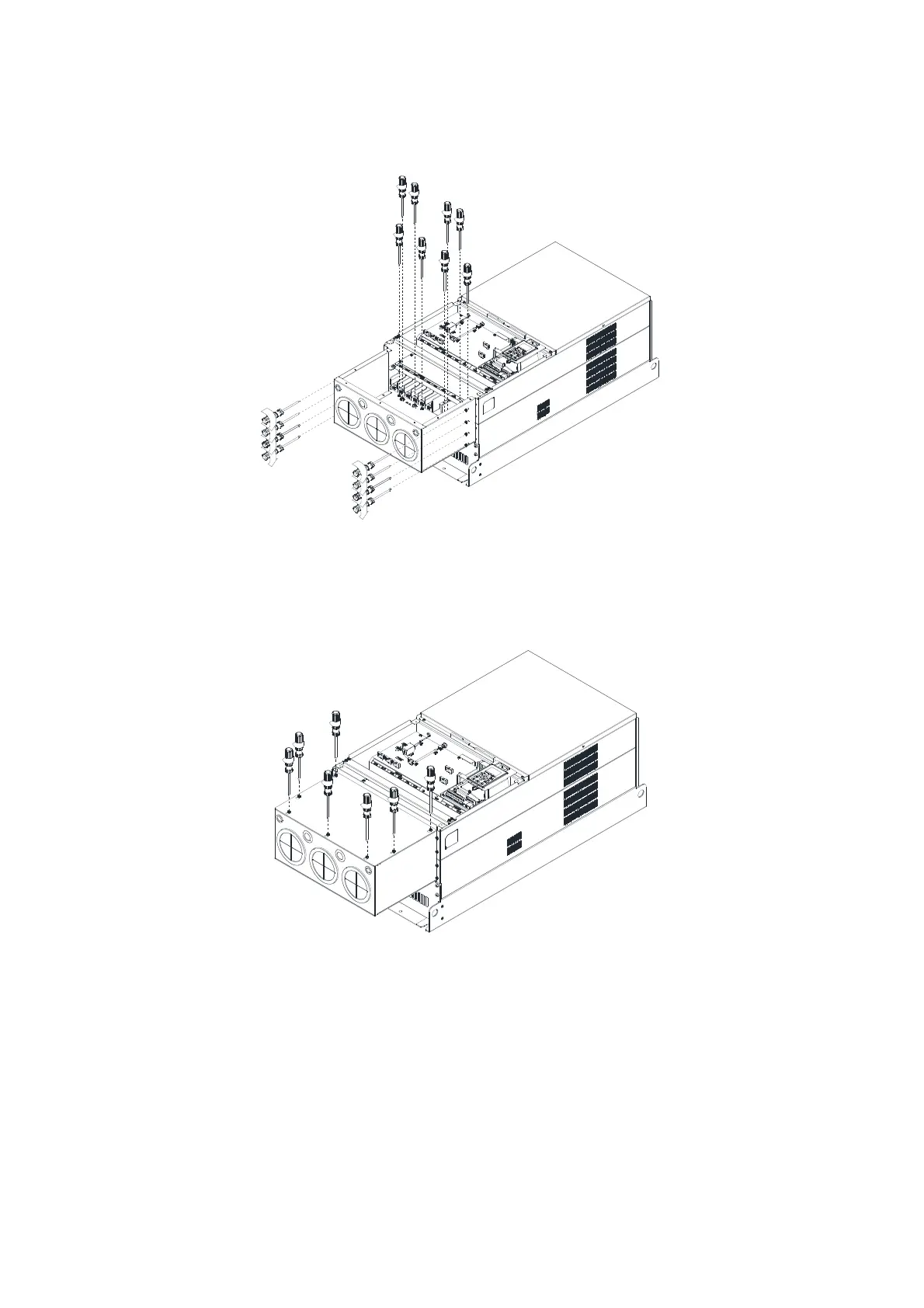

Figure 7-109
5. Tighten all the screws.
Screw torque: 24–26 kg-cm / (20.8–22.6 Ib-in.) / (2.4–2.5 Nm)
Figure 7-110
