Chapter 7 Optional AccessoriesC2000 Plus
7-134

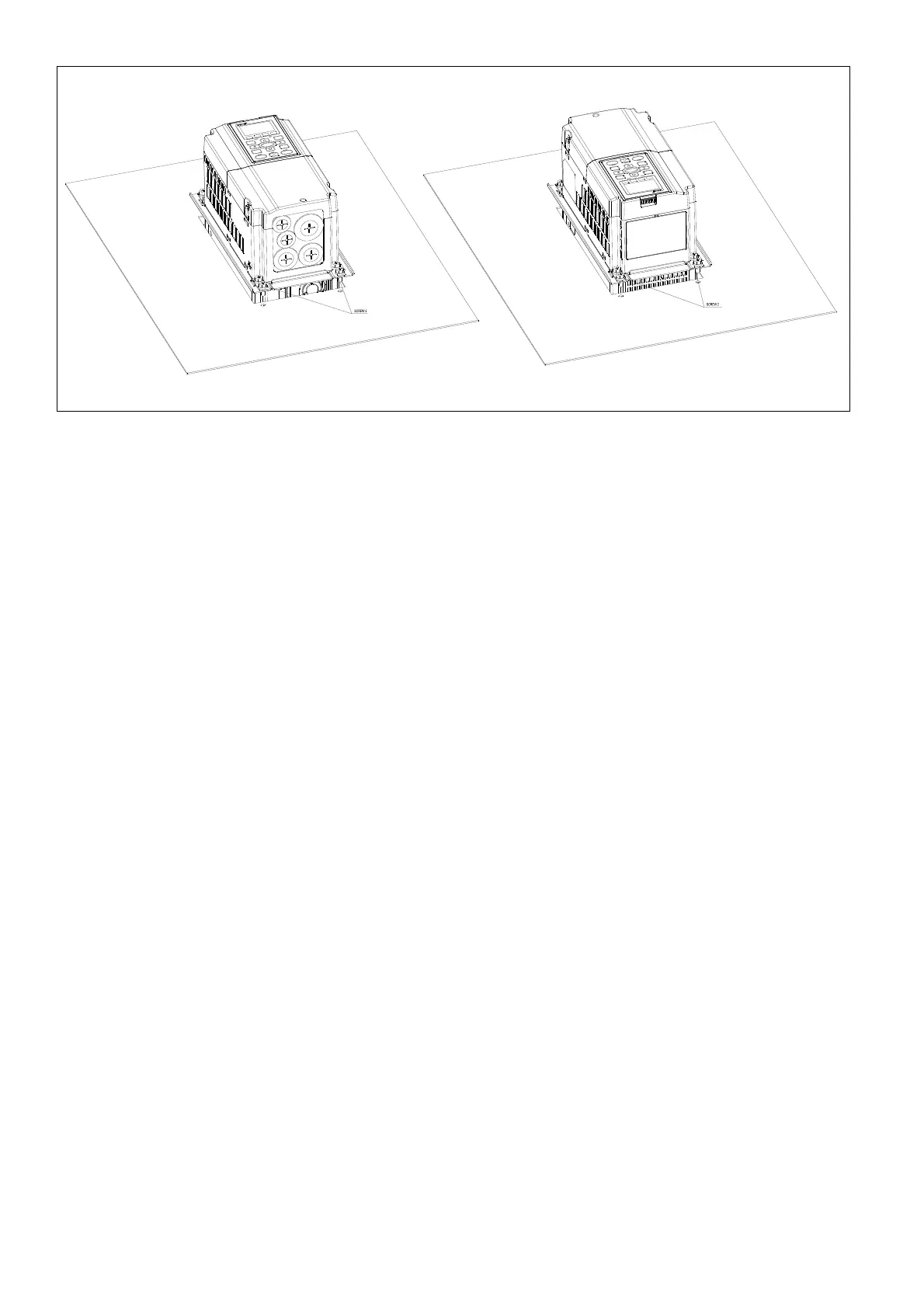

4. Plate installation, place 4 of the screw 2 (M6, as shown in the figure below) through accessory 2 & 3 and the
plate then tighten the screws. Screw torque: 25–30 kg-cm / (21.7–26 Ib-in.) / (2.5–2.9 Nm)
Figure 7-200
