Chapter 7 Optional AccessoriesC2000 Plus
7-146

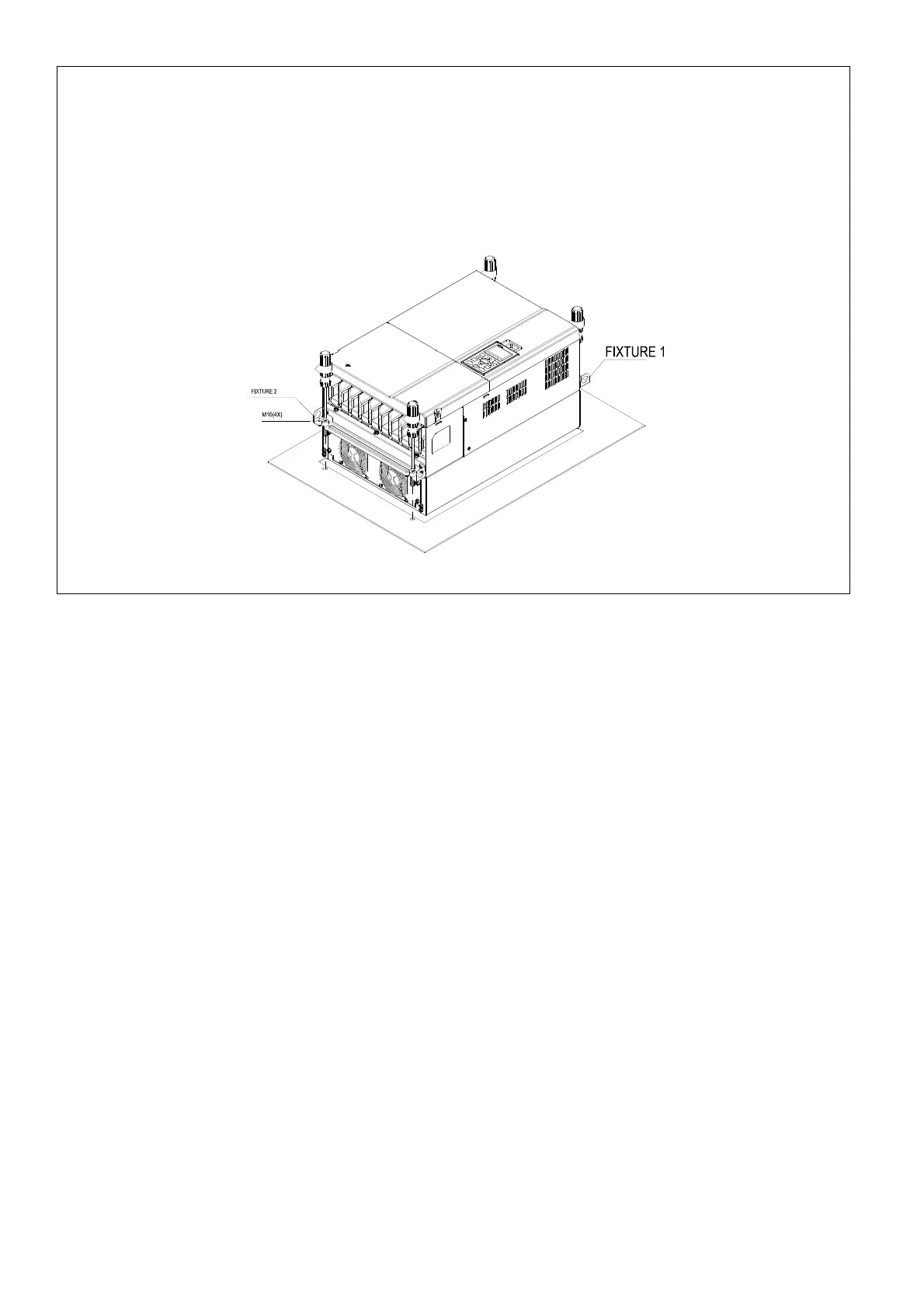

7. Place 4 screws (M10) through Fixture 1 & 2 and the plate then tighten the screws. (as shown in the
figure below)
Frame D0/D M10*4
Screw torque: 200–240 kg-cm / (173.6–208.3 Ib-in.) / (19.6–235 Nm)
Frame E M12*4
Screw torque: 300–400 kg-cm / (260–347 Ib-in.) / (29.4–39.2 Nm)
Figure 7-221
