Chapter 12 Descriptions of Parameter SettingsC2000 Plus
12.1-02-8
Settings Functions Descriptions
35
Enable single-point
positioning
ON: the AC motor drive executes the single-point positioning
according to Pr.11-65 (single-point positioning position high
byte) and Pr.11-66 (single-point positioning position low byte).
This function is valid only for IMFOCPG and PMFOCPG control
modes.

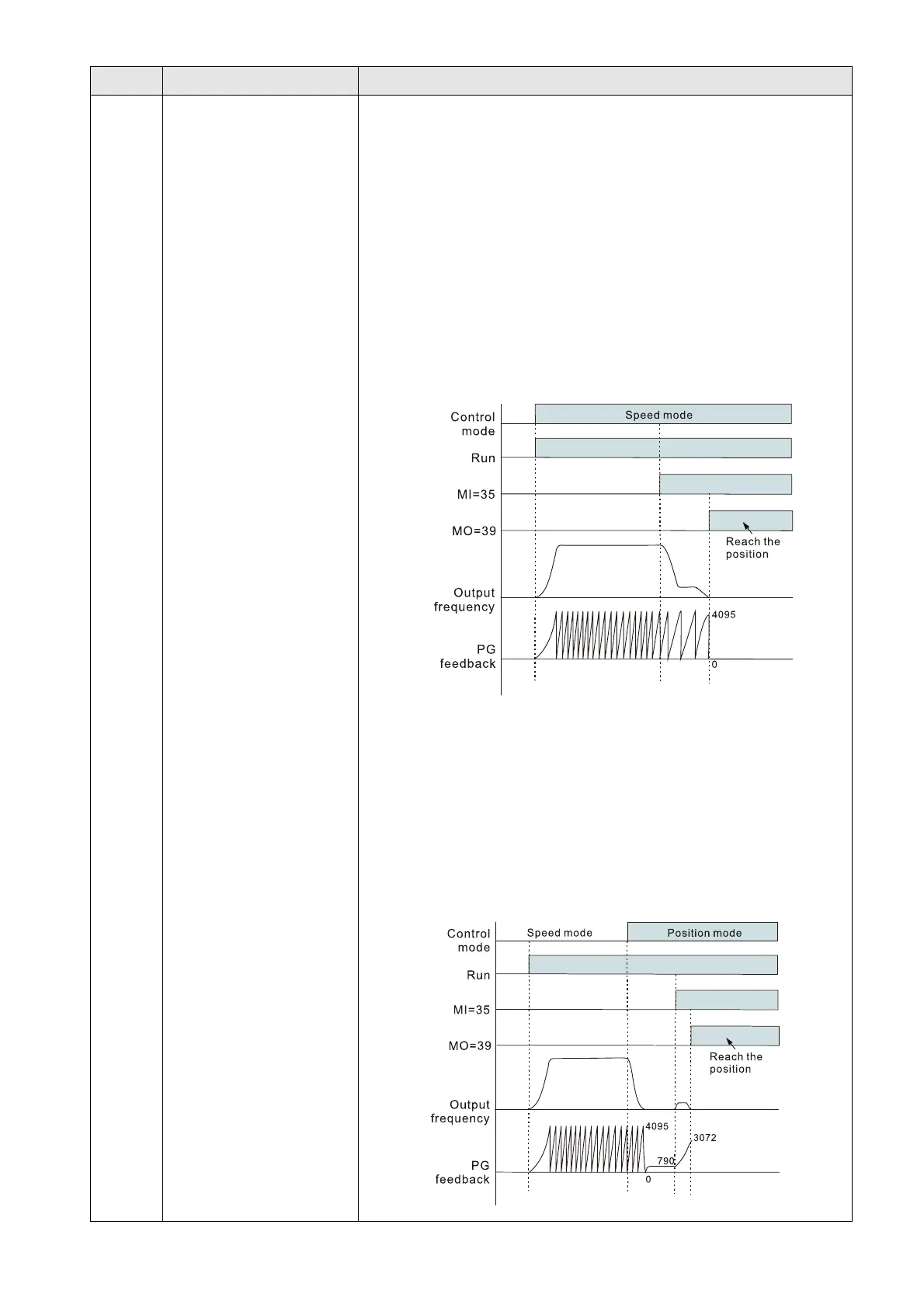

1. MI=35 (enable single-point positioning), MO=39 (position
reached), Pr.10-01=1024 (encoder PPR), Pr.11-65=0 and Pr.11-
66=0
In speed control mode (Pr.00-10=0), activate MI=35 (enable
single-point positioning), the motor is positioned according to
Pr.11-65 and Pr.11-66 settings. See the diagram below:
2. MI=35 (enable single-point positioning), MO=39 (position
reached), Pr.10-01=1024 (encoder PPR), Pr.11-65=0 and Pr.11-
66=3072
In position control mode (Pr.00-10=1), activate MI=35 (enable
single-point positioning), the motor runs from the current single
revolution position to Pr.11-65 and Pr.11-66 setting positions and
the moving position does not exceed one revolution if single
revolution coordinate system is finished. See the diagram below:
