Chapter 3 UnpackingC2000 Plus
3-18

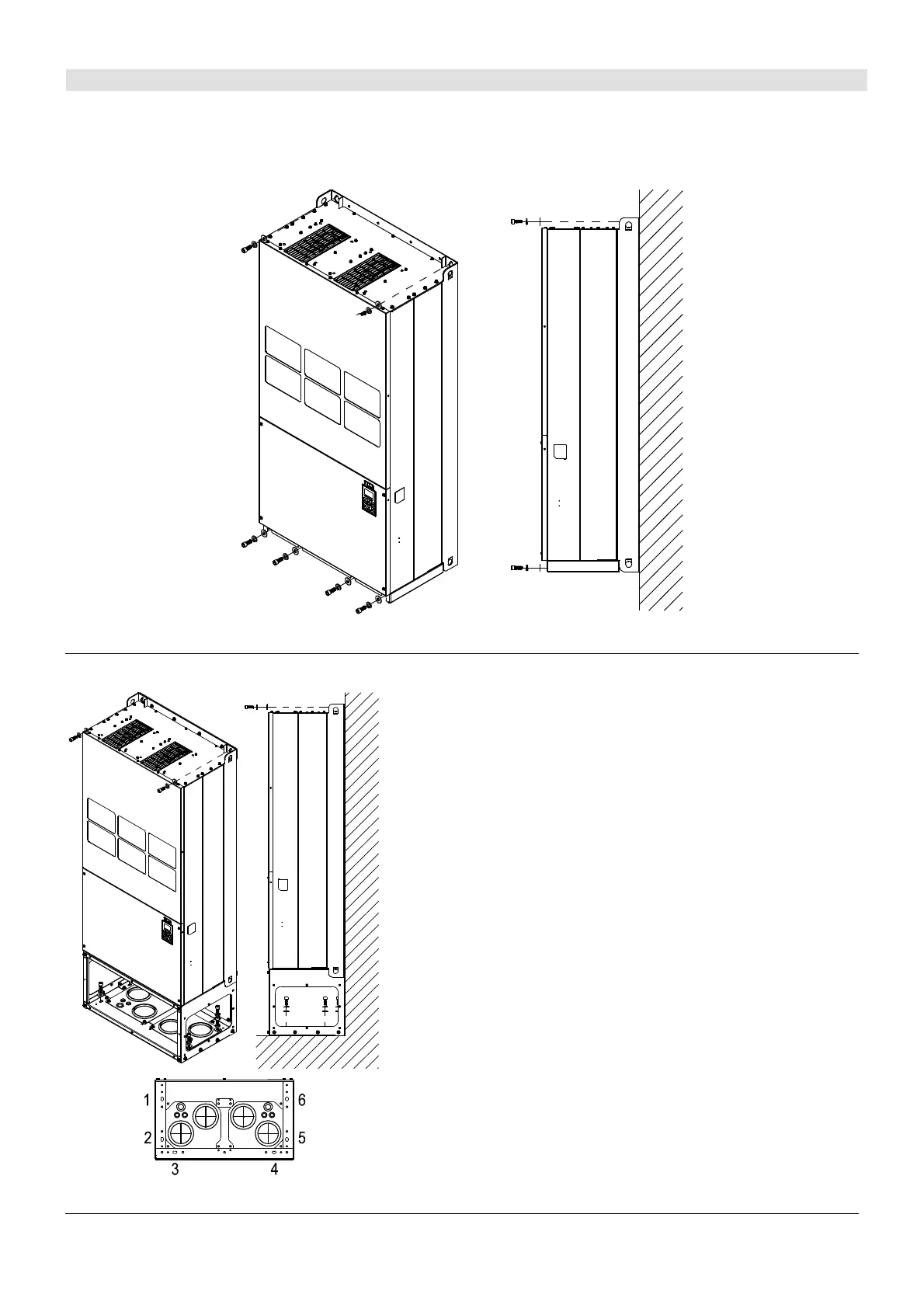

Frame H: Fix the drive
VFDXXXC43A-00
Screw: M12*6
Torque: 340–420 kg-cm / (295.1–364.6 lb-in.) / (33.3–41.2 Nm)
Figure 3-53
VFDXXXC43C-21
Fix the drive from the inside.
Screw: M12*8
Torque: 340–420 kg-cm / (295.1–364.6 lb-in.) /
(33.3–41.2 Nm)
Figure 3-54
