Delta VFD9A0MS43ANSAA User Manual

Chapter 7 Optional AccessoriesMS300
102
Installation
Recommended screw size and torque value:
M3: 4–6 kg-cm / (3.5–5.2 lb-in.) / (0.39–0.59 Nm)
M3.5: 4–6 kg-cm / (3.5–5.2 lb-in.) / (0.39–0.59 Nm)
M4: 6–8 kg-cm / (5.2–6.9 lb-in.) / (0.59–0.78 Nm)

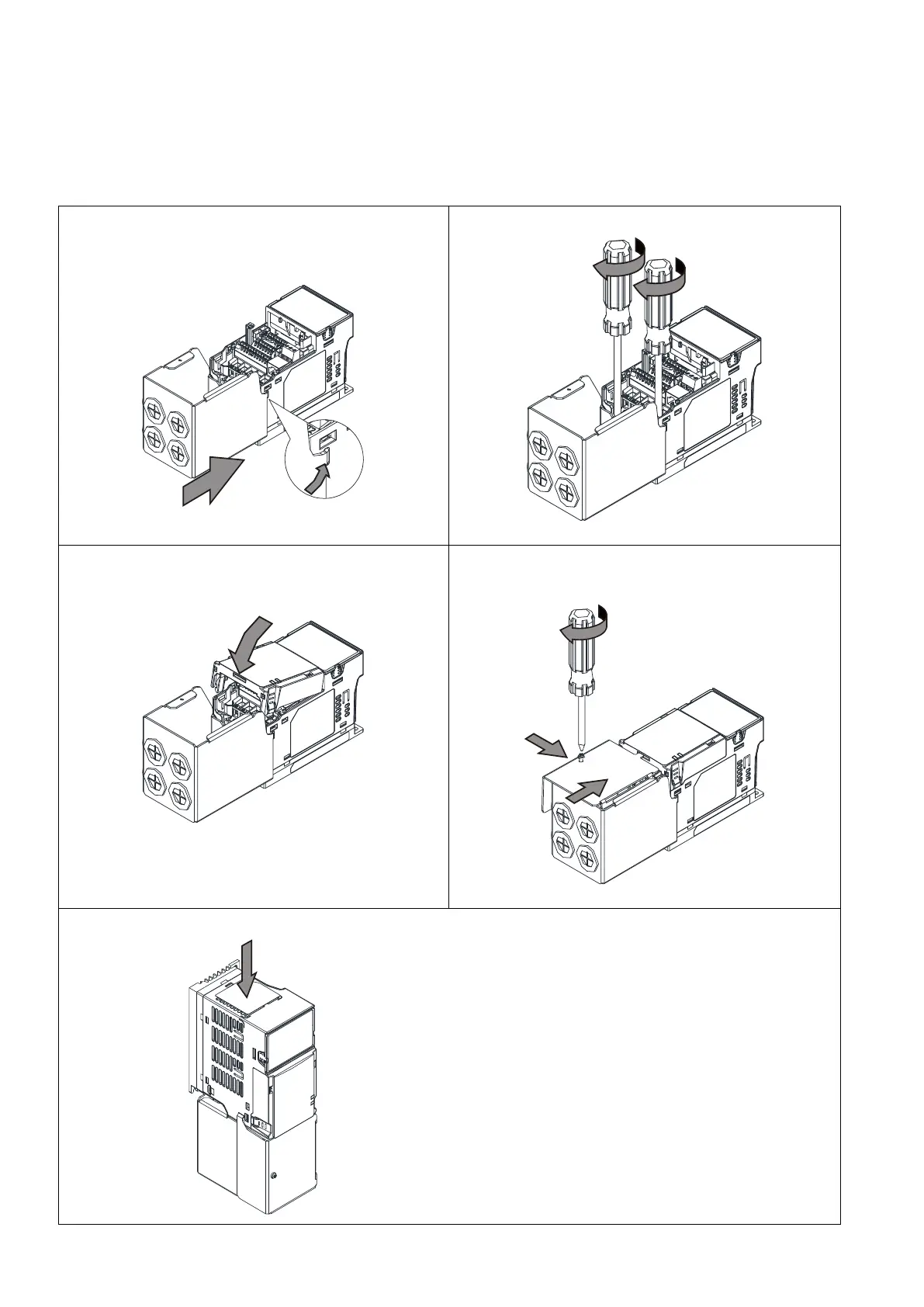

Frame A
1) Aim the clips at the slots to assemble the
conduit box.
2) Tighten the screws to connect with the motor.
Figure 7-56
Figure 7-57
3) Install the front cover of the motor.
4) Install the front cover of the conduit box and
tighten the screw.
Figure 7-58
Figure 7-59
5) Attach the dust patch.
Figure 7-60
