Delta VFD9A0MS43ANSAA - Frame D

Chapter 2 DimensionsMS300
13
2-4 Frame D
D1: VFD25AMS23ANSAA; VFD25AMS23ENSAA; VFD13AMS43ANSAA; VFD13AMS43ENSAA;
VFD17AMS43ANSAA; VFD17AMS43ENSAA; VFD9A9MS53ANSAA; VFD12AMS53ANSAA
D2: VFD13AMS43AFSAA; VFD17AMS43AFSAA

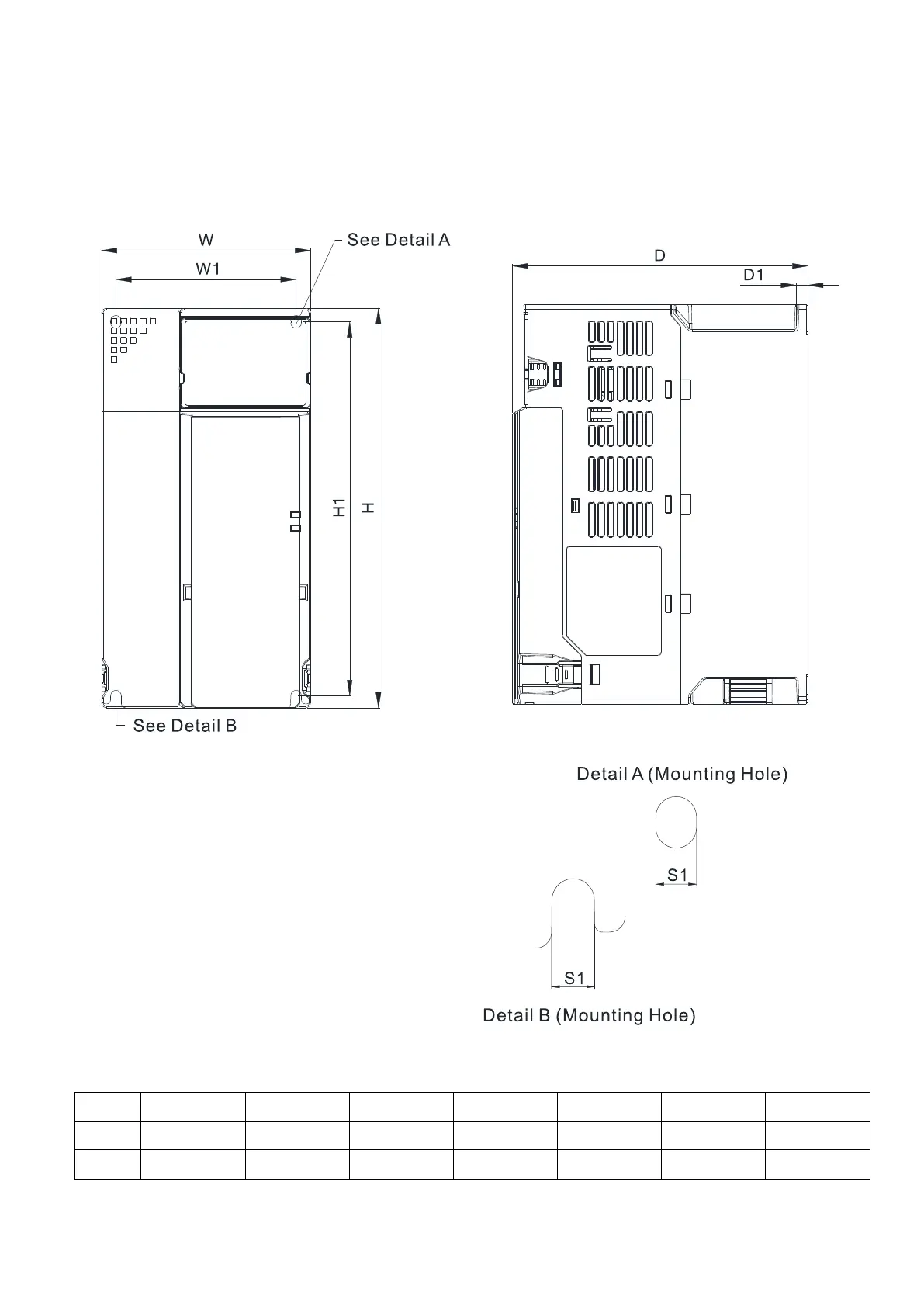

Figure 2-4
Unit: mm (inch)
Frame
W
H
D
W1
H1
D1
S1
D1
109.0 (4.29)
207.0 (8.15)
154.0 (6.06)
94.0 (3.70)
193.8 (7.63)
6.0 (0.24)
5.5 (0.22)
D2
109.0 (4.29)
207.0 (8.15)
187.0 (7.36)
94.0 (3.70)
193.8 (7.63)
6.0 (0.24)
5.5 (0.22)
Table 2-4
