Delta VFD9A0MS43ANSAA - Frame E

Chapter 2 DimensionsMS300
14
2-5 Frame E
E1: VFD33AMS23ANSAA; VFD33AMS23ENSAA; VFD49AMS23ANSAA; VFD49AMS23ENSAA;
VFD25AMS43ANSAA; VFD25AMS43ENSAA; VFD32AMS43ANSAA; VFD32AMS43ENSAA
E2: VFD25AMS43AFSAA; VFD32AMS43AFSAA

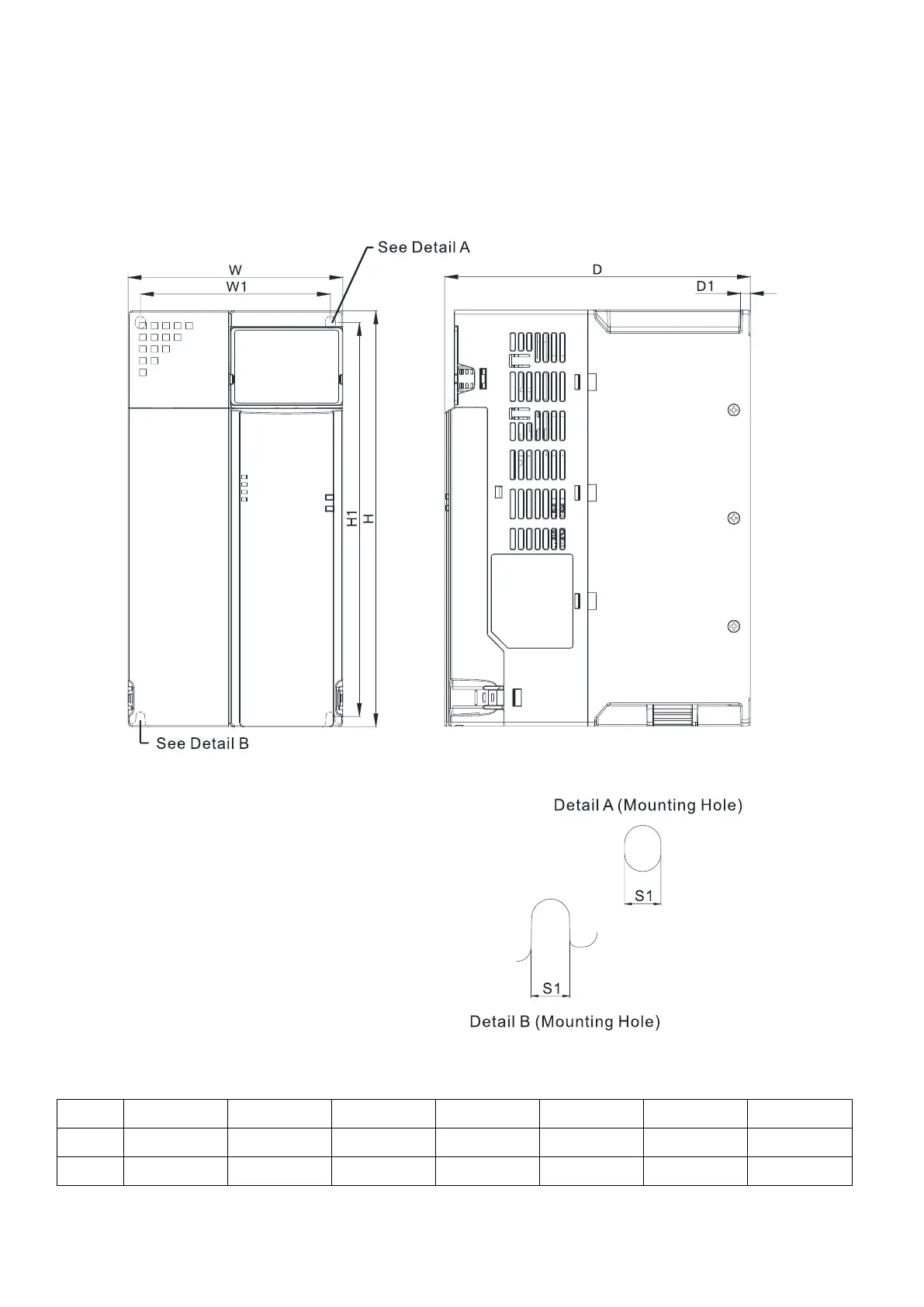

Figure 2-5
Unit: mm (inch)
Frame
W
H
D
W1
H1
D1
S1
E1
130.0 (5.12)
250.0 (9.84)
185.0 (7.83)
115.0 (4.53)
236.8 (9.32)
6.0 (0.24)
5.5 (0.22)
E2
130.0 (5.12)
250.0 (9.84)
219.0 (8.62)
115.0 (4.53)
236.8 (9.32)
6.0 (0.24)
5.5 (0.22)
Table 2-5
