I-974
Rev. J-43816
Page 2 of 8
3
23/18
Packing List
X = included in kit
Part Number
Description
NE.DL.A
NE.LL.A
NE.DLL.A
NE.LLL.A
904.8T RINSE CHECK VALVE ¼” OD TEFLON BALL
X
X
X
X
80.55 LIQUID DETERGENT FEED INJECTION ELBOW
X
X
81.312.1 SPLIT PICK UP TUBE STIFFENER
1
2
2
3
25.68.20 20 FT ¼” OD LDPE TUBING
X
X
X
X
C.12B CONDUCTIVITY CELL
X
X
X
X
100.12.SV1 VINYL RINSE TUBING
X
X
X
X
58.5 OVERFLOW ELBOW KIT – DRY DETERGENT
X
X
904.8KY RINSE CHECK VALVE ¼” COMP X 1/8” NPT KYNAR
X
X
81.16.1 TIE WRAPS 8” LONG
5
5
8
8
I974 INSTRUCTION SHEET
X
X
X
X
Operational Requirements
For indoor use only
Trigger Signal Inputs 115/230VAC 50/60 Hz 1.5A
Motors/Solenoid Valves 24VDC
Detergent Pump Rate 6oz/min (180ml/min)
Rinse/Sanitizer Pump Rate
1.3oz/min (40ml/min)
Operating Temp 4-30°C 40-100°F
Case Material ABS
The integrity and operational characteristics of this unit are not guaranteed outside the above
mentioned parameters. Use of this unit outside of these parameters nullifies warranty.
This unit will only accept up to 265 VAC. It cannot accept over this amount. If more than 265
VAC is supplied to this unit, critical damage will occur.

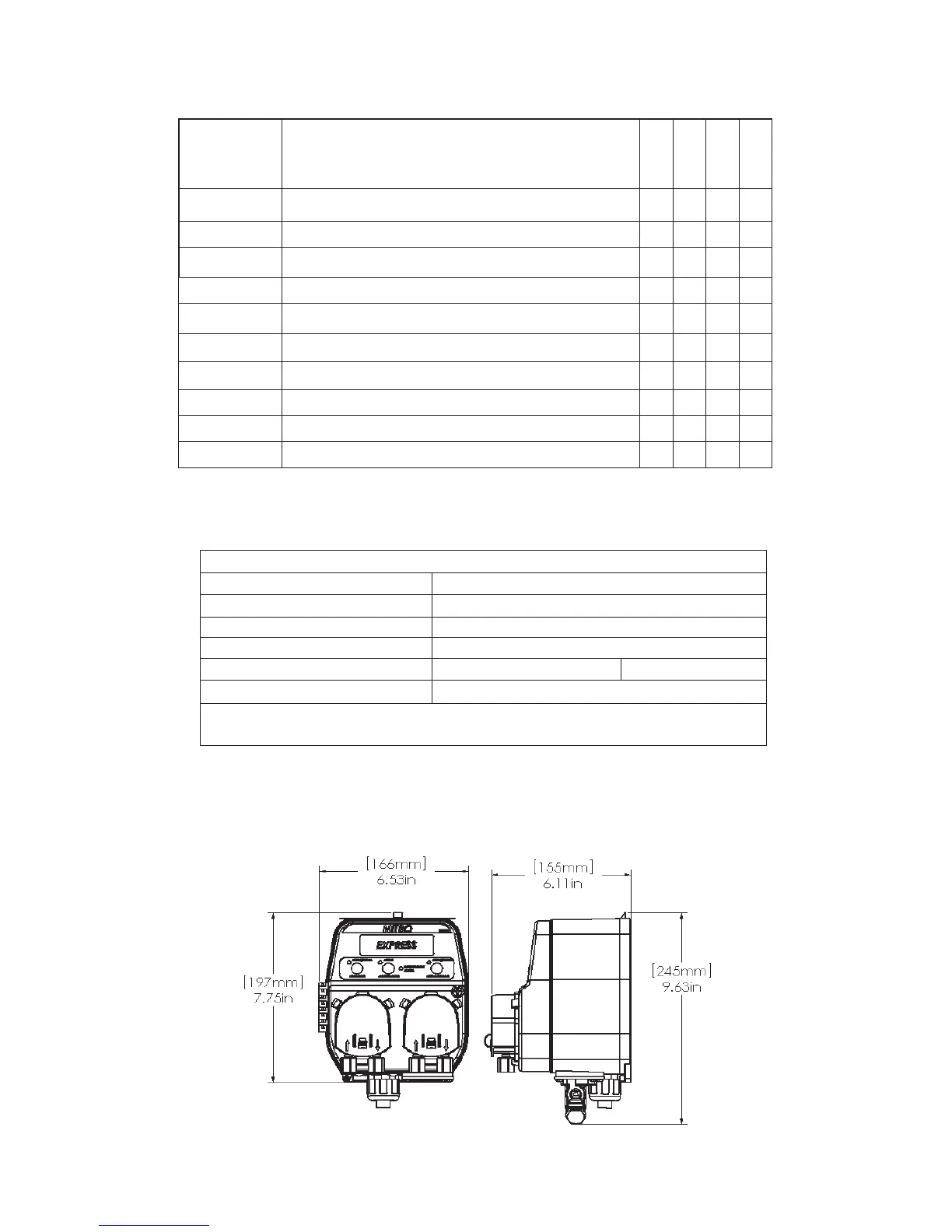

Overall Size
