DEMA NITRO EXPRESS - Dip Switches

I-974
Rev. J-43816
Page 6 of 8
3
/
23/18
F

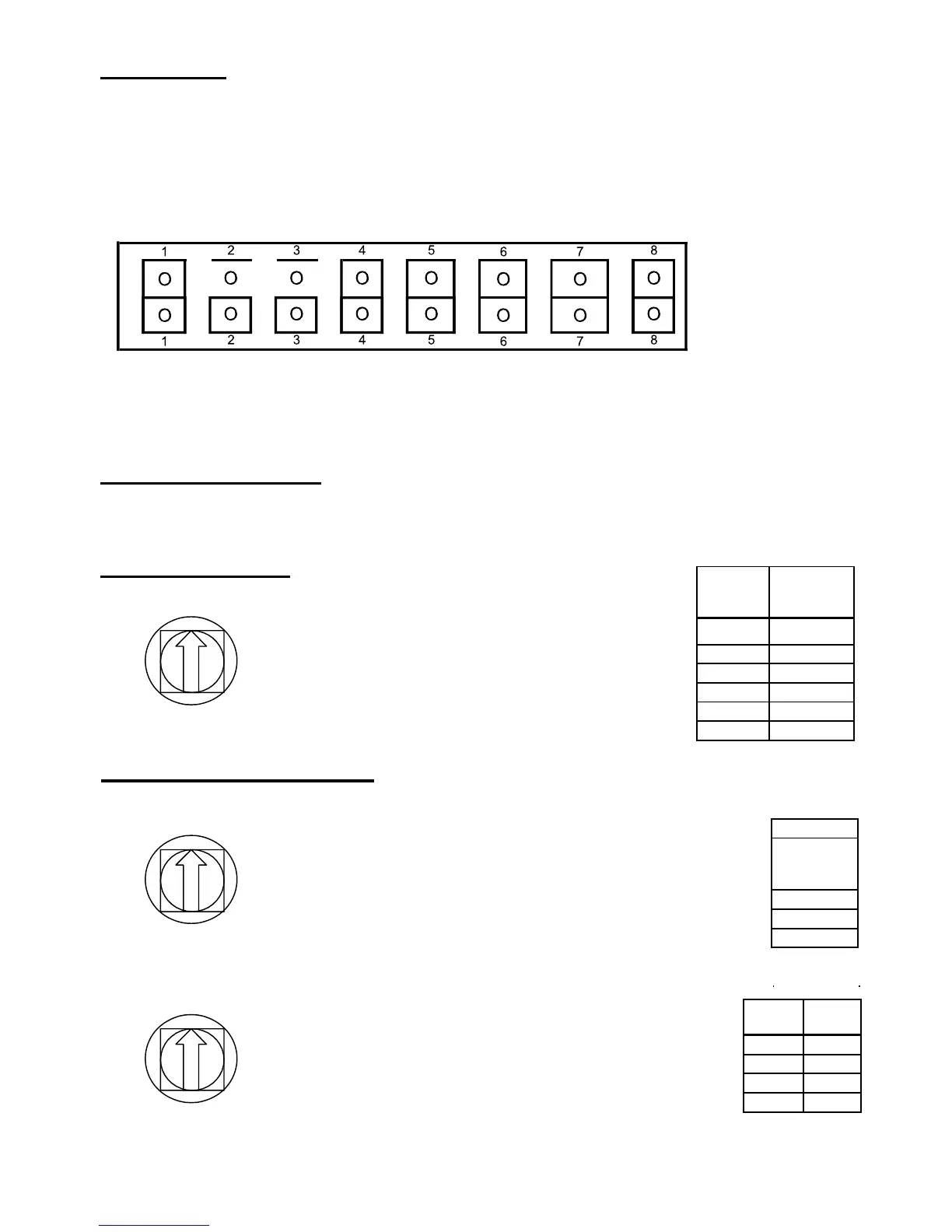

Dip Switches
The following diagram illustrates what the different switches refer to so that the Nitro Express can be set up for the
proper situation.
The dip switches are set up so that the “up” position is “on” and the “down” position is “off”.
O
ON
PRESS DOWN THIS
F
WAY FOR ON


PRESS DOWN THIS

WAY FOR OFF
OFF
Potentiometers (Knobs)
The potentiometers can be set according to the following charts. Each of the next four figures will outline various
configurations that are possible. For more information on these configurations consult pages 5-6 to see how to set up the
dip switches for the configurations.
Rinse/Sanitizer Settings
4
5
6
3 7
2 8
1
9
0 10
Rinse
The Rinse and Sanitizer knobs control the same setting
whether in probe or probeless mode and in door or conveyor
mode. They control the speed of the rinse and sanitizer pump.
The table to the right has approximate values for the pump
rate at different settings of the knob.
Only the DLL and LLL models have a sanitizer
potentiometer.
Probeless and Door Configuration
4
5
6
3 7
2 8
1
9
0 10
Detergent
4
5
6
3 7
2 8
1
9
0 10
Initial Detergent Charge – The detergent knob sets the time the
detergent pump will run or detergent valve will remain open during an
initial charge. The time can be set from 0-60 sec.
The initial charge is activated in one of two ways.
1. It can be activated by 1 hour of elapsed time where no triggers have
activated the dispenser.
2. With the rinse limit turned on (switch 7) and a rinse trigger active for
more than 20 seconds, an initial charge will be dispensed.
Dead Cycles – The alarm knob sets the number of cycles no
detergent is dispensed before a recharge portion of detergent is added
to the machine.
The table to the right has the different settings for the Dead Cycle
count corresponding to the knob setting.
Alarm (Dead Cycles)
PROBELESS
MODE
CONCEN. MODE
CONVEYOR MODE
DOOR MODE
NORMAL
RANGE
HIGH RANGE
PULSE FEED
OFF
PULSE FEED ON
PLUS 0 SEC
RINSE
DELAY
PLUS 2 SEC RINSE DELAY
PLUS 0 SEC
RINSE
DELAY
PLUS 4 SEC RINSE DELAY
20 SECOND RINSE LIMIT ON
RINSE LIMIT
OFF
ALARM VOL
LOW
ALARM VOL HIGH

RINSE/
SANITIZER
SETTING
PUMP RATE
0 0 ml/min
2 8.5 ml/min
4 27 ml/min
6 33 ml/min
8 40 ml/min
10 43 ml/min
DETERGENT
INITIAL
CHARGE
SETTING
0-60 sec
0-170 ml
0-5.75 oz
ALARM
SETTING
DEAD
CYCLES
2 0
4 1
6 2
8 3
