C-110-170-200E R11 Page 32

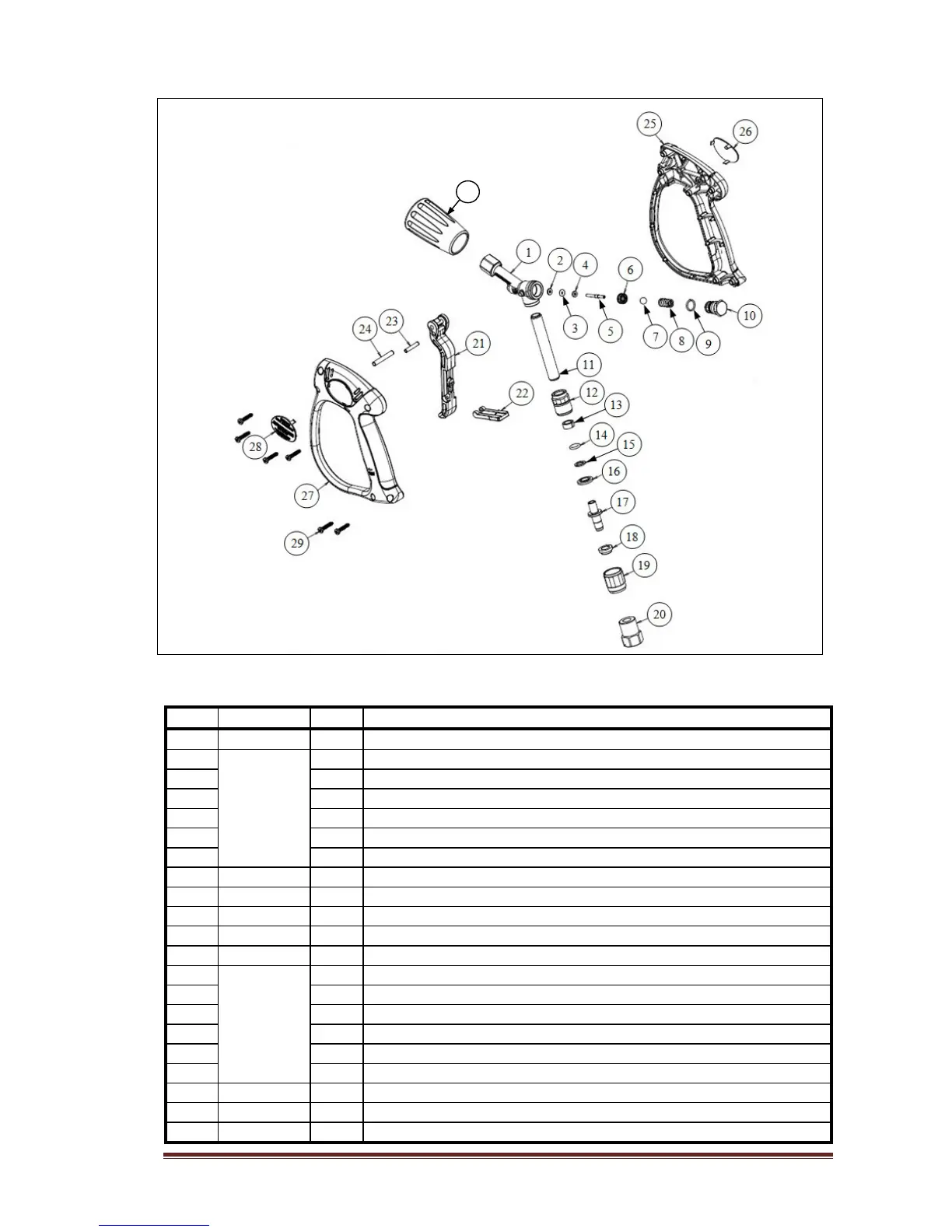

Trigger gun assembly
Trigger gun assembly spare-parts list
Pos: Part no.: Qty.: Description:
1 - 1 Body
2
Kit F
1 Anti Extrusion Ring
3 1 O-Ring
4 1 Washer
5
1
Pin Press Sphere
6 1 Seat
7
1
Sphere 5/16
8 - 1 Spring S.S
9 Kit F 1 O-Ring
10 - 1 Plug
11
-
1
Pipe
12 - 1 Coupling G1/4F Outlet SW Top
13
Kit G
1
Bushing
14 1 O-Ring
15 1 Anti Extrusion Ring
16 1 Spacer
1
7
1
Rotating Joint Pin
18 1 Nut with Step
19
-
1
Nipple
20 700551521 1 Coupling G3/8F Inlet SW Top
21 - 1 Lever
[
3
