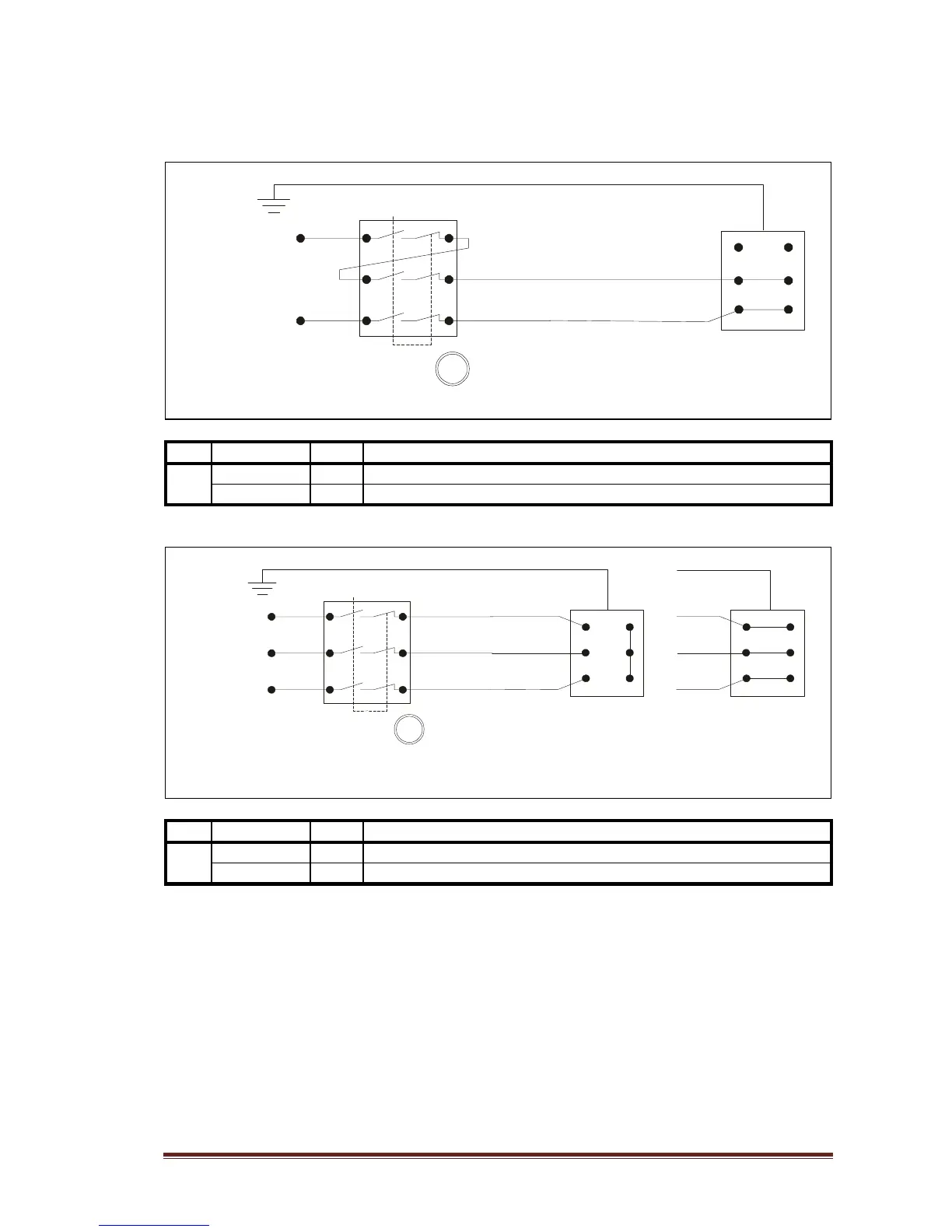

5. Wiring Diagram
Wiring diagrams (Non-Auto Start Stop)
C-110E & C-150E standard
110V
200V
230V
ON/OFF
SWITCH
OVERLOAD
RELAY
L
N
(L3)
(L2)
(L1)
MOTOR
A
GROUND
TO EARTH
Pos: Part no.: Qty.: Description:
A 700530005 1 On/Off Switch w/ Overload Relay 230V
A 700530115 1 On/Off Switch w/ Overload Relay 110V
C-170E C-200E standard
220V
380V
400V
440V
380V
400V
440V
220V
ON/OFF
SWITCH
GROUND
TO EARTH
OVERLOAD
RELAY
L
L
L
1
2
3
MOTOR
MOTOR
A
OR
Pos: Part no.: Qty.: Description:
A 700530005 1 On/Off Switch w/ Overload Relay 380-415-440V
A
700530096
1
On/Off Switch w/ Overlo
ad Relay 230V
