Den-Sin C-110E - Wiring Diagrams (Auto Start Stop Single Phase)

C-110-170-200E R11 Page 35

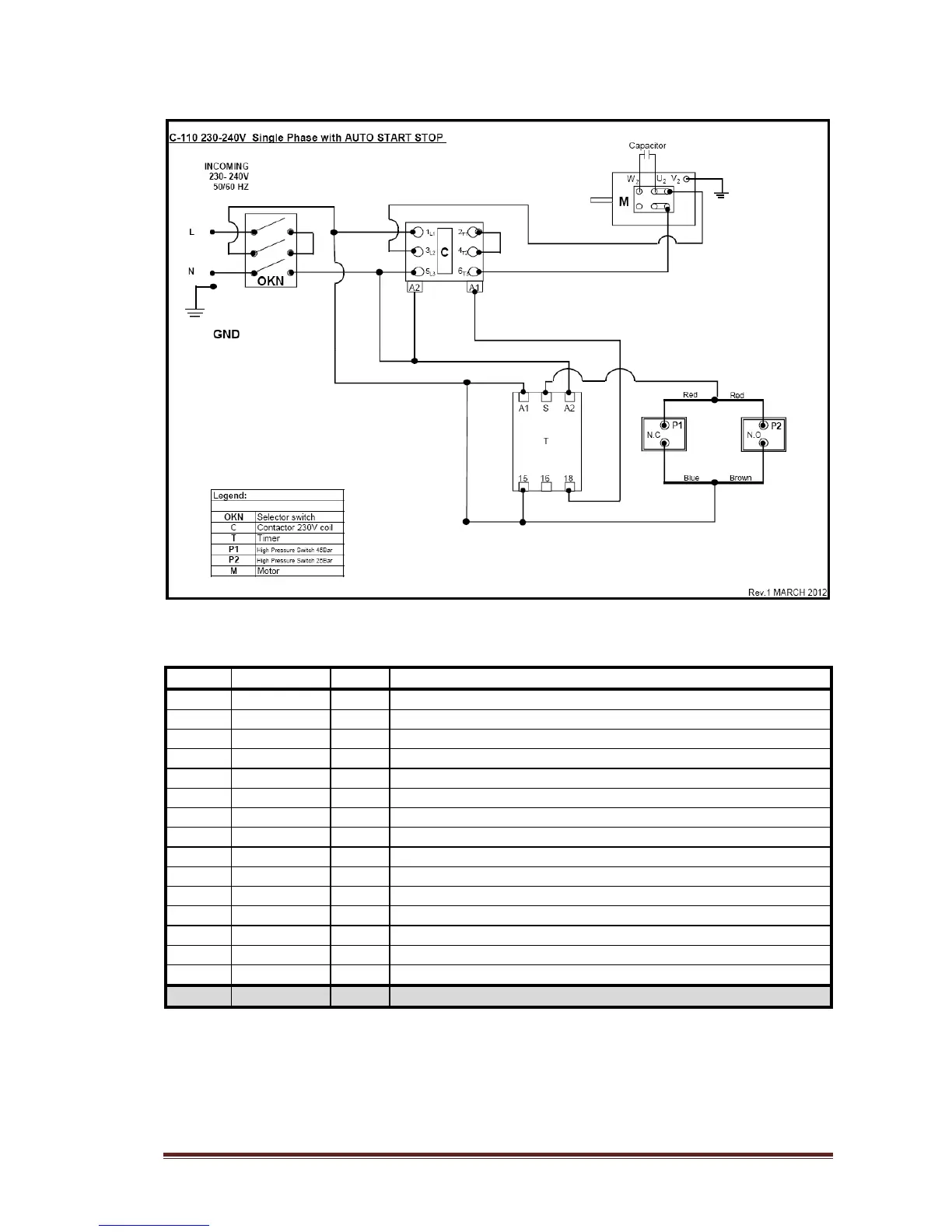

Wiring diagrams (Auto Start Stop Single phase)
Kit Auto Start Stop
Pos: Part no.: Qty.: Description:
A1 700530005 1 On/Off Switch w/ Overload Relay
B1
700530610
1
CONTACTOR LC1
-
D25/COIL 220V
-
23
C1 700530695 1 TIMER
D1 700530154 1 PRESSURE SWITCH 3/8`
E1 700530155 1 PRESSURE SWITCH 1/4`
F1* 700530613 1 EL-BOX
- - - -
- - - -
I1* 700540114 1 T JOINT 3/8` BSP M-F 1/4` BSP
J1* 700540117 1 T JOINT 3/8` BSP M-F-F BRASS
K1* 700540113 1 NIPPLE 3/8` BSPP M-M ZN
L1* 700530624 1 SELECTOR SWITCH 230V-500V
M1* 700520688 1 MOTOR TERMINAL SPACER 20mm
N1* 700510228 4 SCREW M5X35 PAN HD ZN
O1* 700550004 2 DOWTY SEAL 3/8`
B1
-
O
1
700530642
1
Kit Auto Start Stop
*Not Shown
