Denar Mark II - Protrusive and Lateral Wing Adjustments

To Next Page

To Previous Page

complement the anterior tooth relation-

ships in the following manner. Hold the

articulator in a right lateral mandibular

position so that the right cuspids are in

function. (The upper bow is pushed to

the left. ) Note that the incisal pin does

not contact the incisal table. With the

right index finger, reach behind the tilt-

ing platform, and elevate the left wing of

the table until it touches the foot of the

incisal pin (fig. 72). Visually take a read-

ing on the front scale to note its angular

setting. Do this same procedure on the

other side wing. Now remove the incisal

table from the articulator and tighten the

lockscrew wings at those settings. Then

attach the table to the articulator again.

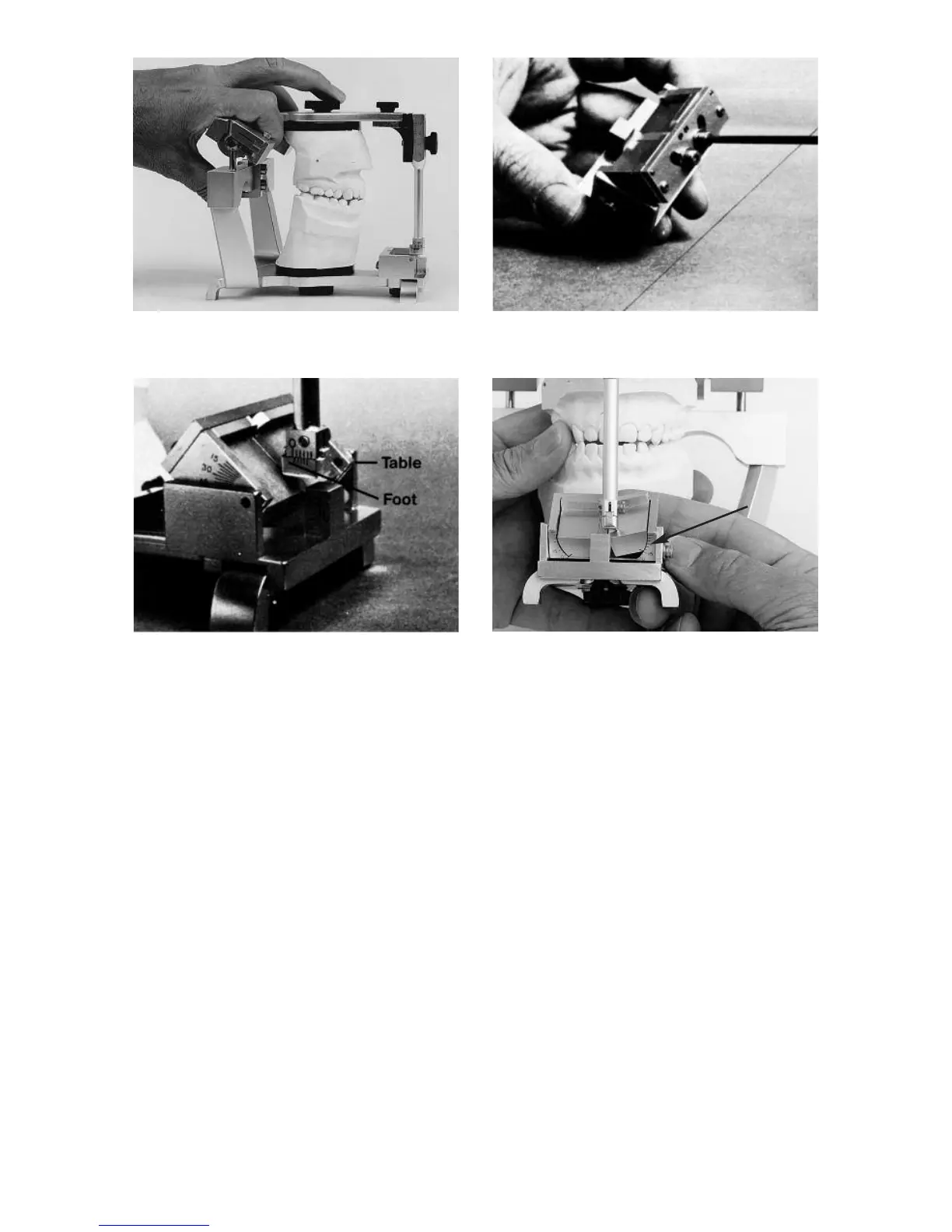

fig. 69 fig. 71

fig. 70

fig. 72

Scale
