DAEnetIP2 v2 User Manual
21 Apr 2020
6.6.2. SNMP Traps
Trap Receiver IP Address - the IP address of the trap server;
Trap Receiver Port - determines the UDP port the trap message will be sent to;
Trap Community - the trap community.
You have to reboot the device for these settings to apply.
The controller generates traps each 2-3 seconds when it is in alarm zone. This is because the
SNMP trap is UDP based message and the receiving is not guaranteed.
6.7. I/O Ports Settings
DAEnetIP2 v2 has 8+8 digital I/O (P3/P5) and 8 analog inputs (P6). The analog inputs may be
used also for digital inputs (software conversion).

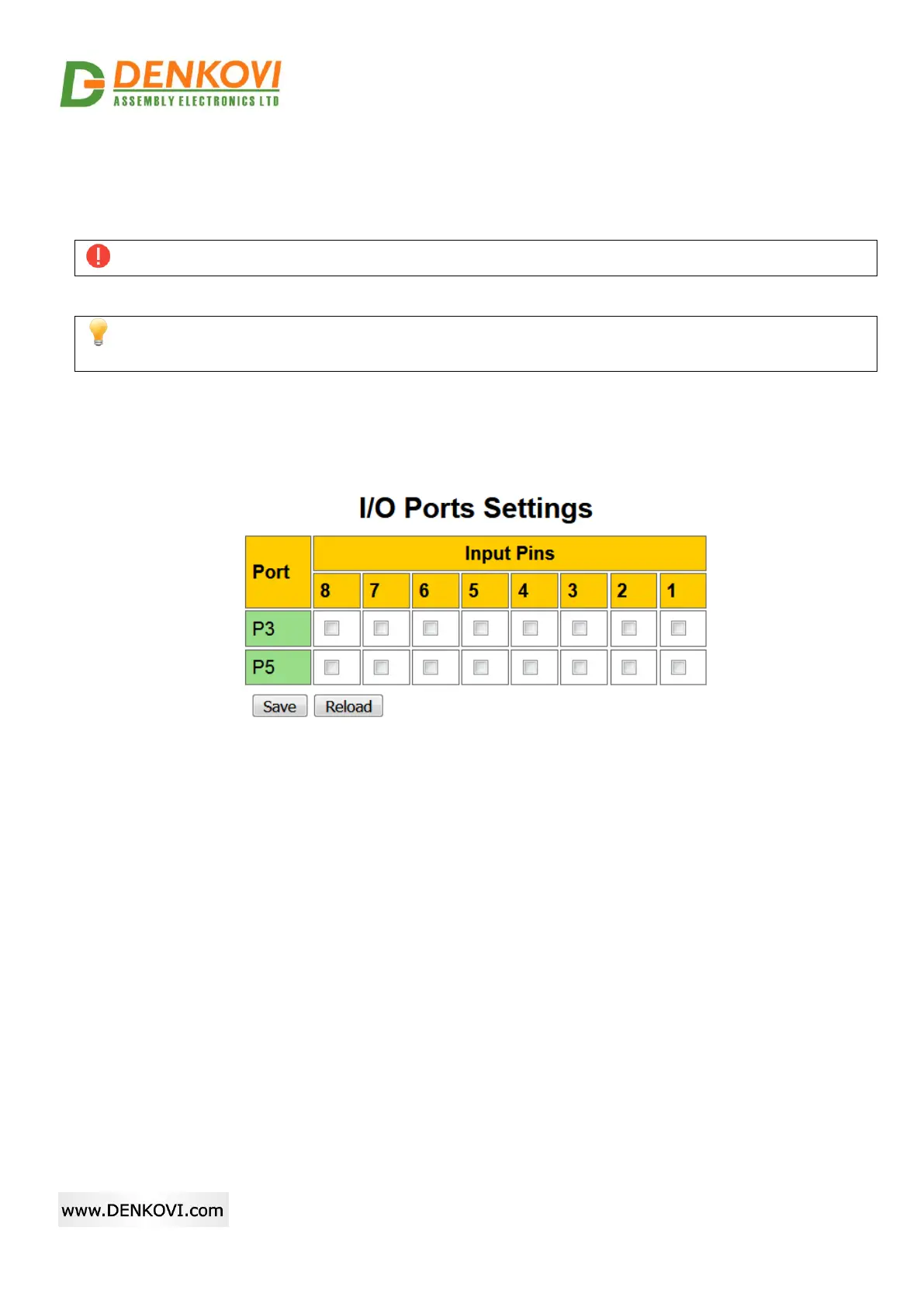

Figure 6.9. I/O Settings
When Input is selected, that means this pin is an input, otherwise it is configured as output.
SNMP: Change its bit in cfgP3Dir.0, cfgP5Dir.0 (1=Out, 0=In)
