DAEnetIP2 v2 User Manual
21 Apr 2020
6.10. ICMP Monitoring
DAEnetIP2 v2 supports two-way (incoming/outgoing) mode for monitoring via receiving/sending
ICMP echo request and ICMP echo reply packets. With this function, the DAEnetIP2 v2 module
can be used as a device for active monitoring of networks and networks devices. The DAEnetIP2
v2 module performs also restart pulse if there is not answer.

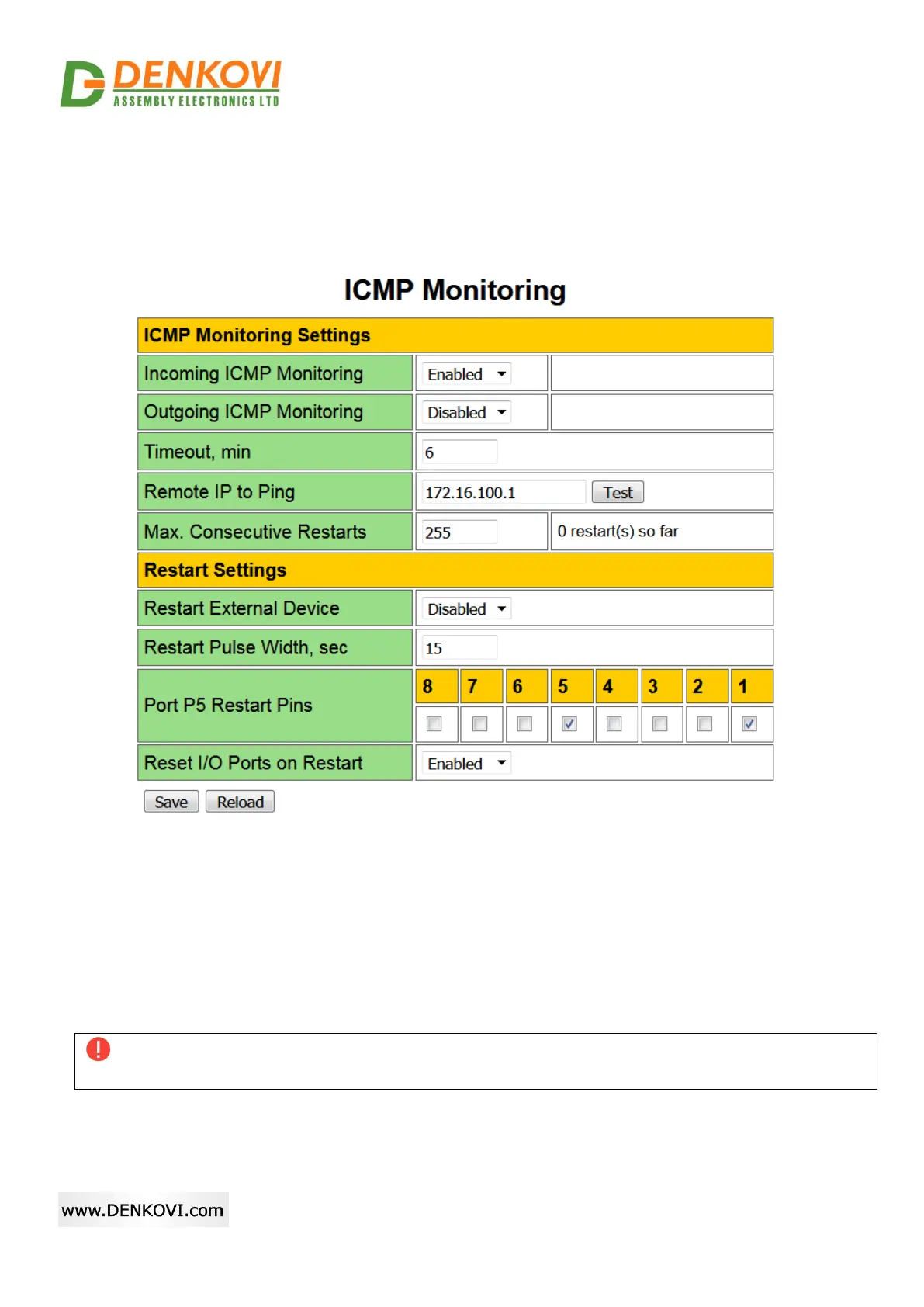

Figure 6.12. ICMP Monitoring
6.10.1. ICMP Monitoring Settings
Incoming ICMP Monitoring - when the incoming ICMP monitoring mode is enabled, the
DAEnetIP2 v2 module expects ping in the given timeout;
SNMP: Changing its bit in cfgMode.0
If there is very big traffic in the network, it is possible the incoming ping to be not received. That is
why it must be sent 5-10 ping requests.
Outgoing ICMP Monitoring - during outgoing monitoring the DAEnetIP2 v2 module
generates ping to the given IP address and expects answer within the given timeframe;
SNMP: cfgMonitorIP.0
