6.11. I/O Ports

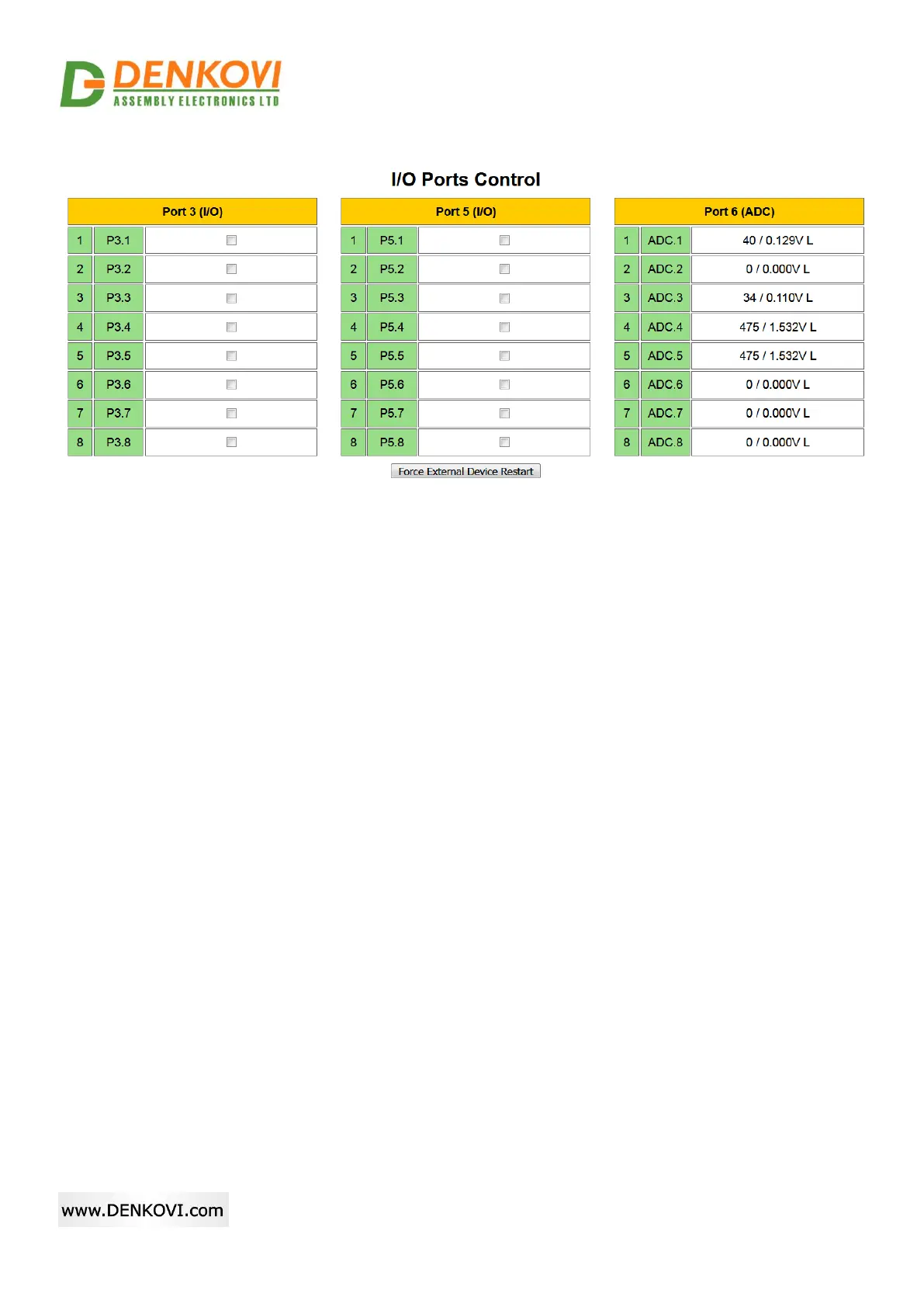

Figure 6.13. I/O Ports Control
P3 and P5 are configurable digital I/O port (0-3.3VDC). It is possible to be configured by the
user for its own purposes - digital inputs or outputs.
P6 is an 8-channel 10-bit analog input port.
