DAEnetIP2 v2 User Manual

21 Apr 2020

- 39 -

5. Connect the GND wire of the flat ribbon cable into the GND screw terminal of the relay board.

For example bellow it is shown 8 channel relay board. The same is for the rest relay boards.

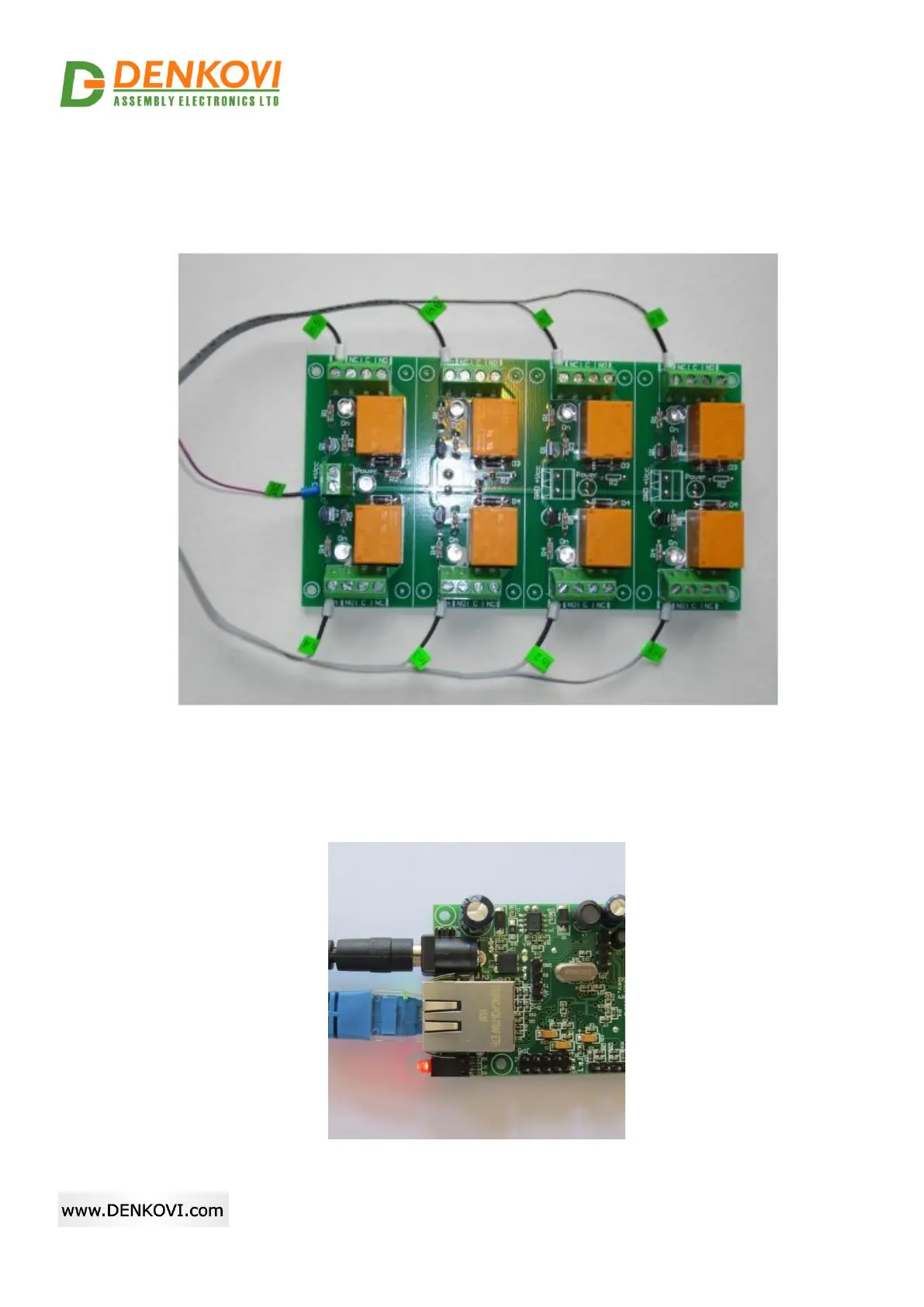

Figure 12.8. Connecting the GND wire to the relay board

6. Connecting power supply

Figure 12.9. Plug the power supply jack into DAEnetIP2 v2
