3.3. Internet/Ethernet 2 Channel relay board. The relay board is connected to P5.7 and P5.8

pins.

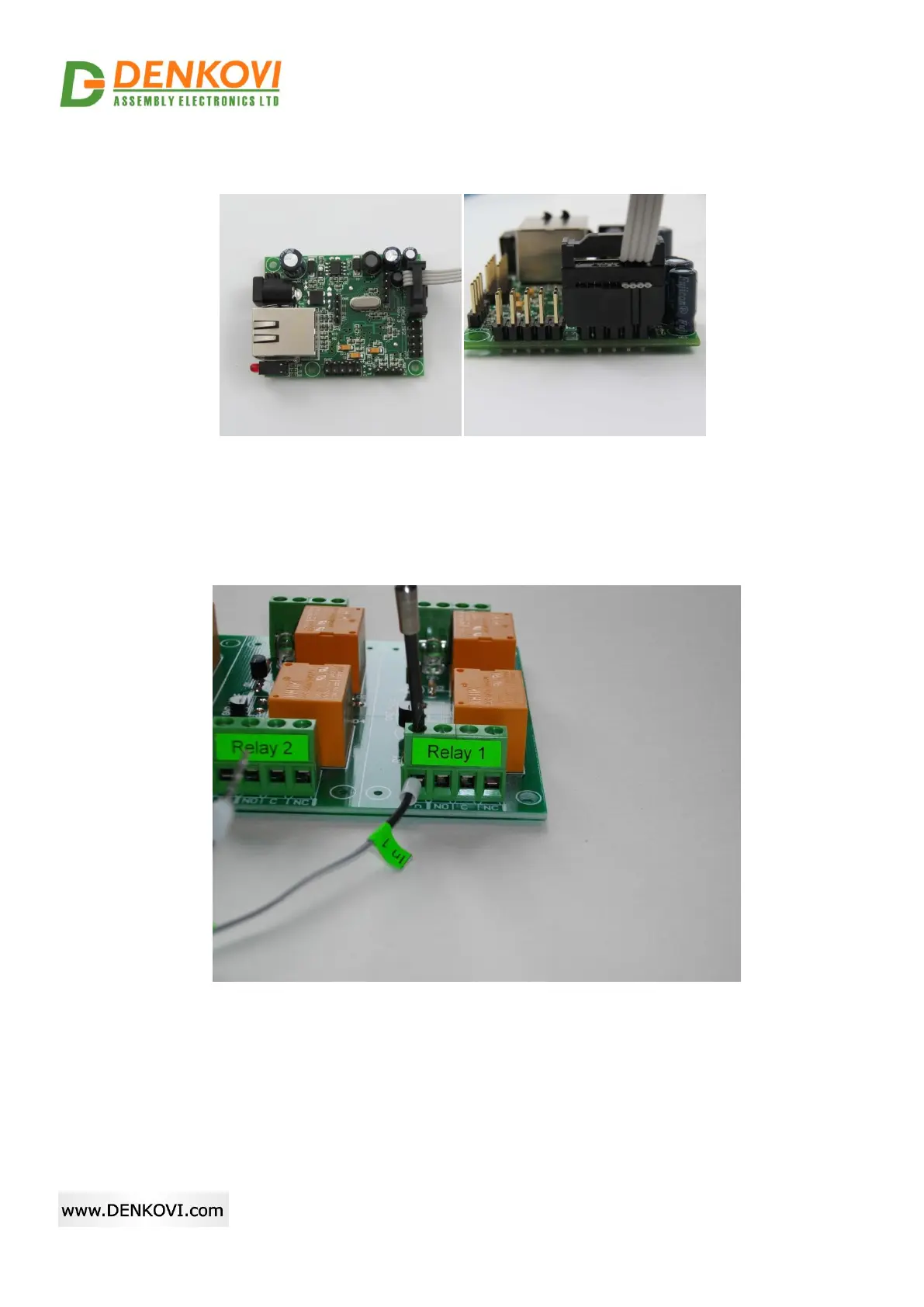

Figure 12.6. Connecting cable for 2 channel relay board

4. Connect each "In" labeled wire into the referred screw terminal of the relay board. For example

"In 1" wire goes into Relay 1 In screw terminal, "In 2" wire goes into Relay 2 screw terminal and

so on.

Figure 12.7. Connecting "In" wires into the screw terminals
