General Adjustments

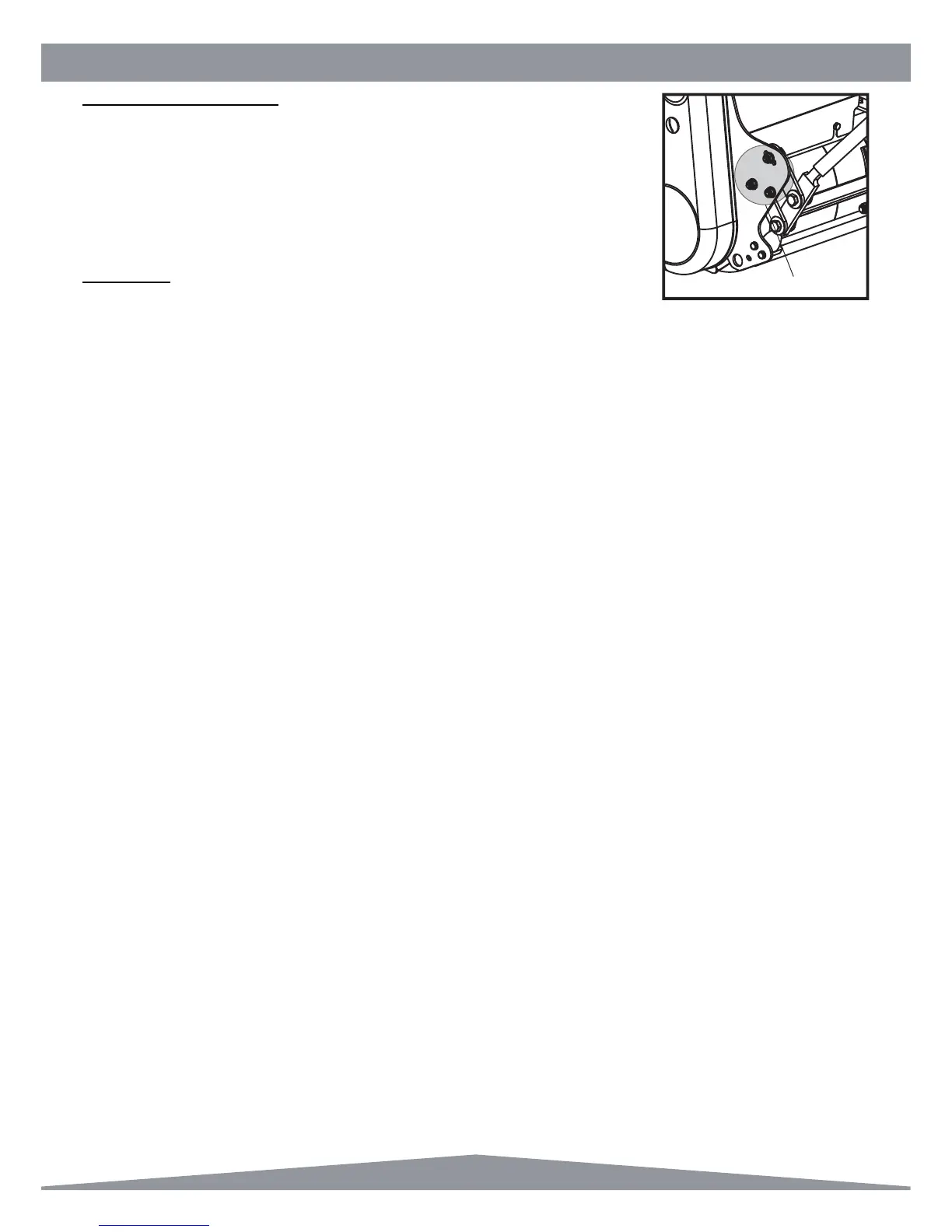

HANDLEBAR ADJUSTMENT
The height of the Handle Bars can be adjusted to suit various operators. Follow the
below instructions:-
1. Remove Bolt (Item 1) on both sides of the machine.
2. Select the require position out of the 3 available.
3. Replace the Bolt on both sides of the machine.
GRASS BOX
If using the grass box, place the two locating tabs (projecting from the grass box support
plates) into the slots on the machine side plate. Lower the front of the box until the box support plate’s rest on the front
cross bar of the machine. Ensure both box support plates are properly located before proceeding.
Always disengage the cassette drive before removing the grass box for emptying or access by reducing the engine revs
to tick over. Wait for the cutter to stop before removing.
Always keep fi ngers away from the cassette when the engine is running. Stop the machine before making any
adjustments.
Hold the grass box fi rmly on the lip of the aperture and place the other hand in the handle on the front edge of the box.
