23
FT Range SP20001_REV_2

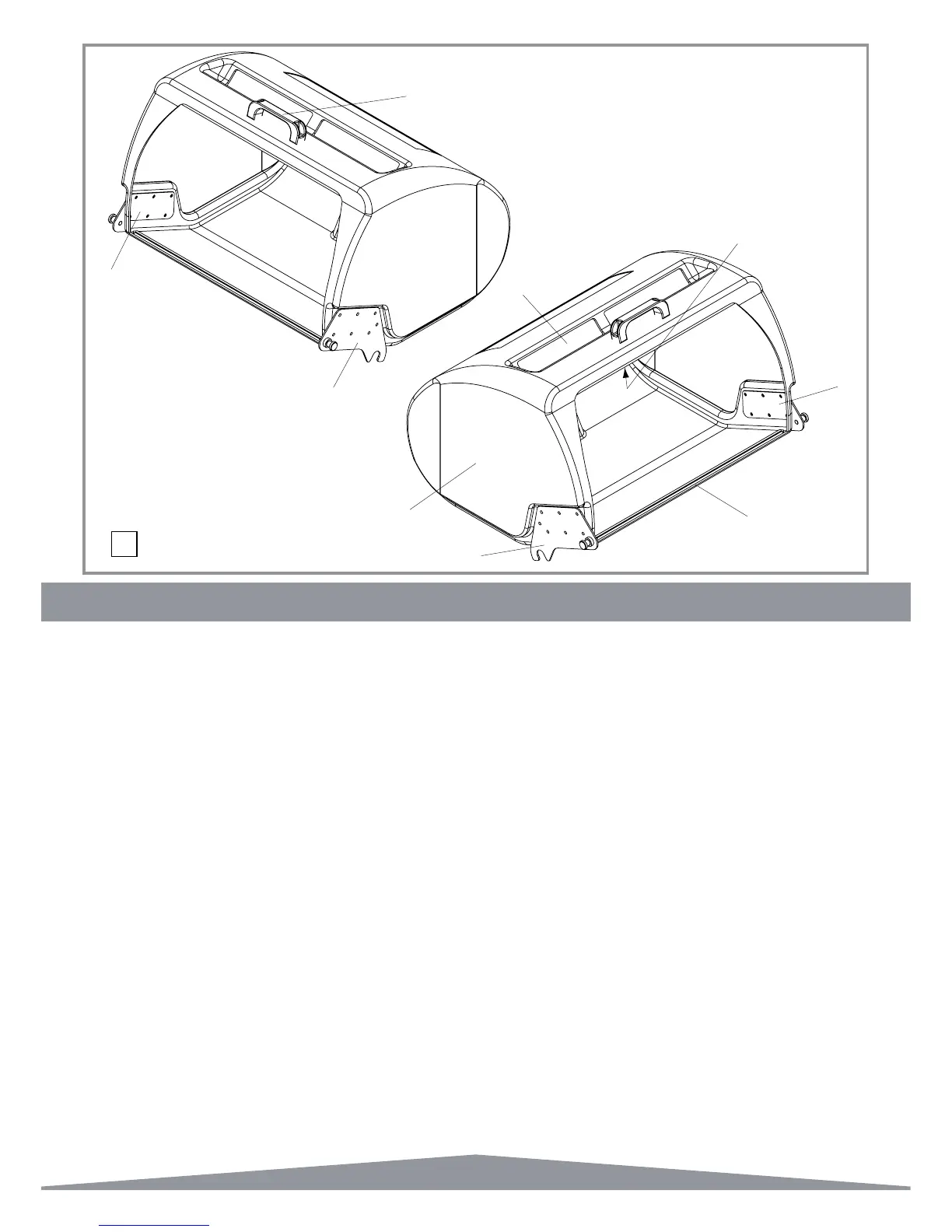

4.01 Grassbox - Main Assembly
Item No. Part No. Description Quantity
1 J179237 FT430 Grassbox Moulding 1
1 J209237 FT510 Grassbox Moulding 1
1 J179237 FT610 Grassbox Moulding 1
2 J209062 Mesh (FT510) 1
2 J249062 Mesh (FT610) 1
3 J17257 17” Grassbox Edging Strip 1
3 J209063 20” Grassbox Edging Strip 1
3 J249063 24” Grassbox Edging Strip 1
4 J209064 Handle Plate Grass Box 1
5 J209222 LH Grassbox Wing 1
6 J209224 RH Grassbox Wing 1
7 J209243 Handle Grassbox 1
8 J209060 Grassbox Support Plate 2
9 800008 17” Grassbox Complete 1
9 800017 20” Grassbox Complete 1
9 800042 24” Grassbox Complete 1
Not Shown
- SP04002 Screw M6 x 16 Slotted (To fi t Item 5 & 6) 8
- SP02004 Nut M6 Nyloc (To fi t Item 5 & 6) 8
- SP01008 Hex Set Screw M6 x 16 (To fi t Item 7) 2
- SP03007 Washer M6 x 20 (To fi t Item 7) 2
5
1
3
8
2
4
6
8
7
9
