Dennis FT 430 - Page 22

22
FT Range SP20001_REV_2

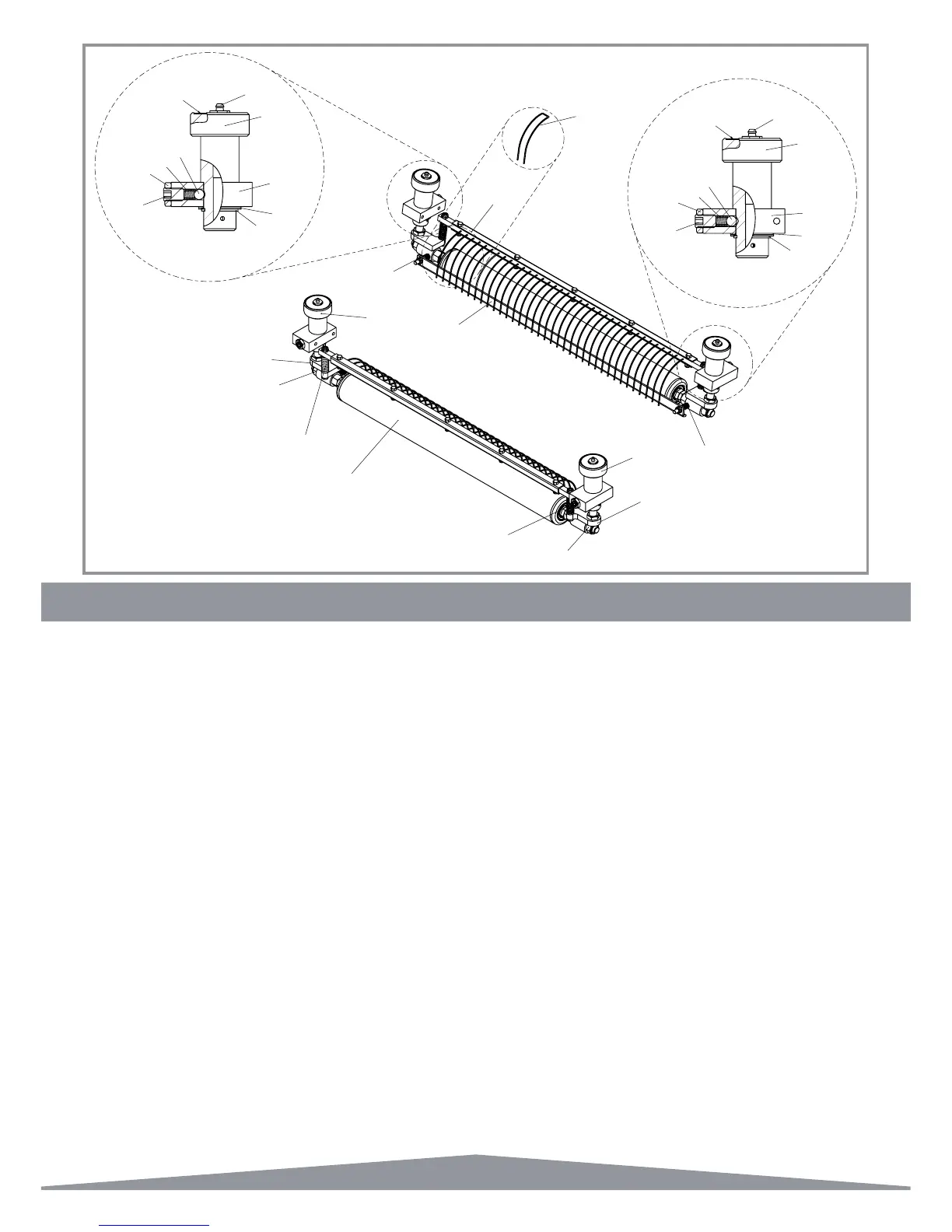

3.01 Front Roller - Main Assembly
Item No. Part No. Description Quantity
1 800002 Front Roller Assy 17” 1
1 800502 Front Roller Assy 20” 1
1 800503 Front Roller Assy 24” 1
2 J20522 End Block RH 1
3 J20521 End Block LH 1
4 800149 Click Height Adjuster RH 1
5 800148 Click Height Adjuster LH 1
6 800182 Comb Bar Sub Assy 17” 1
6 800180 Comb Bar Sub Assy 20” 1
6 800181 Comb Bar Sub Assy 24” 1
7 J20510 Spring Comb Bar 2
8 J17250 Front Roller Scraper Bar 17” 1
8 J20250 Front Roller Scraper Bar 20” 1
8 J24250 Front Roller Scraper Bar 24” 1
9 J20505 Spring Scraper 2
10 SP02010 Nut M12 Nyloc 2
11 SP02004 Nut M6 Nyloc 4
12 J20517 Ht. Adjuster Block 1
13 J20518 Height Adjuster Knob 1
14 228092 Shim Id 25.8 x 1 Thk 2
15 J20519 Decal Height Of Cut 1
16 J20528 Grease Nipple 1/4” Bsp 1
17 J20525 Steel Ball 8mm 1
18 J20526 Spring 1
19 SP02013 Nut M10 Lock (Thin) 1
20 SP01018 Grub Screw M10 x 16 1
21 J20527 Circlip D1460 - 25 1
22 J20509 Comb Tine AR
Not Shown
- SP01016 Button Head Screw M6 x 12 4
6
3
7
5
1
7
10
8
2
4
11
10
10
15
16
13
20
19
18
21
14
12
17
19
18
17
21
14
12
15
13
16
20
22
