FT Range SP20001_REV_2

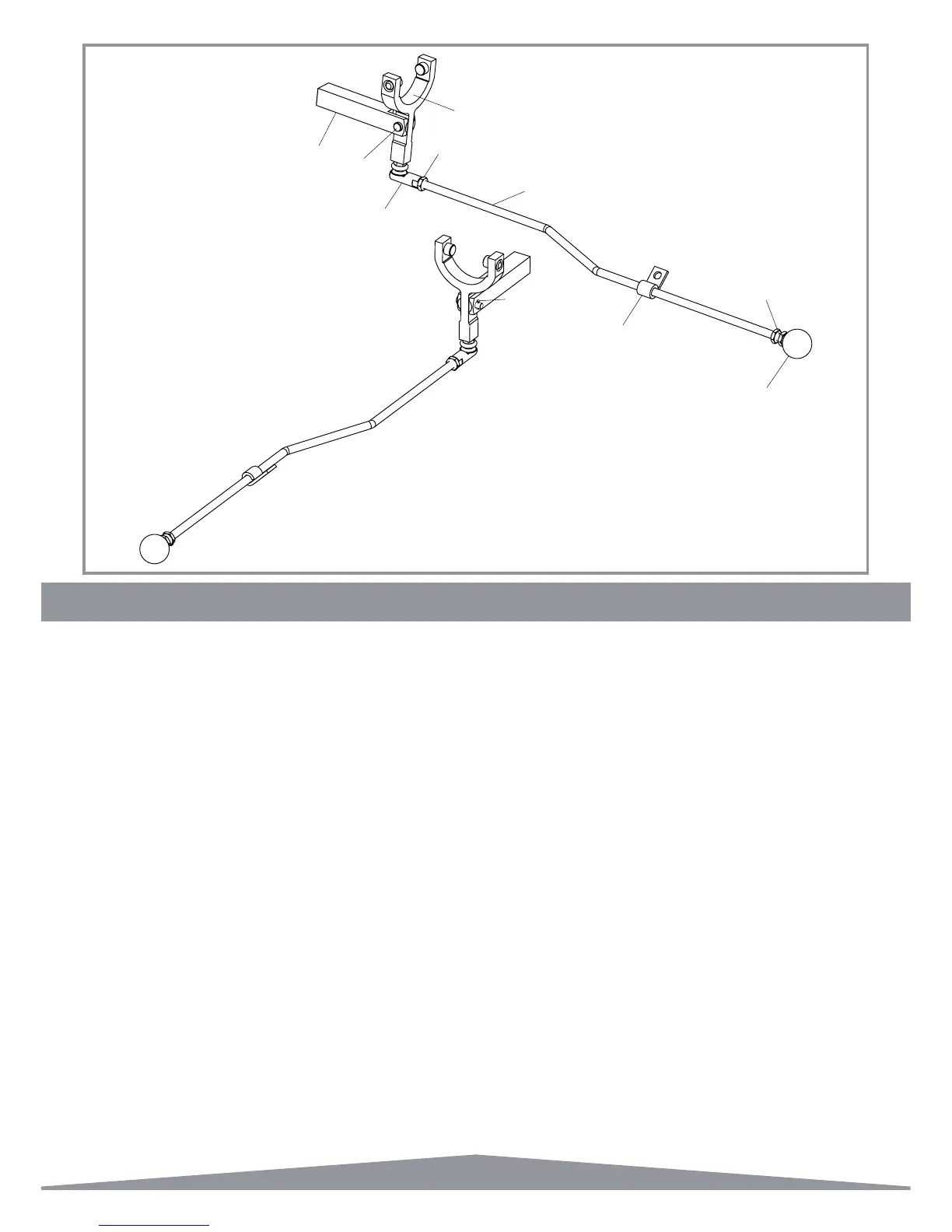

2.01 Cutter Engagement - Main Assembly
Item No. Part Number Description Quantity
1 J209230 Dog Clutch Fork Assy. 1
2 J179231 17” Clutch Control Rod 1
2 J209231 20” Clutch Control Rod 1
2 J249231 24” Clutch Control Rod 1
3 J20017 Knob - Red 1
4 J209024 Nut 5/16 BSF Lock (Thin) 2
5 J209026 Nut 5/16 UNF Lock (Thin) 1
6 J209019 Rod End 1
7 J209232 Bracket Control Rod 1
8 J209226 Clutch Fork Pivot Mounting 1
9 J209021 Split Pin 1/16” x 1/2” 1
10 J209020 Pin Clevis 1
8
10
9
2
6
1
5
3
4
7
To Next Page
