Dennis FT 430 - Page 25

25
FT Range SP20001_REV_2

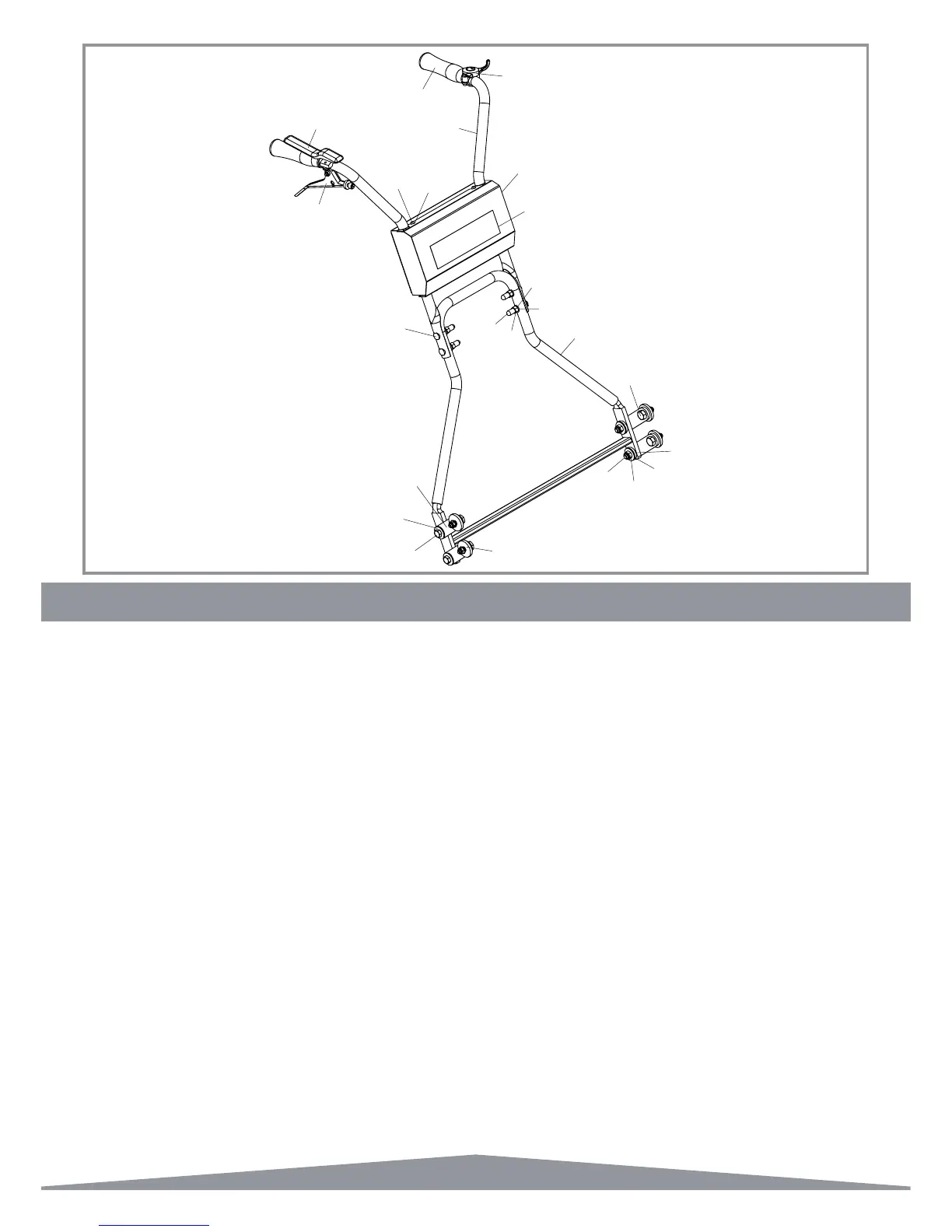

6.01 Handle - Main Assembly
Item No. Part No. Description Quantity
1 SP04001 Screw M5 x 16 Slotted 4
2 SP03009 Washer M5 Form A 4
3 228094 End Tip 5/16” 4
4 SP02005 Nut M8 STD 4
5 SP03004 Washer M8 Toothed 3
6 SP03004 Washer M8 Toothed 1
7 SP03008 Washer M8 Form A 8
8 J20109 Brake Band Lever 1
8* J20110 Brake Band Lever Grip 1
9 J20122 Deadmans Handle 1
10 J20108 Throttle Control Lever 1
11 J20107 Handle Grip Rubber 2
12 230013 Console Cover (No Switch) 1
13 SP02006 Nut M8 Nyloc 4
14 SP02008 Nut M10 Nyloc 4
15 228093 Bolt Saddle M8 x 43 4
16 SP01020 Hex Set Screw M10 x 40 4
17 SP03018 Washer M10 Form G 8
18 229724 Arm Pivot Bush 4
19 229725 Pivot Arm Lower Handle 4
20 229726 Bush Handle Pivot 4
21 229736 Pivot Bolt 4
22 B32902 Decal Dennis 1
23 230035 Handle Lower 17” W.A. 1
23 230020 Handle Lower 20” W.A. 1
23 230030 Handle Lower 24” W.A. 1
24 230040 Handle Upper W.A. 1
Not Shown
- J20112 Throttle Cable (Honds MKII & Kubota MKI) 1
- J20113 Brake Band Cable 1
- J20123 Electric Loom (Deadmans) 1
15
3
4
5
7
23
18
16
17
19
16
21
14
17
20
101010
9
8
1
2
11
24
10
12
22
