Dennis FT 430 - Page 26

26
FT Range SP20001_REV_2

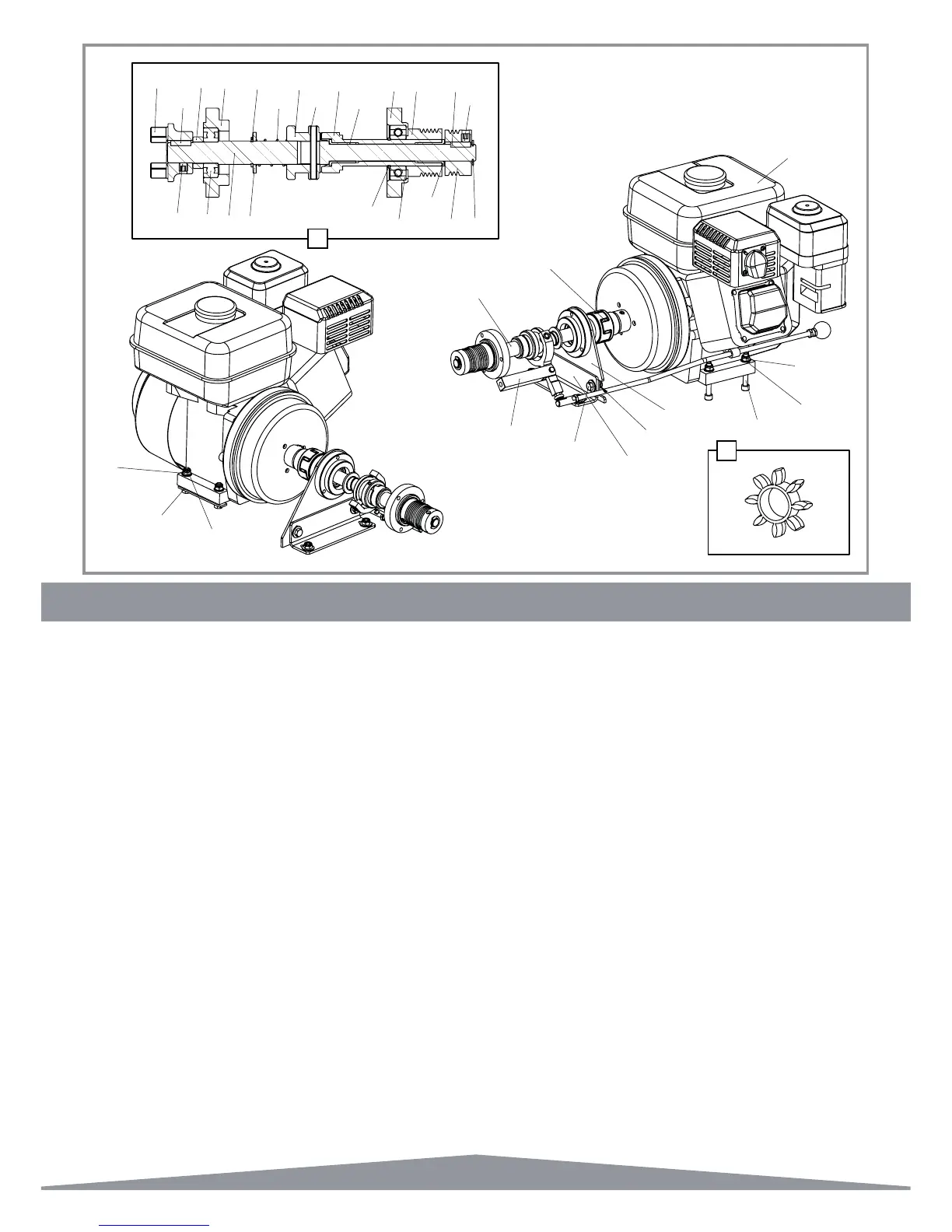

7.01 Engine & Drive Kit - Main Assembly
Item No. Part No. Description Quantity
1 228103 Coupling Element 1
2 230004 Support Bracket 1
3 See 2.01 Cutter Engagment Assy (FT430) 1
3 See 2.01 Cutter Engagment Assy (FT510) 1
3 See 2.01 Cutter Engagment Assy (FT610) 1
4 800007 17” Top Drive Assembly 1
4 800016 20” Top Drive Assembly 1
4 800041 24” Top Drive Assembly 1
5 800024 Engine Assembly 1
6 J209050 Fixing Plate Assy 1
7 J209053 Support Plate 1
8 SP01009 Hex Set Screw M8 x 20 2
9 SP01026 Cap Head M8 x 60 2
10 SP02006 Nut M8 Nyloc 8
11 SP03008 Washer M8 Form A 4
12 SP03015 Washer M8 Form C 6
13 J179240 Top Drive Shaft 17” 1
13 J209240 Top Drive Shaft 20” 1
13 J249240 Top Drive Shaft 24” 1
14 228011 Coupling Half (3/4”) 1
15 J20051 Bearing Housing (6204) (FT510 & 610) 1
16 J209039 Bush Flanged 2
17 J209200 3 Groove Top Drive Pulley 1
18 J209202 5 Groove Top Drive Pulley 1
19 J209212 Inner Dog Tube 1
19* 800217 Inner Dog Tube c/w Bushes 1
20 J209214 Sliding Dog 1
21 J209241 Bearing Spacer 1
22 J209246 Top Drive Spring 1
23 62662 Bearing 6205-2RS 3 1
24 J20052 Bearing 6204-2RS 3 1
25 J20467 Grub Screw M8 x 8 3
26 J209104 Pin Spirol M6 x 50 1
27 J209030 Key 3/16” x 3/16” x 3/4” Rd End 2
28 J209029 Key 3/16” x 3/16” x 7/8” Rd End 1
Item No. Part No. Description Quantity
29 J209106 E Clip 16mm 1
30 228104 Circlip N1460-0087 1
31 228105 Circlip D1460-25 1
32 228106 Washer M22 Form A 1
33 J209245 Top Drive Bearing Housing (FT430) 1
33 J209211 Top Drive Bearing Housing (FT510 & 610) 1
Not Shown
- J209040 Bearing (6005) (FT430) 2
4
20
22
30
15
21
29
14
32
13
2425
10
6
11
5
10
11
9
7
12
2
8
3
1
31
23
16
17
29
25
27
18
33
16
19
26
4
1
