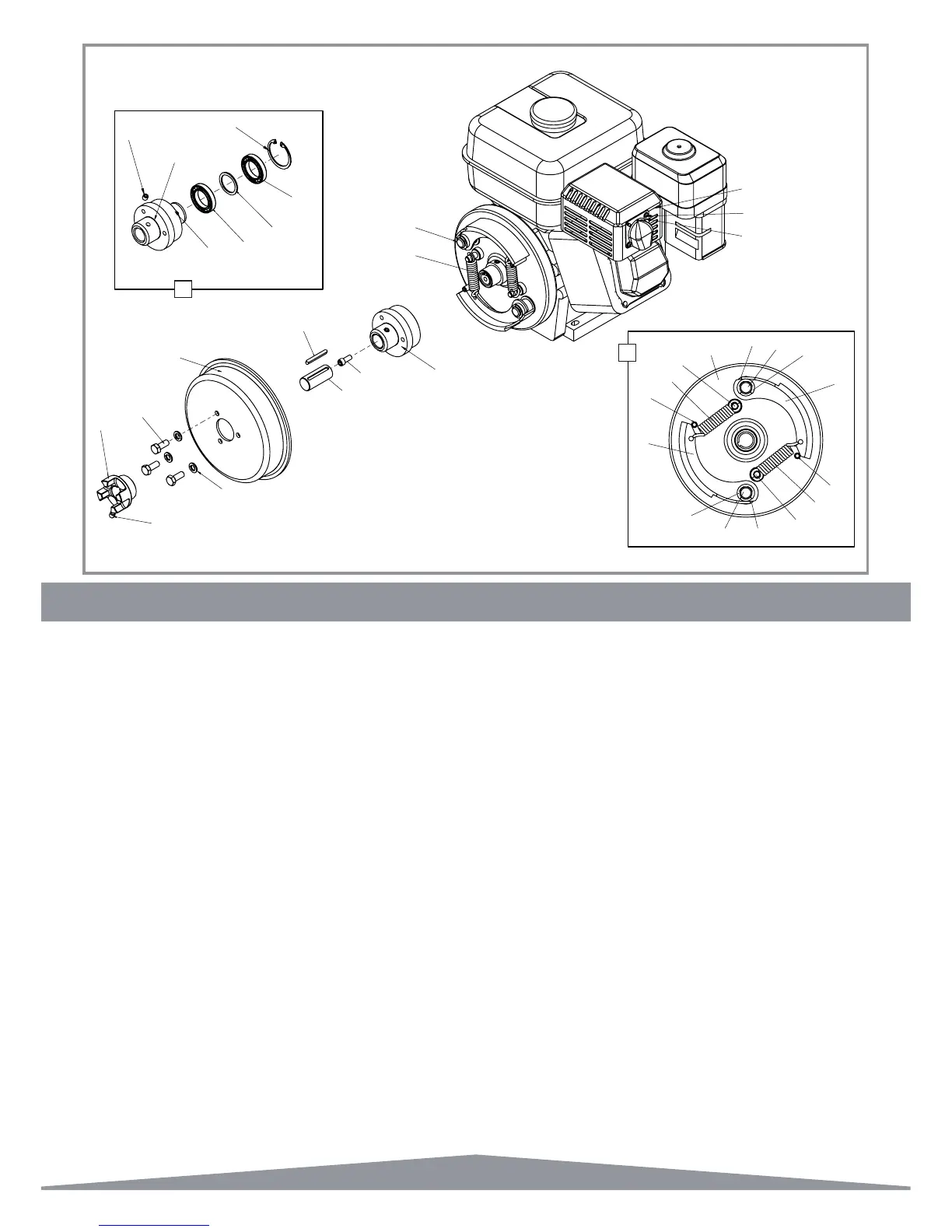

7.02 Engine & Drive Kit - Centrifugal Clutch
Item No. Part No. Description Quantity
1 229900 Engine (Honda GX120) 1
1 229901 Engine (Honda GX160) 1
2 800027 Flywheel Assembly 1
3 800026 Clutch Hub Assembly 1
4 J209233 Stub Shaft 1
5 228102 Coupling Shaft (7/8”) 1
6 J209025 Key (3/16” x 3/16” x 1 3/4”) 2
7 J20467 Grub Screw (M8 x 8) 3
8 J20367 Exhaust Defl ector 1
9 J20368 Exhaust Defl ector Screw (M4) 2
10 J209006 Circlip (47 M1308-0470) 1
11 J209247 Bearing 6906 2RS 2
12 J209248 Brg Spacer 1
13 J209249 Washer (9 x 35 x 3) 1
14 J209004 Bearing Hub Clutch 1
15 J209100 Flywheel 1
16 J209101 Clutch Shoe Pivot 2
17 J209102 Shoe Spring Anchor 2
18 J209011 Tension Spring 2
19 J209012 Washer M16 Form B 2
20 J209013 Brake Shoe 2
21 J209103 Pin Slotted (M8 x 50) 2
22 J209106 E Clip 16mm 2
23 J209007 Cap Screw 1
24 SP01009 Hex Set Screw M8 x 20 3
25 SP03029 Washer M8 Spring Lock 3
26 J209017 Clutch Drum 1
NOTE
For Throttle Cable, see Section 6.01
