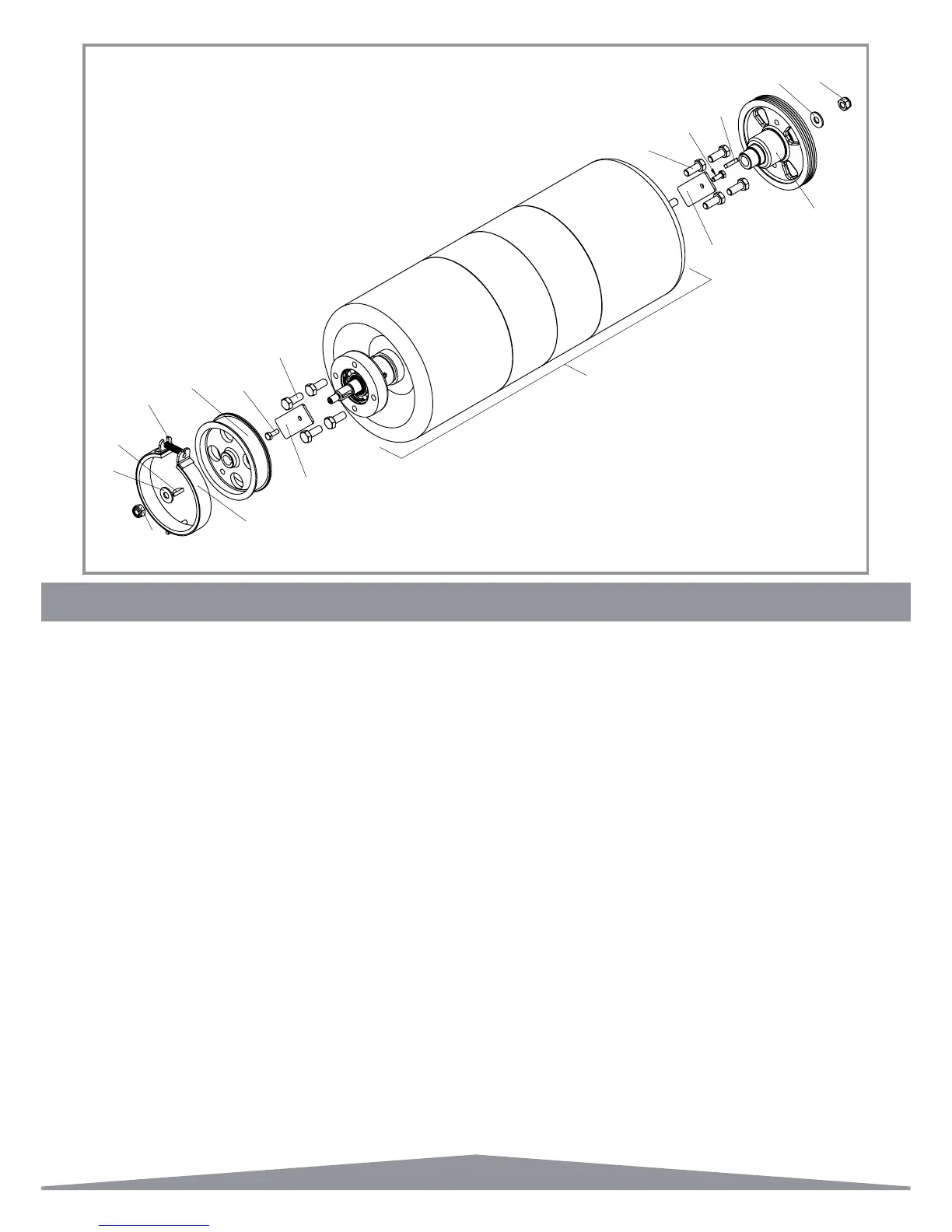

8.01 Rear Roller - Main Assembly
Item No. Description Part Number Quantity
1 See 8.02 Rear Roller Assy 1
2 J20119 Spring Scraper Brake Band 1
3 J20256 Roller Slot Cover Plate 2
4 J20461 Brake Drum 1
5 J20463 Brake Band Assy 1
6 J209201 Rear Roller Driven Pulley 1
7 SP03016 Washer M10 Form C 2
8 SP02008 Nut M10 Nyloc 2
9 J20462 Key Woodruff (606) 3/16” x 3/4” 1
10 J20457 Key 3/16” x 3/16” x 1” Rd End 1
11 SP01008 Hex Set Screw M6 x 16 2
12 SP01035 Hex Set Screw M10 x 25 8
NOTE
For Brake Band Cable, see Section 6.01
