Dennis FT 430 - Page 29

29
FT Range SP20001_REV_2

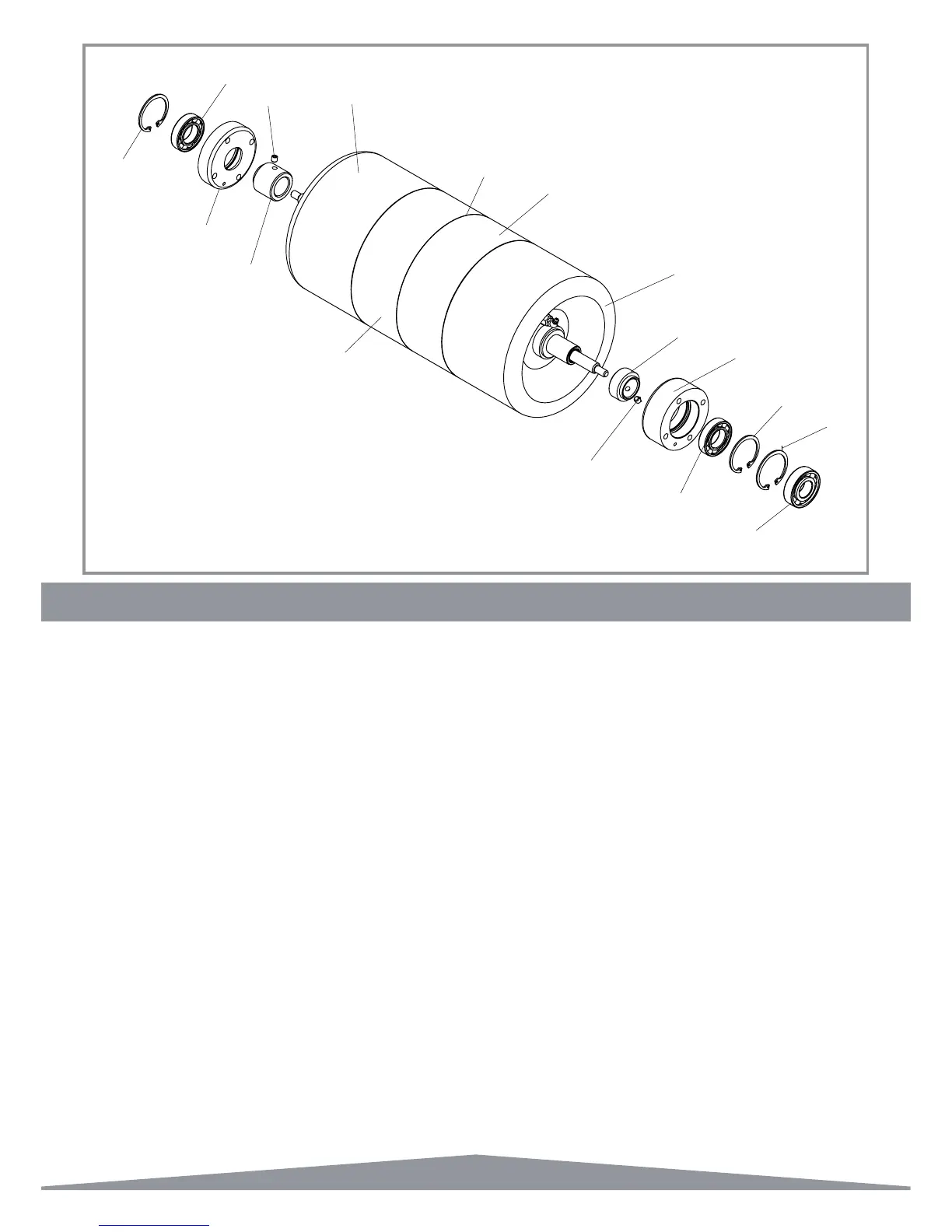

8.02 Rear Roller - Roller Assembly
Item No. Description Part Number Quantity
1 See 8.05 RH Differential Assy
2 See 8.04 LH Differential Assy
3 See 8.03 Outer Roller Assy
4 See 8.03 Outer Roller Assy
5 J20477 LH Spacer Collar 1
6 J20450 LH Bearing Housing 1
7 J20454 Bearing R18 2RS 2
8 J20475 Circlip Internal 54 x 2 2
9 J20474 Circlip Internal 57 x 2 1
10 J20455 Bearing RLS8 2RS 1
11 J20467 Grub Screw M8 x 8 2
12 J20464 RH Spacer Collar 1
13 J20453 RH Bearing Housing 1
14 J20494 Gasket Rear Roller 1
2
1
3
10
9
8
7
6
5
11
12
4
11
7
8
13
14
