Dennis FT 430 - Page 31

31
FT Range SP20001_REV_2

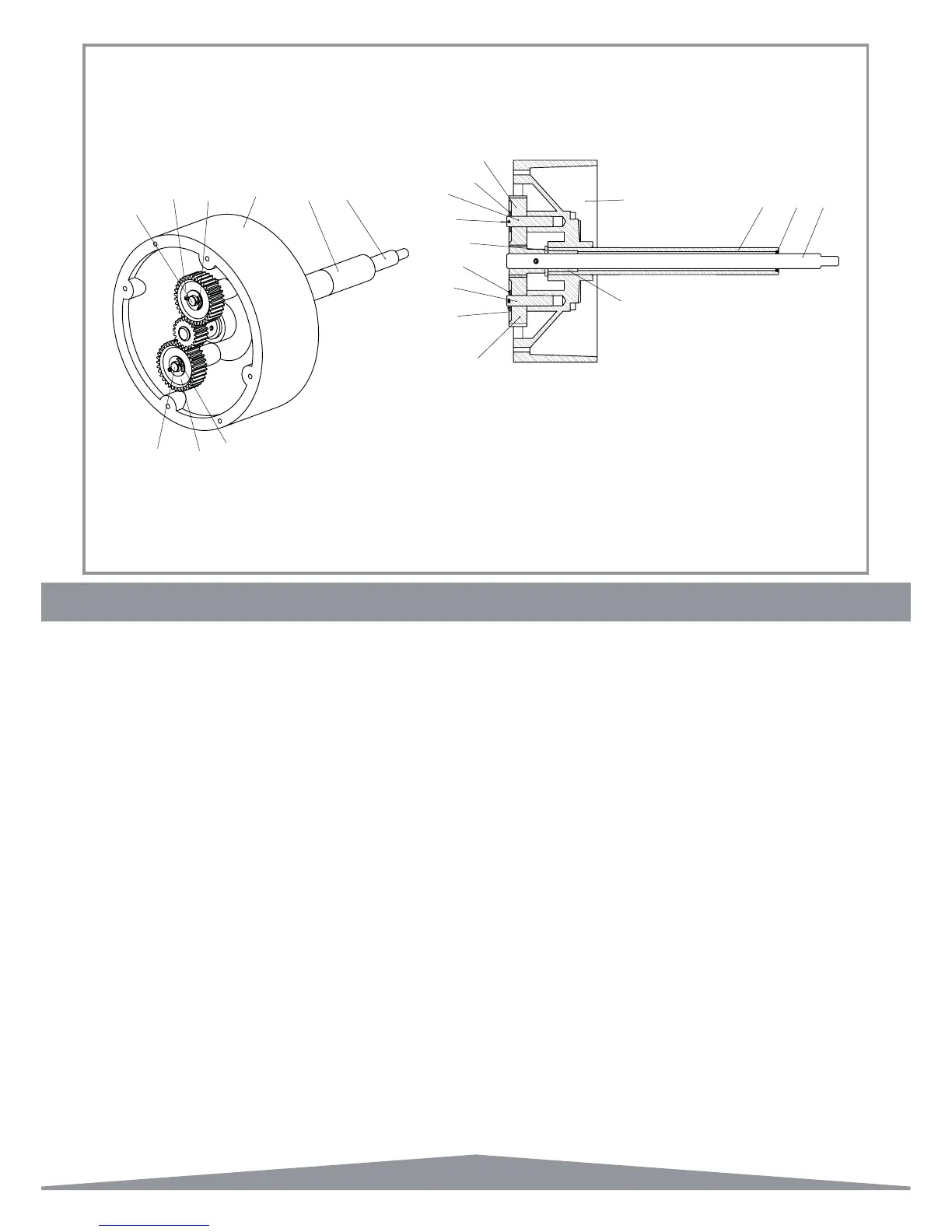

8.04 Rear Roller - LH Differential Assembly
Item No. Part No. Description Quantity
1 800005 Pinion Shaft Assy (FT430) 1
1 800014 Pinion Shaft Assy (FT510) 1
1 800039 Pinion Shaft Assy (FT610) 1
2 J20400 Planet Gear Case 1
3 J17401 17” Pinion Gear Case Tube 1
3 J20401 20” Pinion Gear Case Tube 1
3 J24401 24” Pinion Gear Case Tube 1
4 J20405 Planet Gear Pin 2
5 J20406 Split Pin 3/32” x 1” 2
6 J20407 Planet Gear (33t) 2
7 J20408 Washer Planet 7/16” 2
8 J20409 Pinion Washer 1
9 J20410 Pinion Gear Tube Bush 1
10 J20484 Seal Single Lip W087.62.12 1
Not Shown
- J20430 Caphead M6 x 30 (For Assy with 8.05) 4
- J20494 Gasket Rear Roller (For Assy with 8.05) 1
